Specification
|
Fast Smart Modular Mounter |
|||||
|---|---|---|---|---|---|
|
Model |
RS-1R |
||||
|
Conveyor specification |
standard |
150mm conveyor extensions, |
250mm conveyor extensions, |
||
|
Board size |
minimum |
50×50㎜ |
|||
|
maximum |
1 buffer |
650×370 ㎜ (Single clamping) |
|||
|
950×370 ㎜ (double clamping) |
1,100×370 ㎜ (double clamping) |
1,200×370 ㎜ (double clamping) |
|||
|
3 buffers |
360×370㎜ |
500×370㎜ |
600×370㎜ |
||
|
Component height |
25㎜ |
||||
|
Component size |
0201*1 ～□74 ㎜ /150×50 ㎜ |
||||
|
Placement speed |
Optimum |
47,000CPH |
|||
|
IPC9850 |
31,000CPH |
||||
|
Placement accuracy |
±35μｍ(Cpk≧1) |
||||
|
Vision recognition |
±30μｍ |
||||
|
Feeder inputs |
max.112*2 |
||||

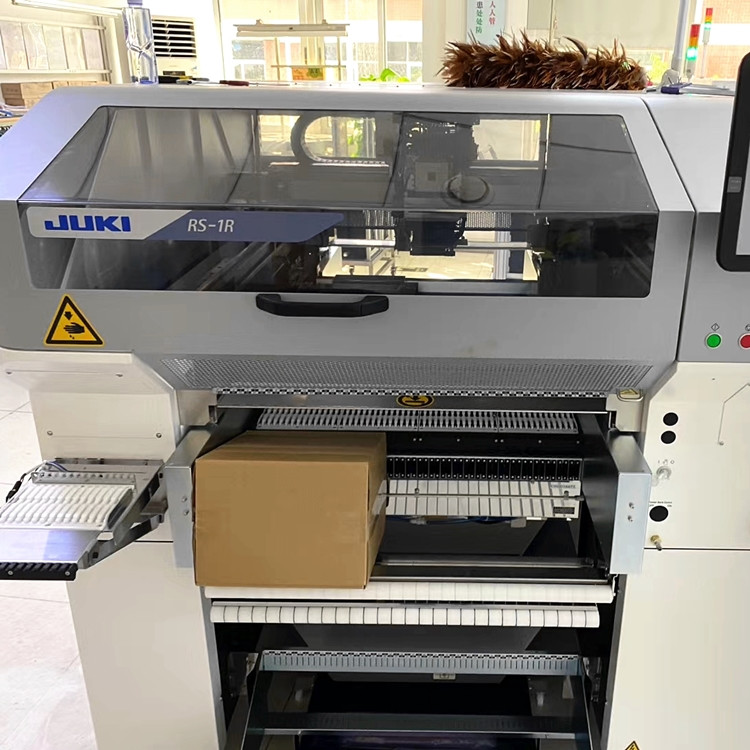

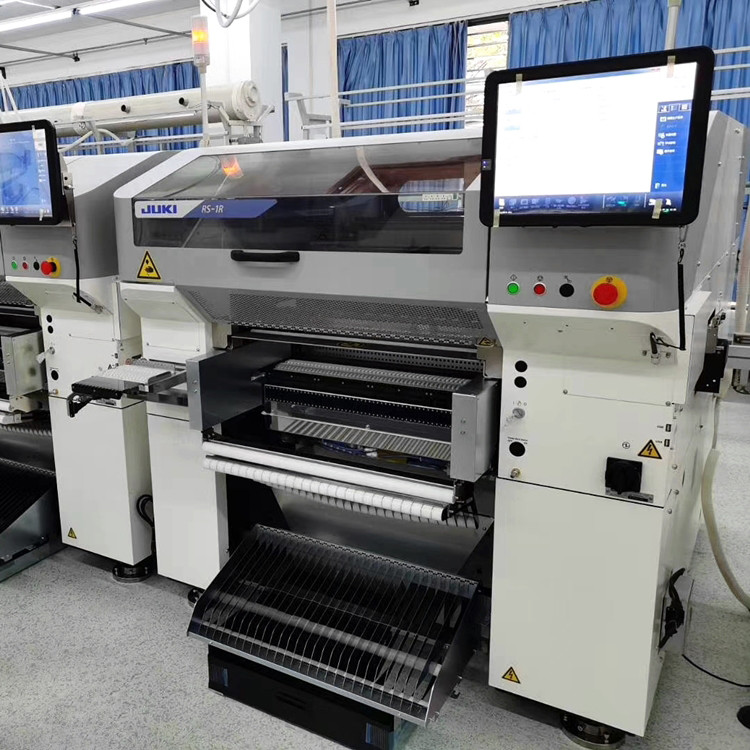

Photo Show
Packing
