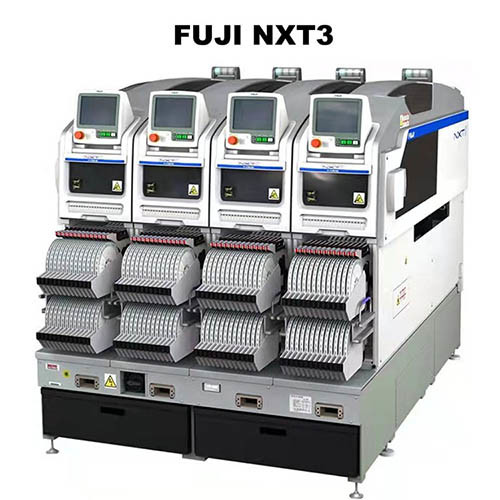

Fuji Smt Placement Machines Pick And Place Fuji Nxt Iii Smt Machine Price
FEATURES
The GUI of the original NXT was widely praised for making use of intuitive and easy-to-understand pictograms instead of relying on language-based instructions.
This interface is now combined with a touchscreen panel to make operation even easier. This reduces the number of button pushes required and makes selecting commands easier, as well as improving quality by reducing the chance of performing the wrong command.
Many of the main units from the NXT II such as placing heads, nozzle stations, feeders, tray units, and feeder pallet exchange units can be used on the NXT III without any modifications.
SPECIFICATIONS
| M3 III | M6 III | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable PCB size (LxW) | 48 x 48 mm to 305 x 610 mm (single conveyor) 48 x 48 mm to 305 x 510 mm (double conveyor/single) 48 x 48 mm to 305 x 280 mm (double conveyor/dual) |
48 x 48 mm to 610 x 610 mm (single conveyor) 48 x 48 mm to 610 x 510 mm (double conveyor/single) 48 x 48 mm to 610 x 280 mm (double conveyor/dual) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Part types | Up to 20 types of parts (calculated using 8 mm tape) | Up to 45 types of parts (calculated using 8 mm tape) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCB loading time | For double conveyor: 0 sec (continuous operation) For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Placement accuracy (Fiducial mark standard) * The placing accuracy is obtained from tests conducted by Fuji. |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Productivity * The throughput above is based on tests conducted at Fuji. |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported parts |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module width | 320 mm | 645 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine dimensions | L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III) W: 1900.2 mm, H: 1476 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Having experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

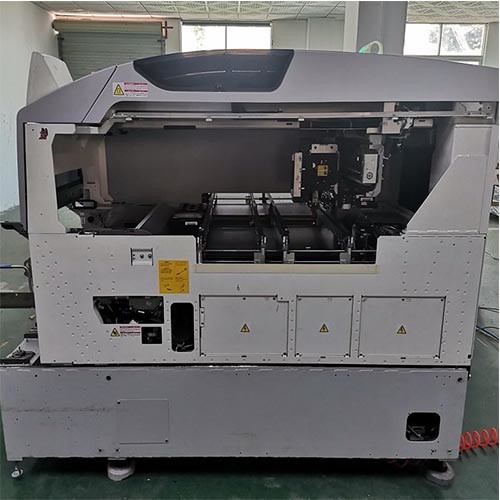

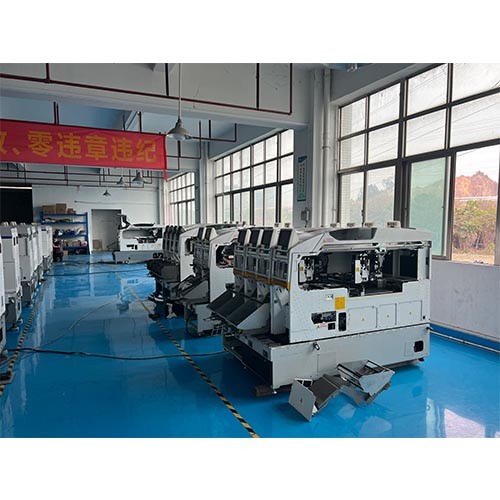

Photo Show:
