Used Juki FX-3RA SMT Pick And Place Machine Automatic High Speed Modular Mounter

MOQ:	1
Price:	Negotiable
Standard Packaging:	Wooden Case
Delivery Period:	In stock
Payment Method:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

Japan

Brand Name

Model Number

FX-3RA

Condition:

Original Used

Warranty:

3 Months

Application:

SMT Production Line

Quality:

100% Brand

Package:

Wooden Case

Placement Accuracy:

±0.05mm(±3σ)

Highlight:

Used SMT Pick And Place Machine Automatic

High Speed SMT Pick And Place Machine

Used Juki FX3

Product Description

Used Juki FX-3RA SMT Pick And Place Machine Automatic High Speed Modular Mounter

Features

Chip	90,000CPH (0.040Sec. / chip / Optimum) 66,000CPH (IPC9850)

0402mm(01005 inch) ~ 33.5mm×33.5mm
Laser recognition : ±0.05mm(±3σ)
On-the-fly centering using integrated laser
2 stations, 4 gantries, 4 placement heads, 24 nozzles
Linear servo motor XY drive with full closed-loop control
Holds up to 240 components
Electrical or mechanical feeder trolley

Specification

Item/Model		High-Speed Modular Mounter FX-3RAL	High-Speed Modular Mounter FX-3RAXL
Board size	L size(410x360mm)	yes	no
	L-Wide size(510x360mm)*1	yes	no
	XL size(610×560mm)	no	yes
	Applicability to long PWB*1	800×360mm	800×560mm
Component height	6mm	yes
Component size	Laser recognition	0402(01005) ~ 33.5mm×33.5mm
Placement speed (chip)	Optimum	0.040Sec. / chip(90,000CPH)*2
Placement speed (chip)	IPC9850	66,000CPH*2
Placement accuracy	Laser recognition	±0.05mm(±3σ)
Feeder inputs		Max.240 in case of 8mm tape (on a Electric double tape feeder)

*1 L-Wide size , Applicability to long PWB is optional.
*2 This speed does not apply to XL board size.

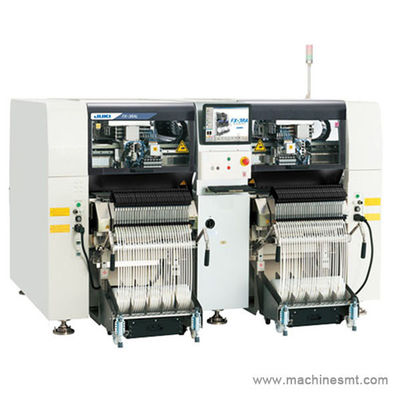

Used Juki FX-3RA SMT Pick And Place Machine Automatic High Speed Modular Mounter 0

Packaging

Used Juki FX-3RA SMT Pick And Place Machine Automatic High Speed Modular Mounter 1

Contact us

Company	Shenzhen Honreal Technology CO.,Ltd.
Address	No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel	+86755 2302 0279
Fax	+86 755 2330 6782
Zip code	518125
Skype/Whatsapp/Wechat	+8613715227009
Email:	Monica@szhonreal.com
