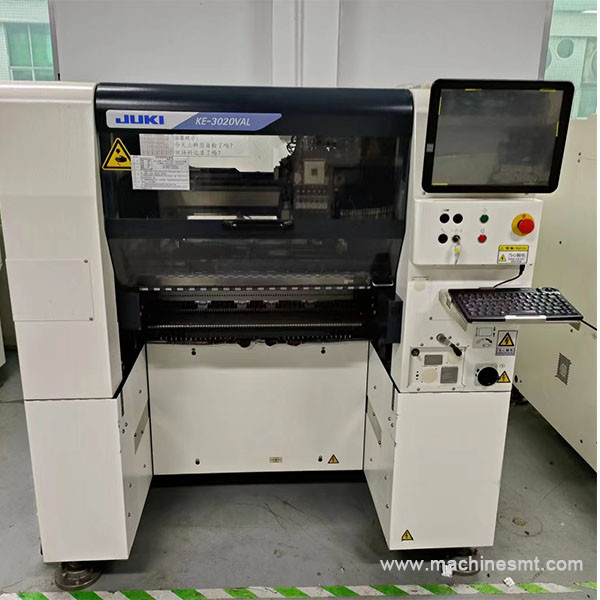

JUKI smt equipment High-Speed Flexible Mounter KE-3020VA
Features
Continued Evolution of the KE Series
|
Chip |
20,900CPH chip (Laser centering / Optimum) |
|---|---|
|
IC |
9,470CPH (Vision centering / MNVC) |
From 0402(01005) to 74mm square components or 50×150mm
KE-3020VA
One multi-nozzle laser head (6 nozzles) plus
one IC head with CDS sensor (1 nozzle)
The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
MNVC is standard
High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC)
High speed feeding of tray components (Option)
Longer sized PWB in X axis(option)
PoP placement(option)
| Fast Smart Modular Mounter | |||||
|---|---|---|---|---|---|
| Model | RS-1R | ||||
| Conveyor specification | standard | 150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ (Single clamping) | |||
| 950×370 ㎜ (double clamping) | 1,100×370 ㎜ (double clamping) | 1,200×370 ㎜ (double clamping) | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ(Cpk≧1) | ||||
| Vision recognition | ±30μｍ | ||||
| Feeder inputs | max.112*2 | ||||
