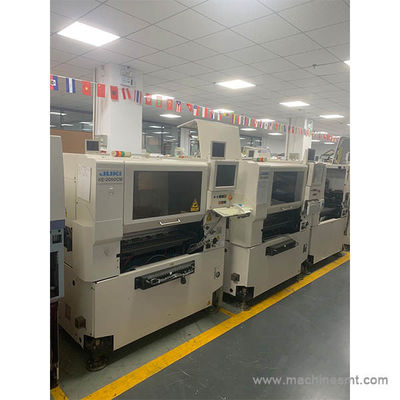

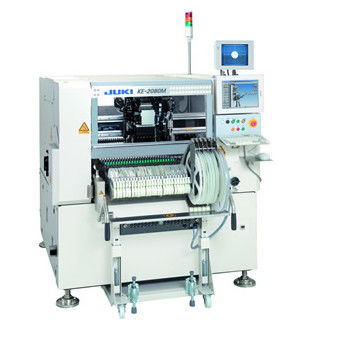

Juki 2000 FX Seies Used SMT Pick And Place Machine Flexible Mounter KE-2080
Features
The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form,
all at industry leading accuracy and speed.
Chip
20,200CPH(laser centering/Optimum)(0.178Sec./chip)
16,700CPH(laser centering/IPC9850)
IC
1,850CPH (vision centering / effective tact)
4,860CPH with MNVC option.
One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
From 0402 (01005) to 74mm square components or 50×150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
|
Board size |
M size (330×250mm) |
○ |
|
|---|---|---|---|
|
L size (410×360mm) |
○ |
||
|
L-Wide size(510×360mm) (option) |
○ |
||
|
E size (510×460mm)*1 |
○ |
||
|
Component size |
Laser recognition |
0402 (01005)～33.5mm |
|
|
Vision recognition |
Standard camera |
□3mm～□74mm or 50×150mm |
|
|
High-resolution camera (option) |
1.0×0.5mm*3～□48mm or 24×72mm |
||
|
Placement speed |
Chip |
Optimum |
0.178Sec./chip(20,200CPH) |
|
IPC9850 |
16,700CPH |
||
|
IC*4 |
1,850CPH |
||
|
|
|||
|
Placement accuracy |
Laser recognition |
±0.05mm(Cpk≧1) |
|
|
Vision recognition |
±0.03mm (±0.04mm when using MNVC) |
||
|
Feeder inputs |
Max. 80 on 8mm T/F*6 |
||
*1 Please ask for details on E size board.
*2 When using MNVC. (option)
*3 When using high-resolution camera. (option)
*4 Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.
(CPH=number of components placed for one hour)
*5 Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.
*6 Including matrix tray changer, max 110.
