Automatic SMT PCB Magazine Loader Unloader 6s Loading Time

1set
MOQ
USD 2600-3500 Per Set
Price
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Loading Time: Approx 6 Seconds
Magazine Change-over Time: Approx 30 Seconds
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1370×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Highlight:

SMT PCB Loader 4 Step Pitches

,

Magazine SMT PCB Loader

,

Automatic PCB Handling Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250
Document: PCB loader.pdf
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
Automatic SMT PCB Magazine Loader Unloader PCB Handling Equipment 4 Step Pitches
Key Specifications
Attribute Value
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 10L/minute
Product Overview
This automatic PCB loader/unloader efficiently transfers PCBs from magazines to SMT production lines with precision and reliability.
Key Features
  • Stable and reliable PLC control system
  • Optional Fuji buttons interface or touch panel for intuitive operation
  • Multiple sound and light alarm functions for operational safety
  • Compatible with standard magazines (3 magazines loaded simultaneously)
  • Adjustable lifting distance (10mm, 20mm, 30mm, 40mm options)
  • Integrated push board component eliminates need for separate PCB moving machine
  • Automatic counting function for production statistics
  • Optional SMEMA port for machine communication
Technical Parameters
Parameter Value
PCB thickness Min 0.6mm
Magazine capacity Transport up: 1pc, transport down: 1pc (customizable)
Step pitches select 1-4 (10mm step pitches)
Power supply 100-230V AC (customized) single phase, MAX 300V/A
Model Specifications
Model No PCB Size (L×W)mm Machine Size (L×W×H)mm Magazine Size (L×W×H)mm Weight
HR-250 (50x50)～(350x250) 1370×750×1200 355×320×563 110kg
HR-330 (50x50)～(455x330) 1550×830×1200 460×400×563 135kg
HR-390 (50x50)～(530x390) 1750×920×1200 535×460×570 155kg
HR-460 (50x50)～(530x460) 1750×990×1200 535×530×570 175kg

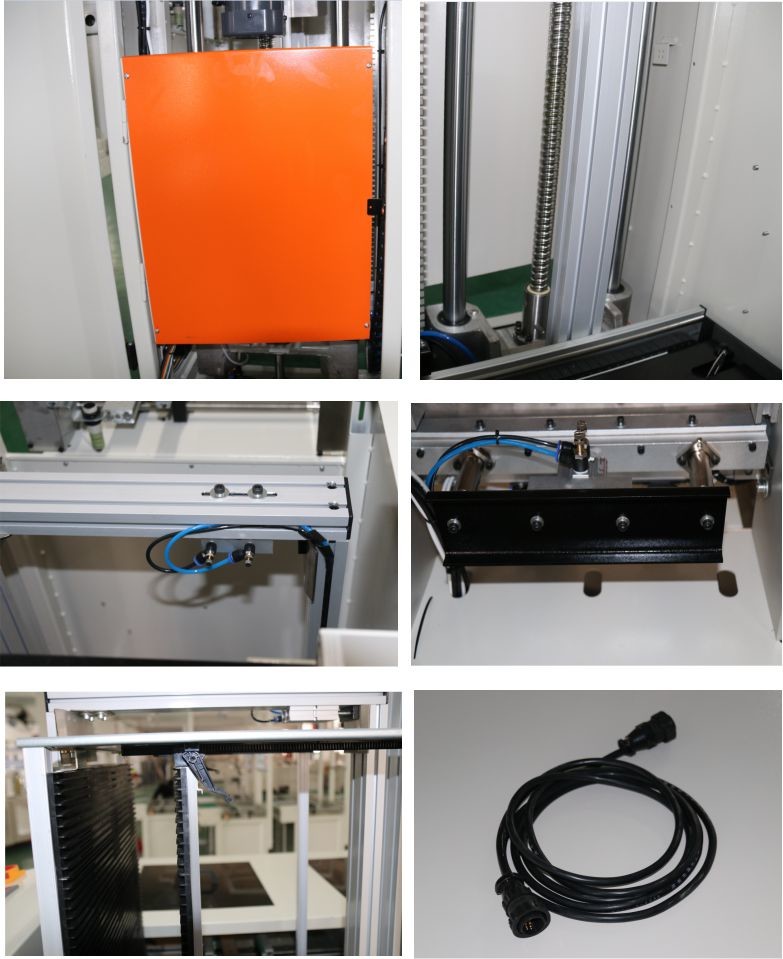

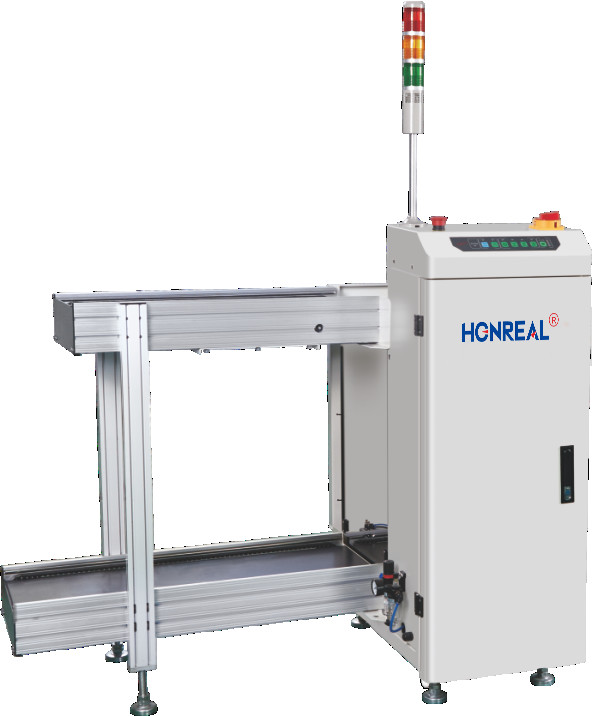

Product Images
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 0
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 1
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 2

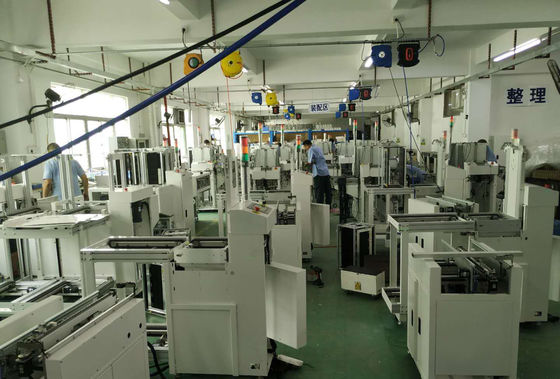

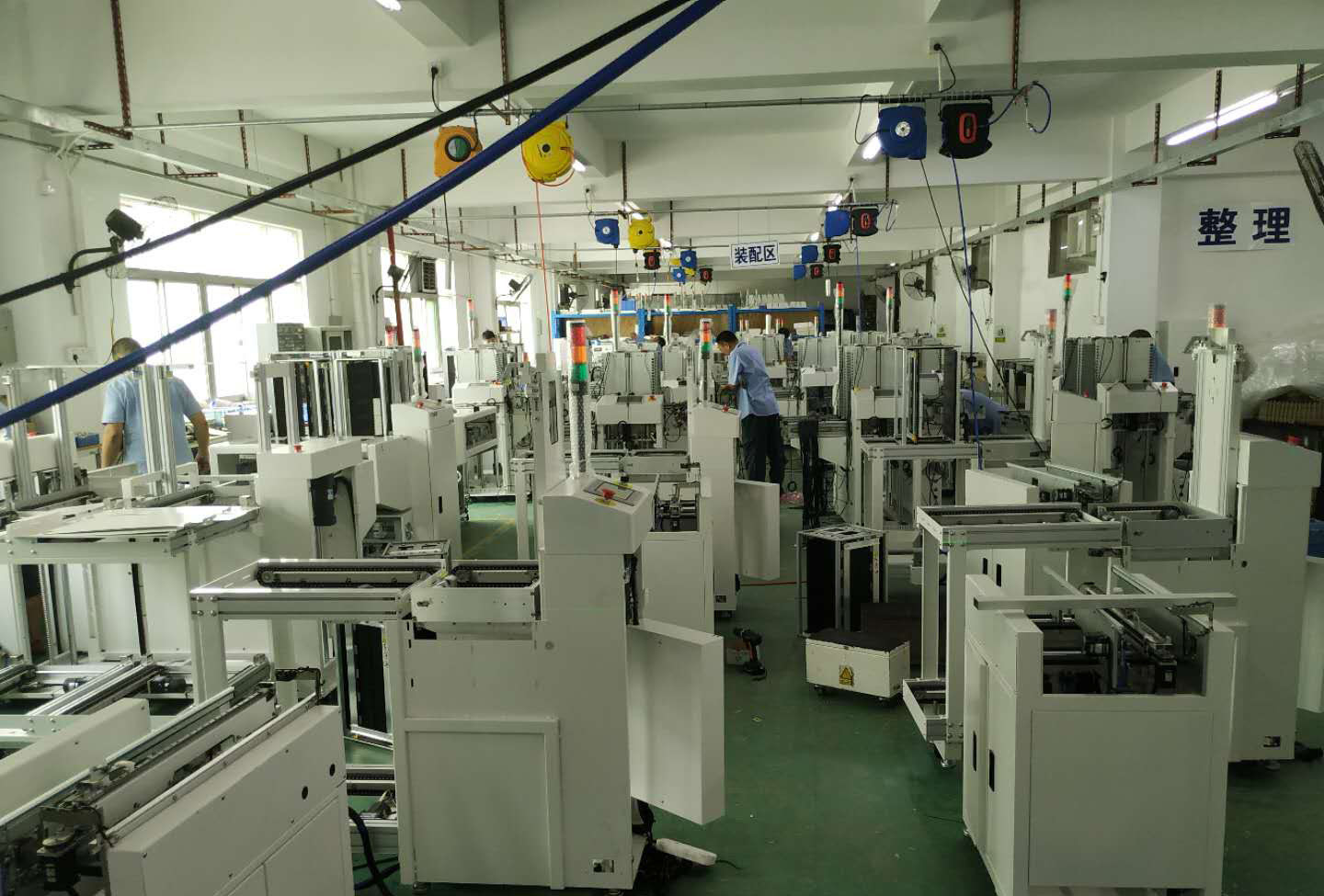

Our Service Commitment
We provide comprehensive pre-sales consultation to recommend the most suitable products for your needs. Our production strictly follows contract specifications, ensuring timely delivery of intact equipment.
  • Prompt response to all quality feedback
  • On-site installation, commissioning, and technical training
  • Long-term technical support and spare parts availability
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 3
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 4
Automatic SMT PCB Magazine Loader Unloader 6s Loading Time 5
Frequently Asked Questions
How can you guarantee your sales' quality?
We rigorously test every machine before delivery to ensure excellent performance.
How is the training?
Your engineers can receive training at our facility or easily learn operation through included training videos and user manuals.
Can I have my logo on the product?
We offer free customized logo services - just provide your requirements.
Is it hard to use these machines?
No, most clients learn to operate the machines within 2 days.
