Automatic Wave Soldering Machine Dual Hook Automated Soldering Equipment
PCB wave soldering machine HR-300E:
● Streamline appearance design, spacious glass sliding door, easy to observe and maintain; harmonious color, people-centered design concept.
● Touch screen, easy to operate.
● The flux is atomized by the imported spray gun, and the reciprocating mode is stepper motor. The speed is stable, the atomization is uniform and the positioning is accurate.
● Automatic spray tracking system, spray area and time automatically adjust with the size of PCB, and has the function of automatic cleaning spray gun.
● The preheater adopts independent heating modular design, with sufficient preheating space, efficient thermal compensation and sufficient and uniform preheating.
● The tin furnace system adopts external heating mode, close wave crest design, adjustable nozzle angle, and optional standard and energy-saving operation mode. Solder oxide less, and can automatically collect, easy to clean.
● The tin furnace is environmental protection, energy saving, high efficiency and stable temperature.
● The wave crest adopts frequency conversion control technology, highly independent control, simple operation and digital display.
● The date and time can be set according to the operation needs for automatic startup and shutdown.
● With PCB automatic counting function, convenient for production management.
● It is equipped with sound and light alarm, text prompt and emergency stop function.
● PLC and touchscreen controlling system.
● Solder pot is made of titanium material, 100% capable for the lead-free solder.
● Customer can choose "L" finger for pallet, or dual hook finger for pcb.
| HR-300E - Specifications | |
| Model | HR-300E |
| PCB width | 50-400MM |
| Solder pot capacity | 250kg |
| Running power/general power | 9-10KW/18KW |
| Dimension | 2900(L)*1150(W)*1350(H) |
| Net weight | 800KG |
| Controlling system | Touchscreen + PLC |
| Conveyor motor | 3Ph 220V ,90W |
| Conveyor speed | 200MM-1800MM/Min |
| Flux capacity | 6.5 liter |
| Alcohol capacity | 4.5 liter |
| PCB Conveyor direction | Left to right |
| Spray method | stepper motor drive,linear rail and slider moving sprayer |
| Sprayer | Japan ST-6 |
| Preheating zone | 1 individual bottom preheating zone |
| Preheating power | 7.5kw/zone |
| Solder pot material | Fully Ti |
| Solder pot heater | Cast iron |
| Heater power | 1.2KW*7PCS |
| Wave number | dual waves |
| Wave type | Turbulence first wave and Lambda 2nd wave |
| Melting time | 60 minutes |
| Solder pot lift up&down | Manual |
| Solder pot in&out | Motorized |
| Finger cleaning pump | 1PH 220V 10W |
| Finger type | Dual hook |
| Finger material | Ti |
| Solder angle | 5-7° |
| Air supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |

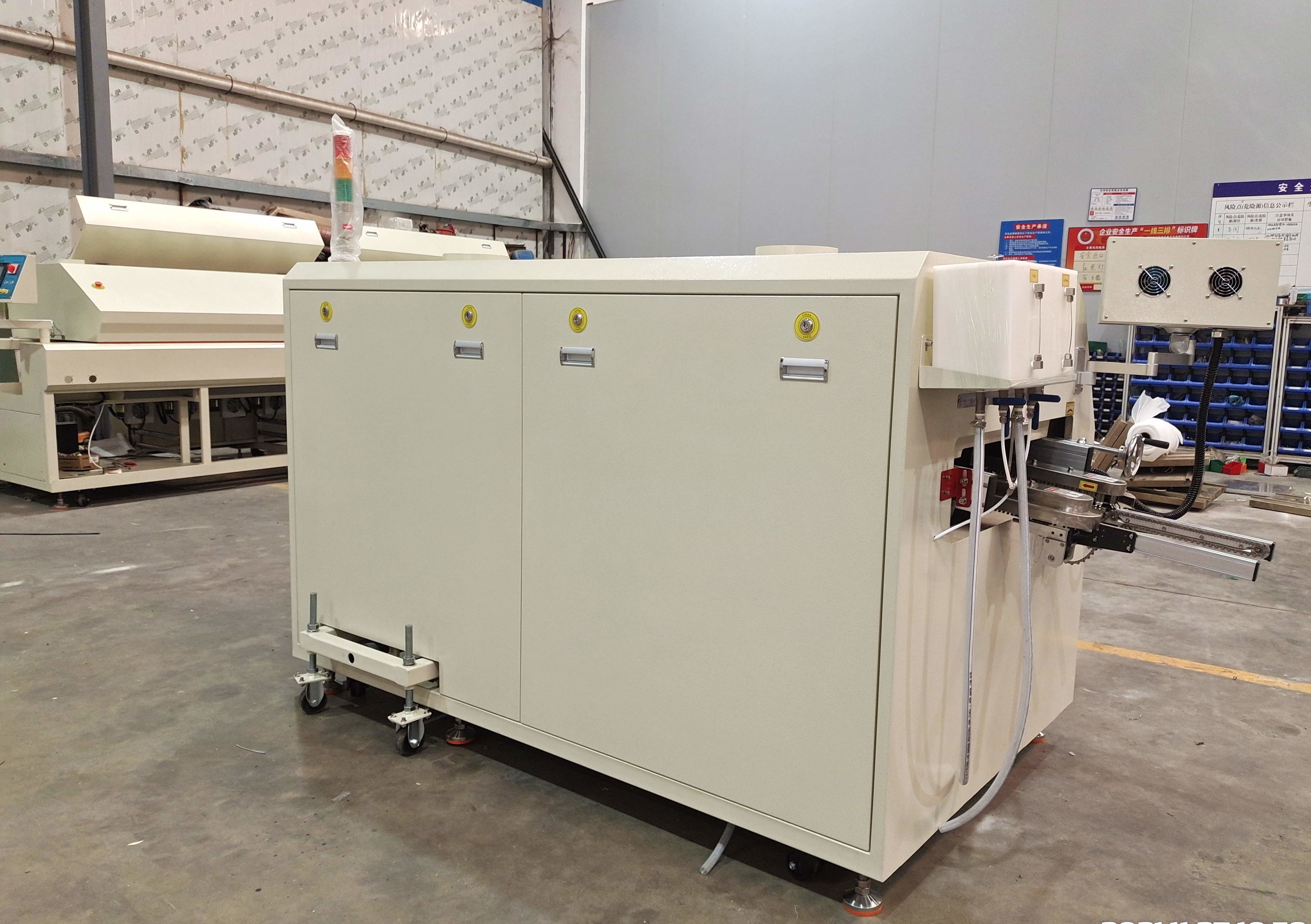

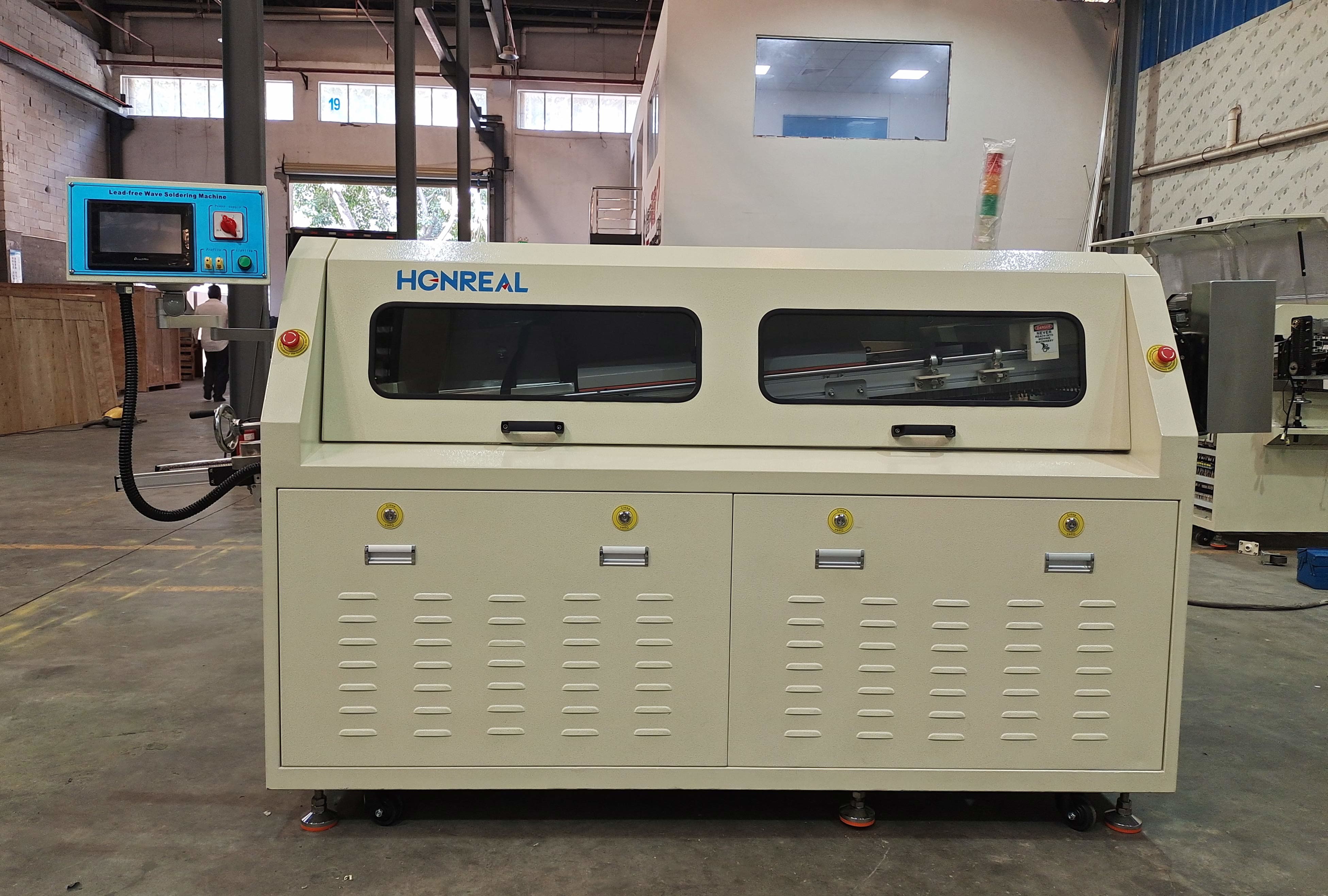

Photo Show:
Installation site:
1. Operate the machine in clear and ventilated environment to avoid influencing welding quality by dust or others;
2. Do not install the machine near electric or magnetic interference sources;
3. Do not let entrance and exit of machine face to fan or window with wind during its installation.
4. Reserve space at the rear part of machine for repair and maintenance and on the upward side for opening upper cover of oven and installing ventilation duct (the diameters of two air outlets at two ends of the machine are Φ195mm).
