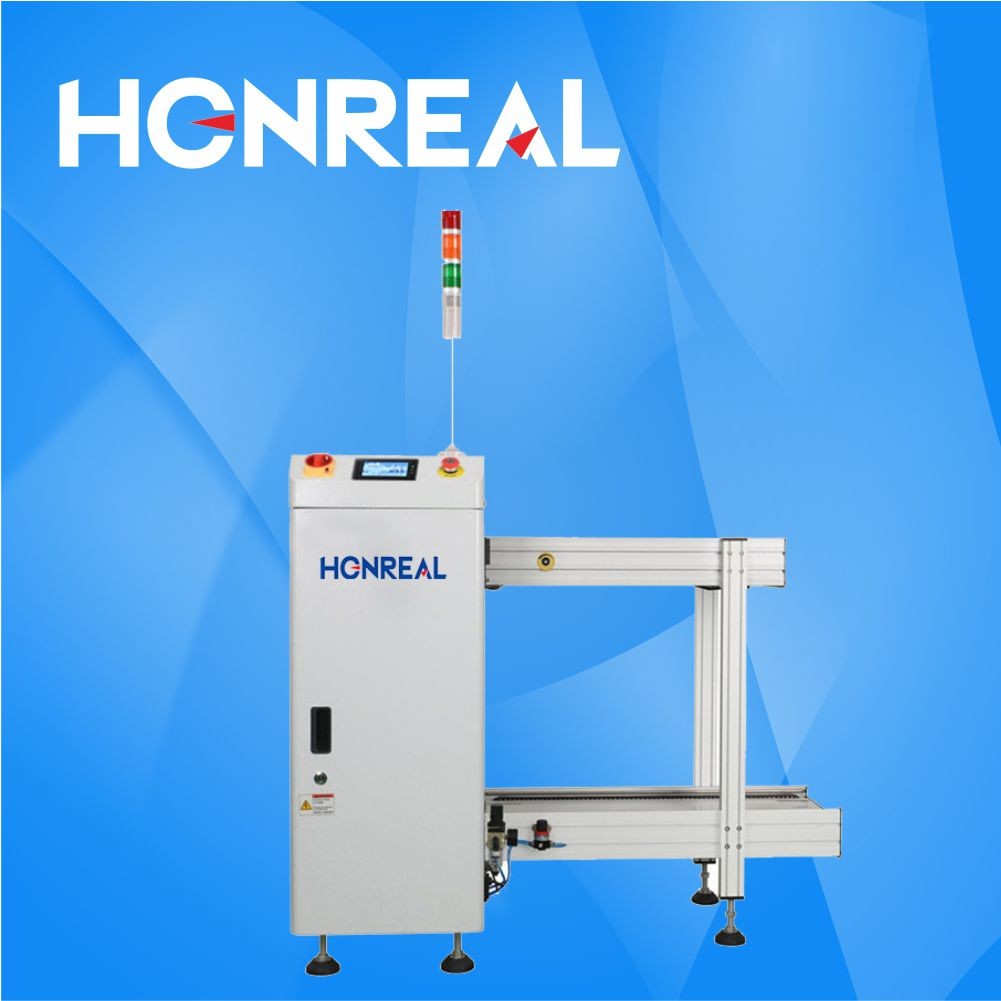

Customized Magazines PCB Loader And Unloader With CE Certified

1set
MOQ
USD 2600-3500 Per Set
Price
Customized Magazines PCB Loader And Unloader With CE Certified
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: Min0.6mm
Step Pitches Select: 1-4(10mm Step Pitches)
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1370×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Weight: 110kg
Highlight:

Magazines PCB Loader And Unloader

,

PCB Loader And Unloader CE

,

Customized magazine pcb loader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250
Document: PCB loader.pdf
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 200SET/Month
Product Description

Smt Board Handling Equipment designspark pcb library loader samsung top automatic Pcb board magazine Loader Machine



Product introduction:

  1. This unit is used to send PCBs out from magazine to SMT production line .
  2. Stable and reliable PLC control system;
  3. Easy to operate LED touch screen control interface;
  4. The pneumatic clamps of top and bottom three point provided for the magazine alignment;
  5. Effective thrust design can ensure the PCB is unbroken;
  6. 3magazines loading capability.
  7. Direction from left to right or right to left(optional).
  8. Machine always fault monitoring;
  9. Solid and stable design;
  10. SMEMA port is compatible;

Options

Additional magazine capacity.

Enclosed construction improve level of safety.

Width adjustable magazine conveyor(s).

Other options available on request.


Technical parameters
Function This unit is used to send PCBs out from magazine to SMT production line

PCB thickness


 Min0.6mm

Magazine number


 Transport up:1pcs,transport down:1ps,(or customized)

Step pitches select


 1-4(10mm step pitches)

PCB loading time


 Approx 6 seconds

Magazine change-over time


 Approx 30 seconds

Transport direction


 Left to right/right to left(optional)

Transport height


 900±20mm(or customized)

Air pressure


 4-6 bar, MAX10L/minute

Power supply


 100-230V AC(customized) single phase, MAX 300V/A


Specifications
Model No HR-250 HR-330 HR-390 HR-460
PCB size (L×W)～(L×W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L×W×H)mm 1370×750×1200 1550×830×1200 1750×920×1200 1750×990×1200
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 110kg 135kg 155kg 175kg

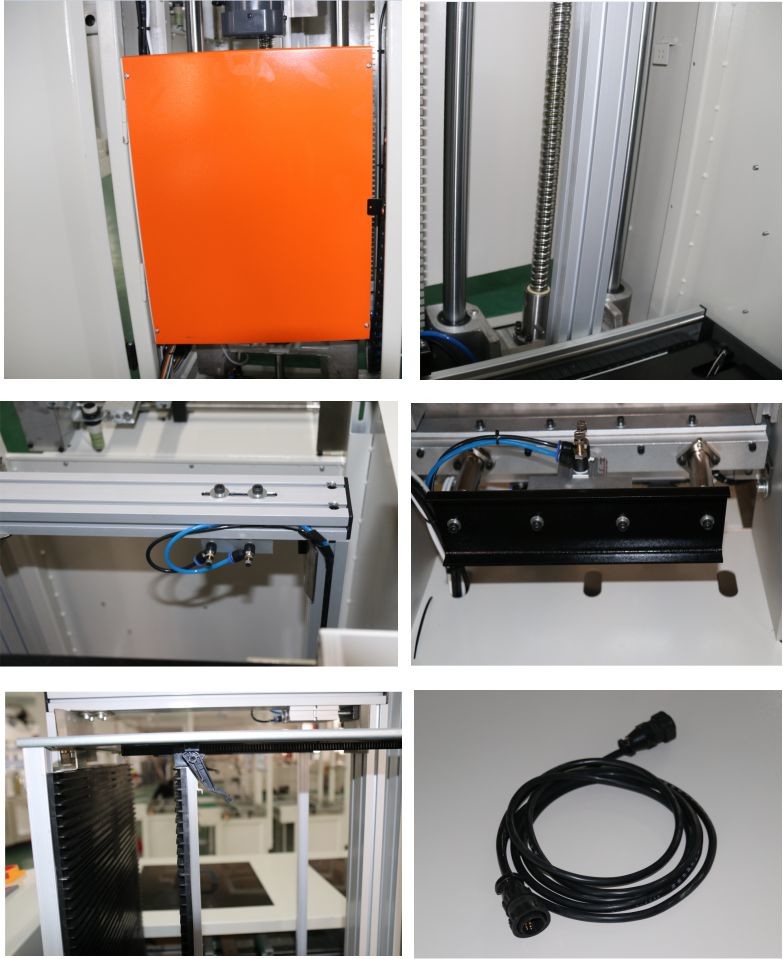

Details:


Customized Magazines PCB Loader And Unloader With CE Certified 0

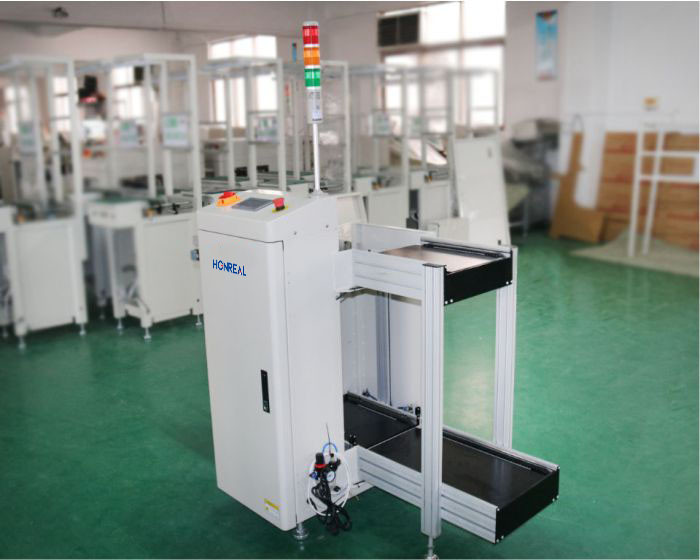

Production Workshop


Customized Magazines PCB Loader And Unloader With CE Certified 1



Customized Magazines PCB Loader And Unloader With CE Certified 2

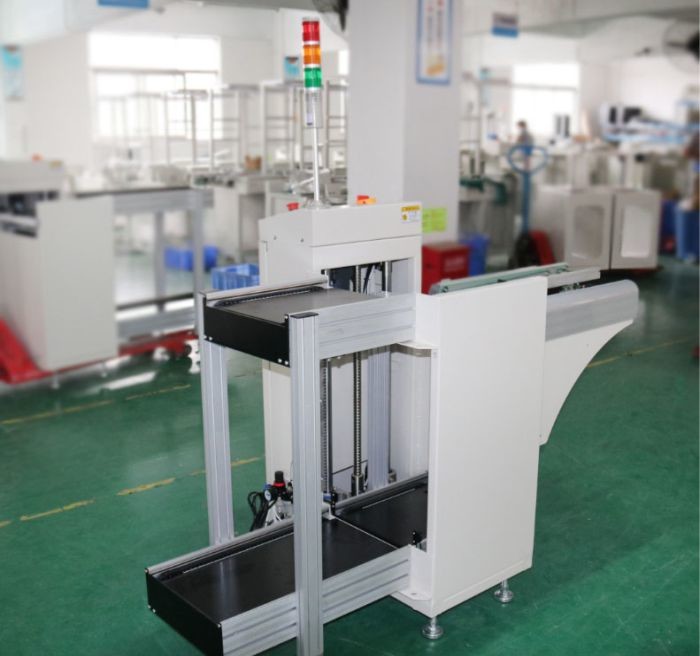

Client's Case
