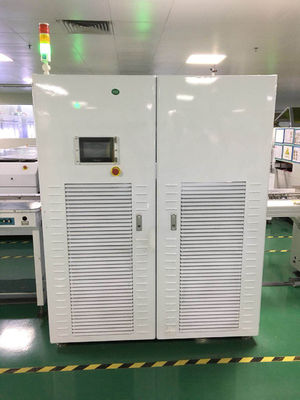

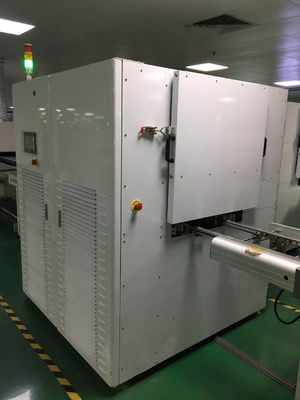

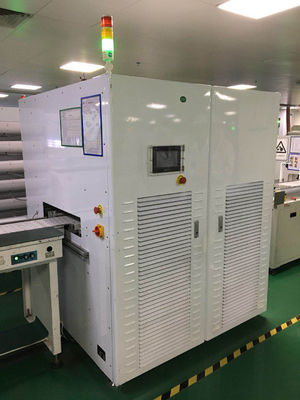

SMT PCB handling equipment Buffer Conveyor For 1.2M LED Tube Cooling

1.2 M LED Tube Cooling Buffer Smt Long Board Buffer Conveyor

Technical Parameters HR-1200CB:

Function :This machine controls the PCB first-in, first-out, or last-in first-out function.

1. Dimensions: (L) 1600x (W) 1950x (H) 1700 + 20 / -20mm

2. Product size: PCB board size 50*50～450*1200mm

3. Transfer direction: left-right or right-left, switchable

4. Transmission height: 920+30/-20mm, foot cup adjustment height

5. Transmission speed: adjustable from 0-180 mm/sec

6. Cooling time: less than or equal to ≤ 5~8 minutes, temperature within 50 degrees

(depending on the working environment)

7. Storage mode adjustment: manual adjustment

8. Storage operation mode: diversified optional, can be optimized (first in, first out,

Straight-through, layered interval , etc., with memory function can manually modify the stored data)

9. Storage structure: not easy to deform, no wear up and down, left and right width consistent without bell mouth

10. Storage drive mode: servo motor (220~380V) drive.

11. Track adjustment mode: manual adjustment

12. Transportation structure: single-layer shared linkage: the two-track cylinders should be pushed synchronously .

13. Transportation mode: Storage time can be set, single-layer shared linkage or linkage

14. Transmission motor: 200V, 50~60HZ, 25W motor

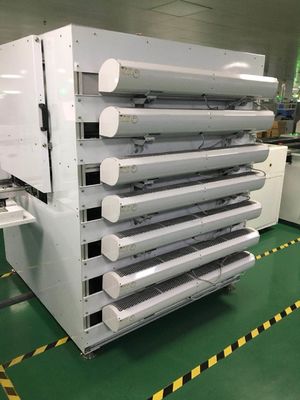

15. Cooling device: PLC control air curtain, can be equipped with other auxiliary equipment with fast cooling speed, cooling time ≤ 5~8 minutes

16. Circuit control: the cooling device and the equipment are separated by safety devices and switch control.

The input circuit also has a safety device, and the current exceeding the standard can automatically power off without affecting the power supply of other devices in the line .

17. Control system: PLC touch panel control .

18. Monitoring system: blocking alarm interception

19. Fool-proofing safety: The protective device of the machine meets the requirements of safe production and Fool-proofing,and the emergency stop switch.

Security door: The machine cannot be started after the door is opened. After the door is closed, the electromagnetic lock cannot be opened manually.

20. Software foolproof: Software parameter setting, increase the upper and lower limit lock or advanced permission to open;

21. Voltage requirements: use single-phase AC220V. or three-phase AC380V

22. Air pressure requirements: 0.4Mpa-0.6Mpa

Work shop

Our Service

1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
