Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm

MOQ: 1set
Price: Negotiable
Standard Packaging: Woodencase
Delivery Period: 10-20Workdays
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100SET/Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONREAL
Certification
CE
Model Number
HR-250XS
PCB Thickness:
Min0.6mm
Transport Direction:
Left To Right/right To Left(optional)
Transport Height:
900±20mm(or Customized)
Air Pressure:
4-6 Bar, MAX30L/minute
Power Supply:
100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm:
(50x50)～(350x250)
Machine Size (L×W×H)mm:
1900×850×1200
Weight:
180kg
Highlight:

Magazine Stacked PCB Loader And Unloader

,

Bare Board PCB Loader And Unloader

,

Vacuum Bare Board Loader

Product Description
Magazine Stacked PCB Loader And Unloader, Vacuum Bare Board Loader For SMT Assembly
Product Specifications
PCB thickness Min 0.6mm
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 30L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
PCB size (L×W) (50x50)～(350x250)mm
Machine size (L×W×H) 1900×850×1200mm
Weight 180kg
Product Description

Full Automatic PCB Magazine Vacuum Bare Board Loader and Magazine Stacked PCB Loader with PLC Control for SMT Assembly.

This equipment is used for the automatic loading operation of double-sided PCB boards and PCB bare boards on SMT production lines.

Key Features
  • PLC control system for stable and reliable operation
  • LED touch screen control panel for easy operation
  • Pneumatic clamps with top and bottom three-point alignment for magazine positioning
  • Effective thrust design to prevent PCB damage
  • Continuous machine fault monitoring
  • Adjustable suction cup positions for flexible PCB handling
  • Solid and stable construction
  • SMEMA port compatibility
Technical Parameters
Function Used for line source with optional suction PCB function for blank PCBs and load PCB function for non-blank PCBs
PCB thickness Min 0.6mm
Magazine number Transport up: 1pc, transport down: 2pcs (or customized)
Step pitches select 1-4 (10mm step pitches)
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport direction Left to right/right to left (optional)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
Model Specifications
Model No HR-250XS HR-330XS HR-390XS HR-460XS
PCB size (L×W) (50x50)～(350x250)mm (50x50)～(455x330)mm (50x50)～(530x390)mm (50x50)～(530x460)mm
Machine size (L×W×H) 1900×850×1200mm 2250×1050×1200mm 2600×1250×1200mm 2600×1480×1200mm
Magazine size (L×W×H) 355×320×563mm 460×400×563mm 535×460×570mm 535×530×570mm
Weight 180kg 220kg 260kg 285kg
Send height 900±20mm
Product Images

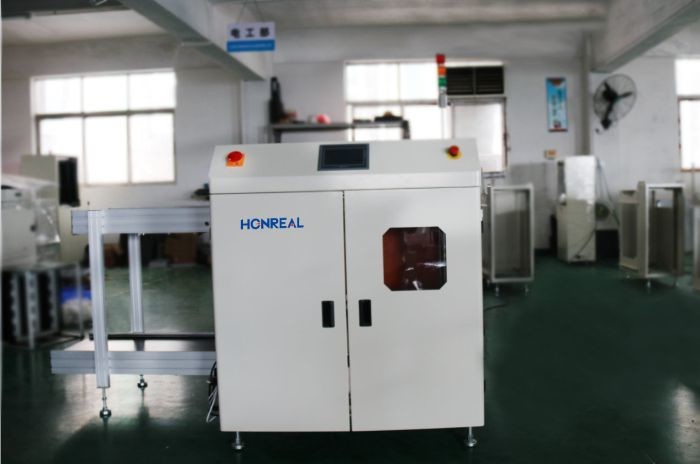

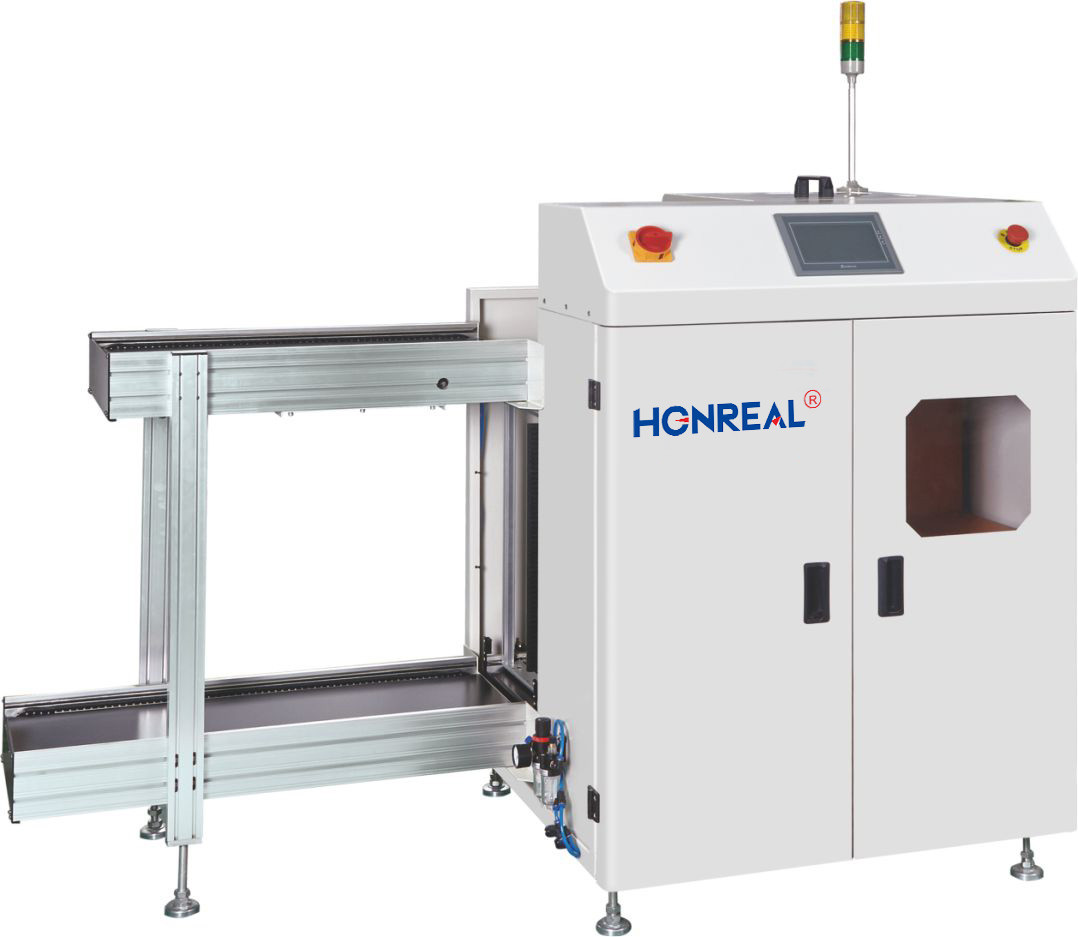

Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 0 Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 1 Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 2 Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 3
Certification
Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 4
Packing
Automatic PCB Magazine Loader Unloader for SMT Assembly 350x250mm 5
Services and Commitments

We provide comprehensive product analysis and recommendations based on customer requirements, ensuring you receive the most suitable equipment for your needs.

Our company promises:

  • Timely response to all quality feedback
  • Strict adherence to contract terms for production and delivery
  • Professional installation, commissioning, and training services
  • Long-term technical support and spare parts availability
Contact Information
Company Shenzhen Honreal Technology CO.,Ltd.
Address No15, Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel +86755 2302 0279
Fax +86 755 2330 6782
Zip code 518125
Skype/Whatsapp/Wechat +8613715227009
Email Monica@szhonreal.com
