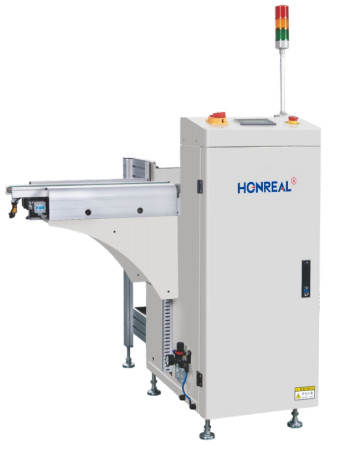

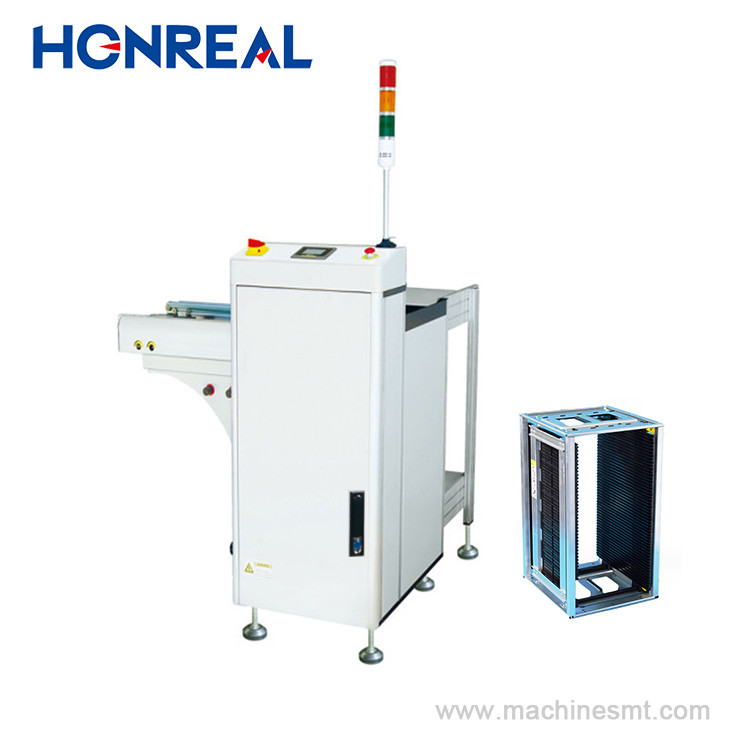

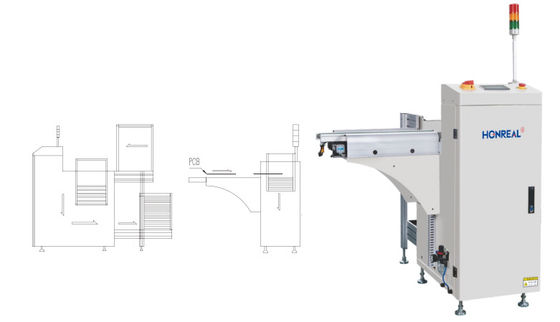

Factory Price Automatic 90 Degree Smt Pcb Magazine Loader Unloader Manufacturers And Factory With OEM/ODM Services

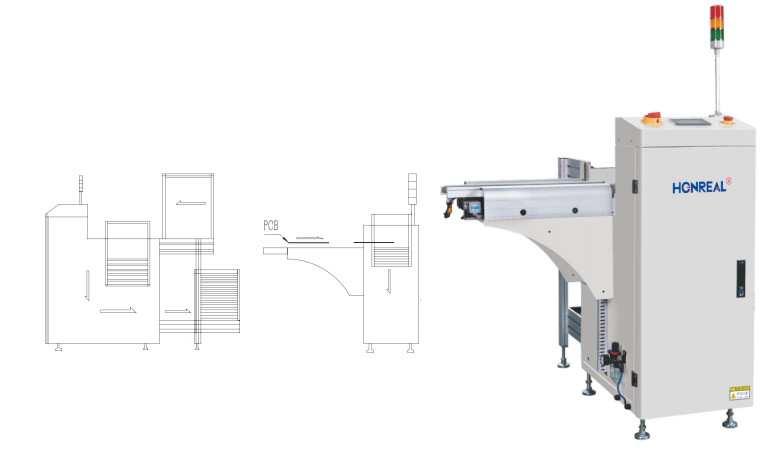

Product introduction:
1.This equipment is used to collect PCBs into magazine at the end of SMT production line
2.Stable and reliable PLC control system;
3.Easy to operate LED touch screen control interface;
4.The pneumatic clamps of top and bottom three point provided for the magazine alignment;
5.Effective thrust design can ensure the PCB is unbroken;
6.2magazines loading capability.
7.Direction from left to right or right to left(optional).
8.Machine always fault monitoring;
9.Solid and stable design;
10.SMEMA port is compatible;
|
Technical parameters
|
|
| Function | This equipment is used to collect PCBs into magazine at the end of SMT production line |
|
PCB thickness
|
Min0.6mm |
|
Magazine number
|
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select
|
1-4(10mm step pitches) |
|
PCB loading time
|
Approx 6 seconds |
|
Magazine change-over time
|
Approx 30 seconds |
|
Transport direction
|
Left to right/right to left(optional) |
|
Transport height
|
900±20mm(or customized) |
|
Air pressure
|
4-6 bar, MAX10L/minute |
|
Power supply
|
100-230V AC(customized) single phase, MAX 300V/A |
|
Specifications
|
||||
|
Model No
|
HR-250XL | HR-330XL | HR-390XL | HR-XB460XL |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1180×1130×1200 | 1300×1420×1200 | 1500×1530×1200 | 1500×1630×1200 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 170kg | 150kg | 170kg | 185kg |

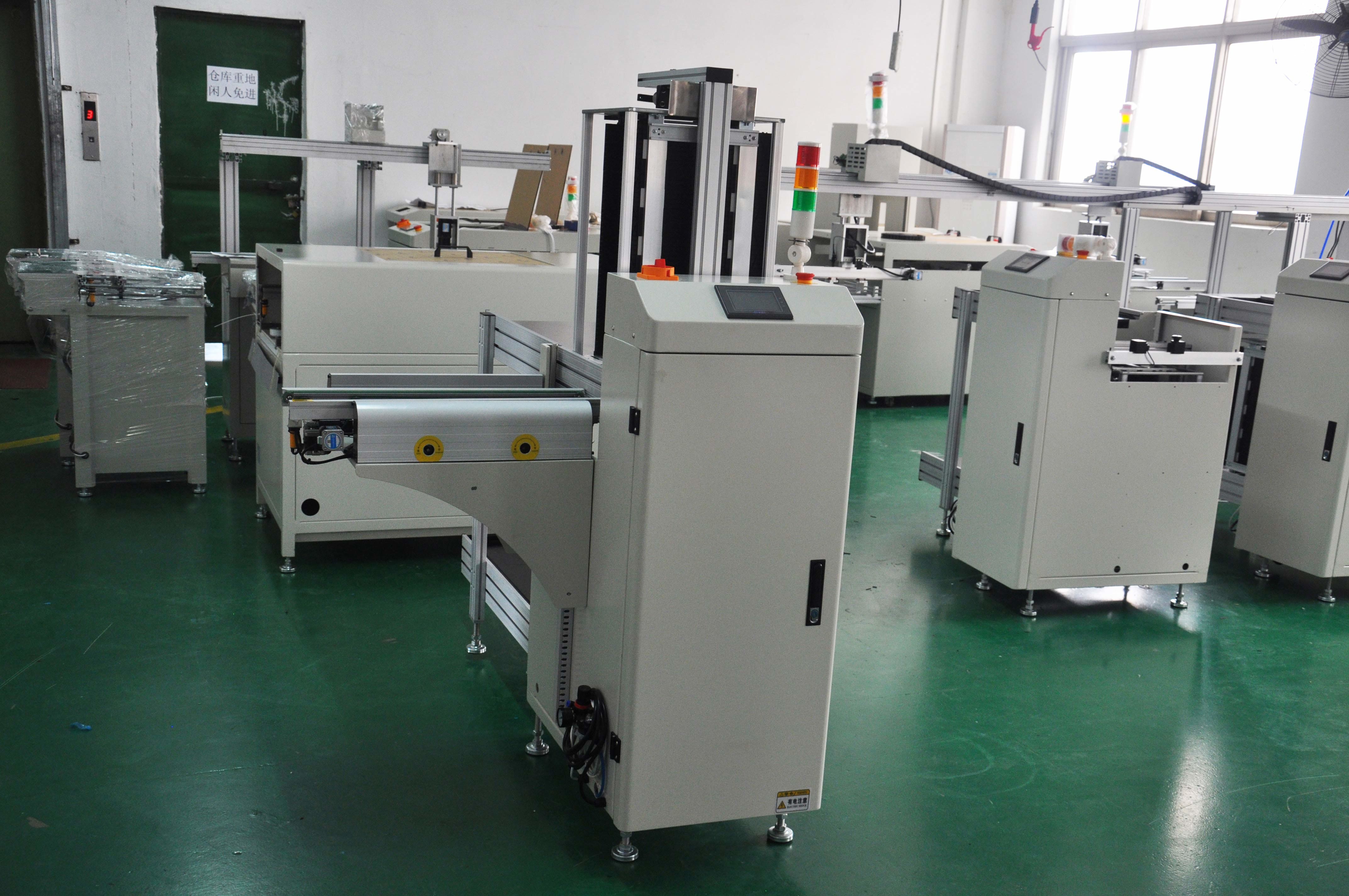

Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Certification
Packing
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
