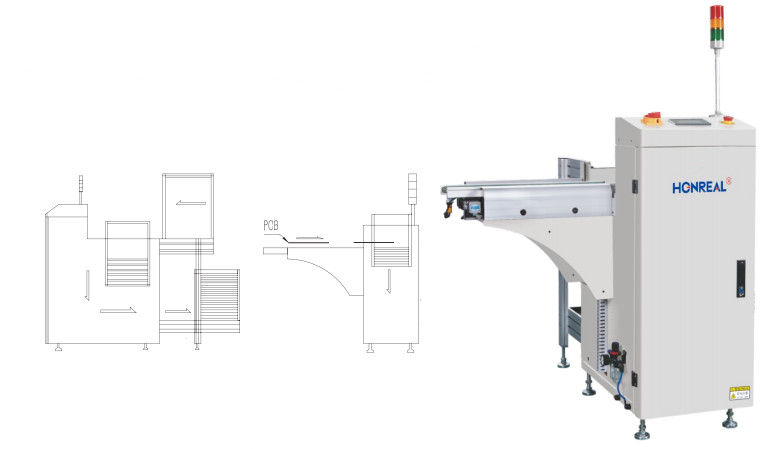

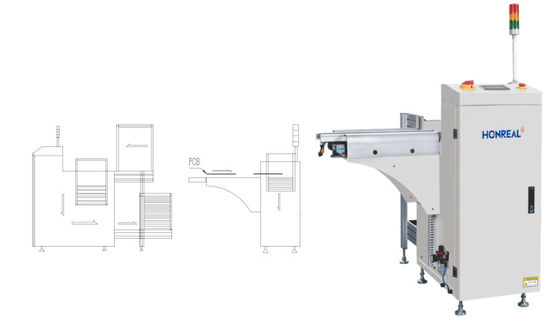

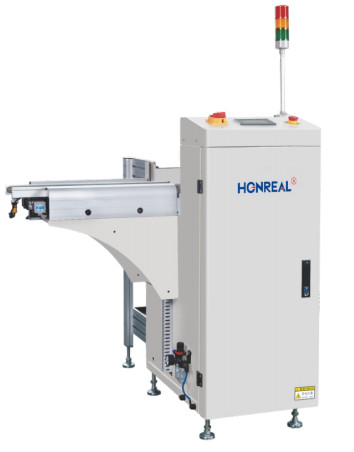

High Quality Automatic L Shape PCB Magazine Unloader Machine of Printed Circuit Boards For Smt Production Line
Product introduction:
1.This equipment is used to collect PCBs into magazine at the end of SMT production line
2.Stable and reliable PLC control system;
3.Easy to operate LED touch screen control interface;
4.The pneumatic clamps of top and bottom three point provided for the magazine alignment;
5.Effective thrust design can ensure the PCB is unbroken;
6.2magazines loading capability.
7.Direction from left to right or right to left(optional).
8.Machine always fault monitoring;
9.Solid and stable design;
10.SMEMA port is compatible;
|
Technical parameters
|
|
| Function | This equipment is used to collect PCBs into magazine at the end of SMT production line |
|
PCB thickness
|
Min0.6mm |
|
Magazine number
|
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select
|
1-4(10mm step pitches) |
|
PCB loading time
|
Approx 6 seconds |
|
Magazine change-over time
|
Approx 30 seconds |
|
Transport direction
|
Left to right/right to left(optional) |
|
Transport height
|
900±20mm(or customized) |
|
Air pressure
|
4-6 bar, MAX10L/minute |
|
Power supply
|
100-230V AC(customized) single phase, MAX 300V/A |
|
Specifications
|
||||
|
Model No
|
HR-250XL | HR-330XL | HR-390XL | HR-XB460XL |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1180×1130×1200 | 1300×1420×1200 | 1500×1530×1200 | 1500×1630×1200 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 170kg | 150kg | 170kg | 185kg |
