Home /Products/PCB Loader And Unloader/Automatic PCB Unloader L Shape 90 Degree Multi Rack CE

Automatic PCB Unloader L Shape 90 Degree Multi Rack CE

1set
MOQ
USD 2800-4000 Per Set
Price

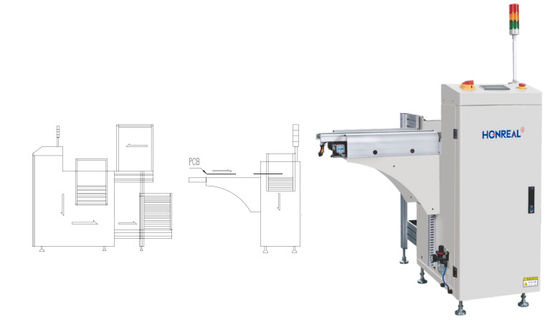

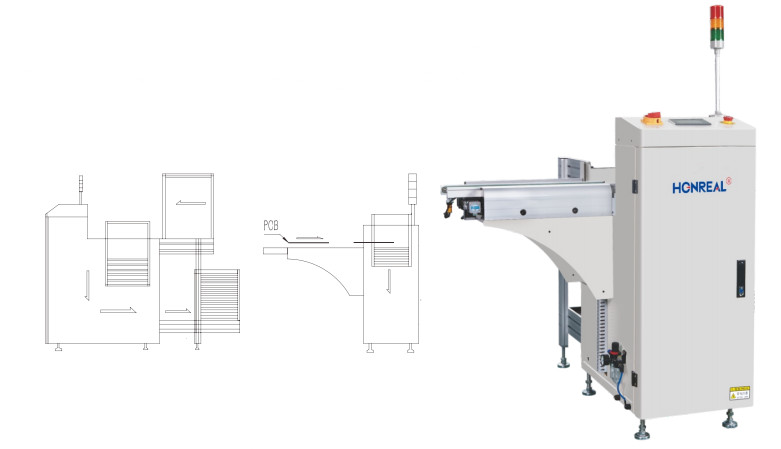

Automatic PCB Unloader L Shape 90 Degree Multi Rack CE
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: Min0.6mm
PCB Loading Time: Approx 6 Seconds
Magazine Change-over Time: Approx 30 Seconds
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1700×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Weight: 130kg
Highlight:

PCB Loader And Unloader Multi Rack

,

PCB Loader And Unloader L Shape

,

Automatic pcb magazine unloader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250XL
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description

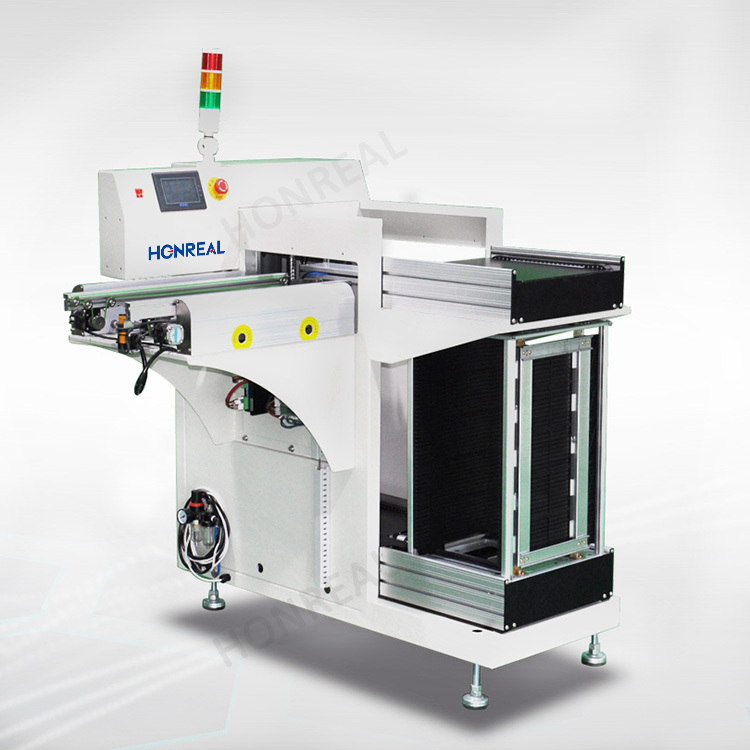

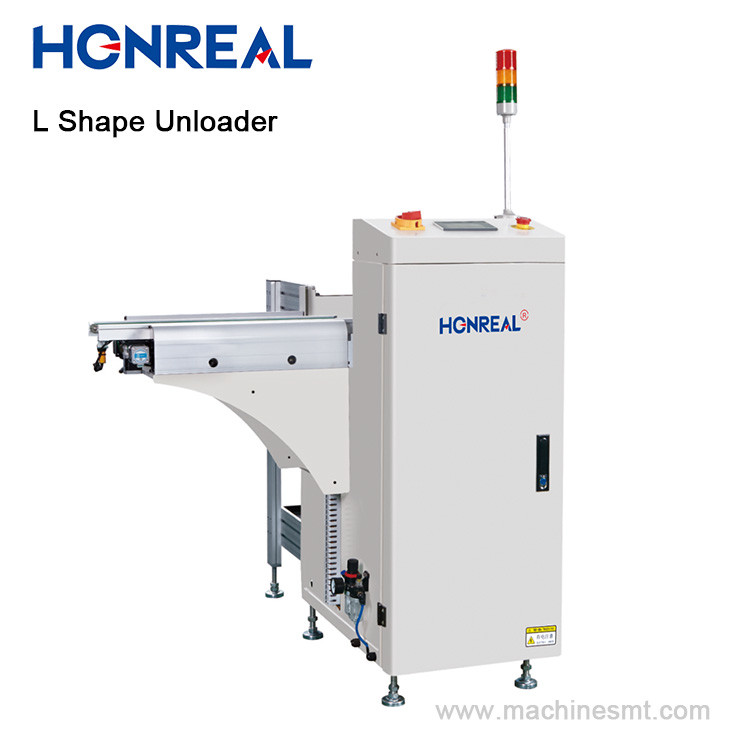

Automatic Magazine 90 Degree PCB Unloader Multi Rack L Shape CE
Product Attributes
PCB thickness Min0.6mm
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport height 900±20mm(or customized)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm (50x50)～(350x250)mm
Machine size (L×W×H)mm 1700×750×1200mm
Magazine size (L×W×H)mm 355×320×563mm
Weight 130kg
Product Description
Automatic Stacker Handle SMT Handling Multi Rack Magazine Unloader Machine L Shape PCB Loader And Unloader Equipment
Product Application:

This equipment is used in SMT and AI production lines to automatically handle PCBs without manual contact, ensuring better protection. The PCB Loader automatically sends PCBs from anti-static material frames to the production line based on rear equipment signals. It features high lifting precision, automatic counting, fault alarm, and alarm information prompts, making it essential for full line automation.

Technical Parameters
Function Collects PCBs into magazine at the end of SMT production line
PCB thickness Min0.6mm
Magazine number Transport up:1pcs, transport down:1pcs (or customized)
Step pitches select 1-4 (10mm step pitches)
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
Specifications
Model No HR-250XL HR-330XL HR-390XL HR-460XL
PCB size (L×W)～(L×W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L×W×H)mm 1180×1130×1200 1300×1420×1200 1500×1530×1200 1500×1630×1200
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 170kg 150kg 170kg 185kg
Automatic PCB Unloader L Shape 90 Degree Multi Rack CE 0 Automatic PCB Unloader L Shape 90 Degree Multi Rack CE 1
