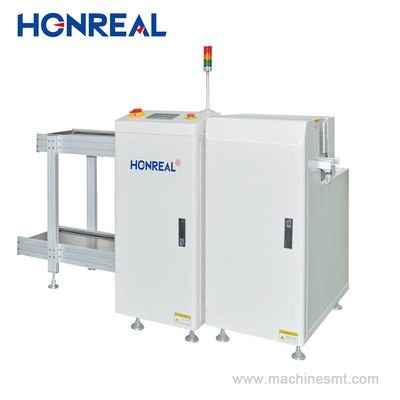

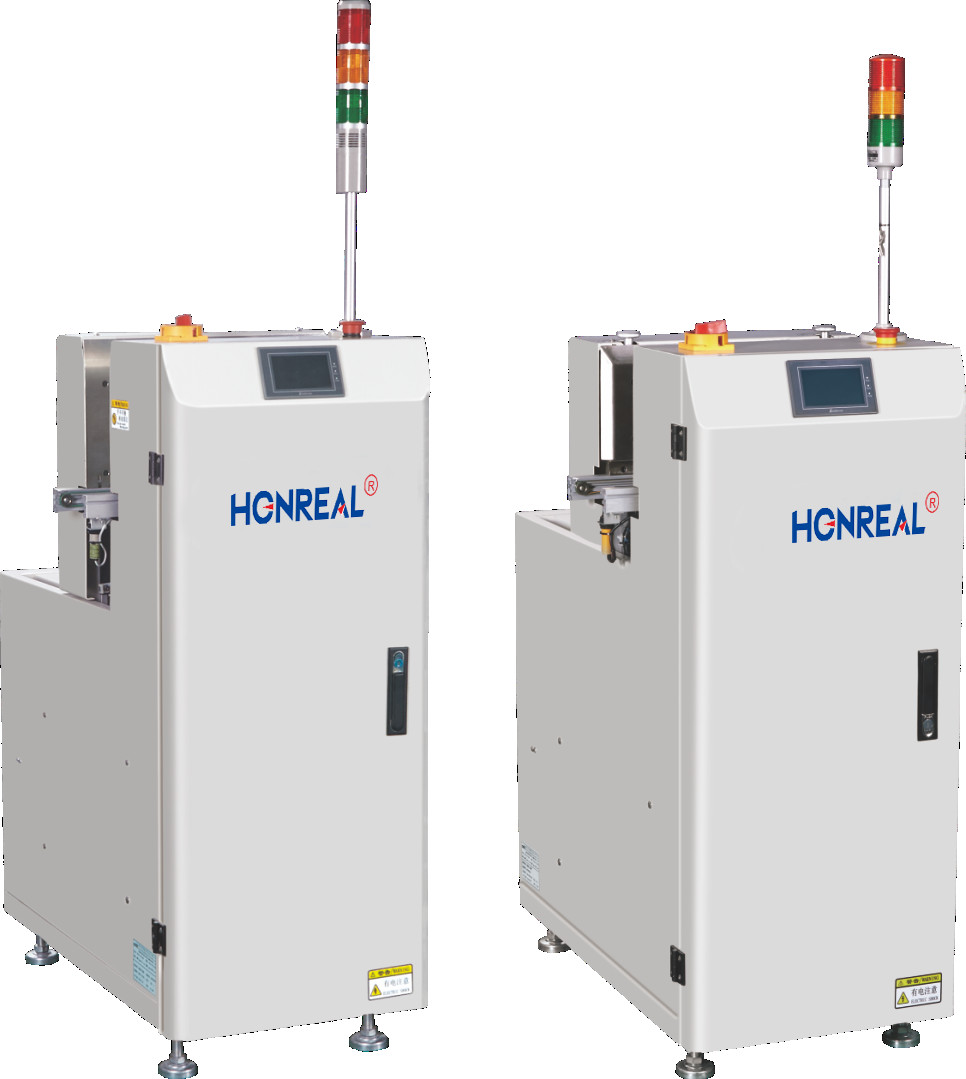

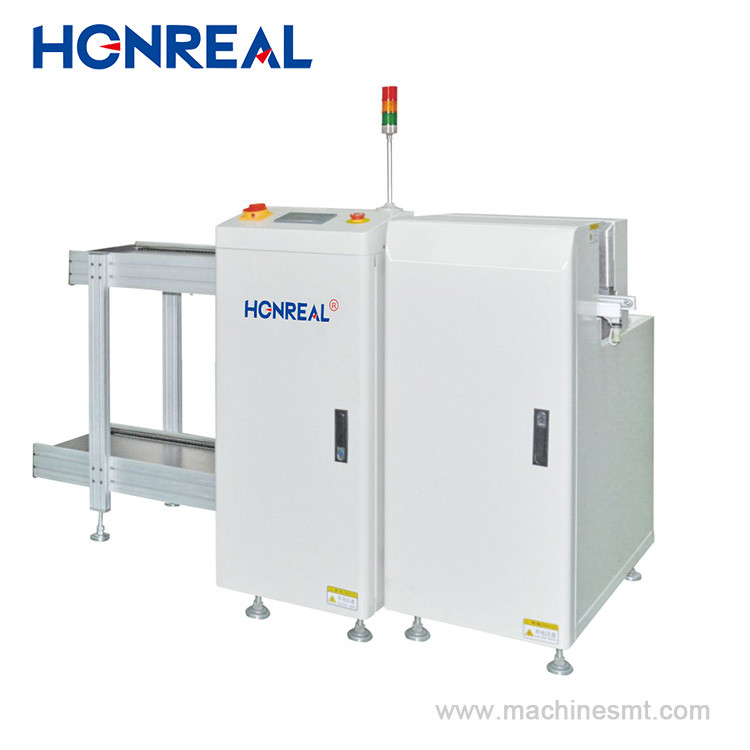

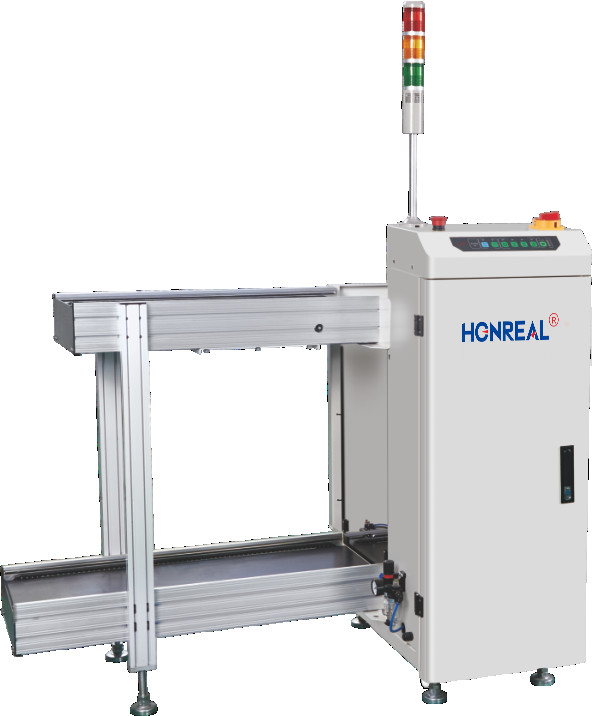

Auto Smt Combination Magazine/Stacked PCB Loader For Automatic Loading Operation Of Double-Sided Boards And Bare Boards
Description
1.PLC + LED touch screen control, easy to operate.
2.By pass mode can be choosed.
3.Up&Down pneumatic clamps to secure the magazine rack.
4.Special air circuit design to ensure no PCB breakage.
| Technical parameters | |
| Function |
This equipment is used for the automatic loading operation of double-sided PCB boards and PCB bare boards on SMT production lines. |
| PCB thickness | Min0.6mm |
| Magazine number | Transport up:1pcs,transport down:2 pcs,(or customized) |
| Step pitches select | 1-4(10mm step pitches) |
| PCB loading time | Approx6seconds |
| Magazine change-over time | Approx30seconds |
| Transport direction | Left to right/right to left(optional) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 300V/A |
| Specifications | ||||
| Model No | HR-250DS | HR-330DS | HR-390DS | HR-460DS |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1900×700×1200 | 2250×820×1300 | 2600×920×1300 | 2600×990×1300 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 220kg | 250kg | 280kg | 320kg |
| Send highly | 900±20mm | |||
