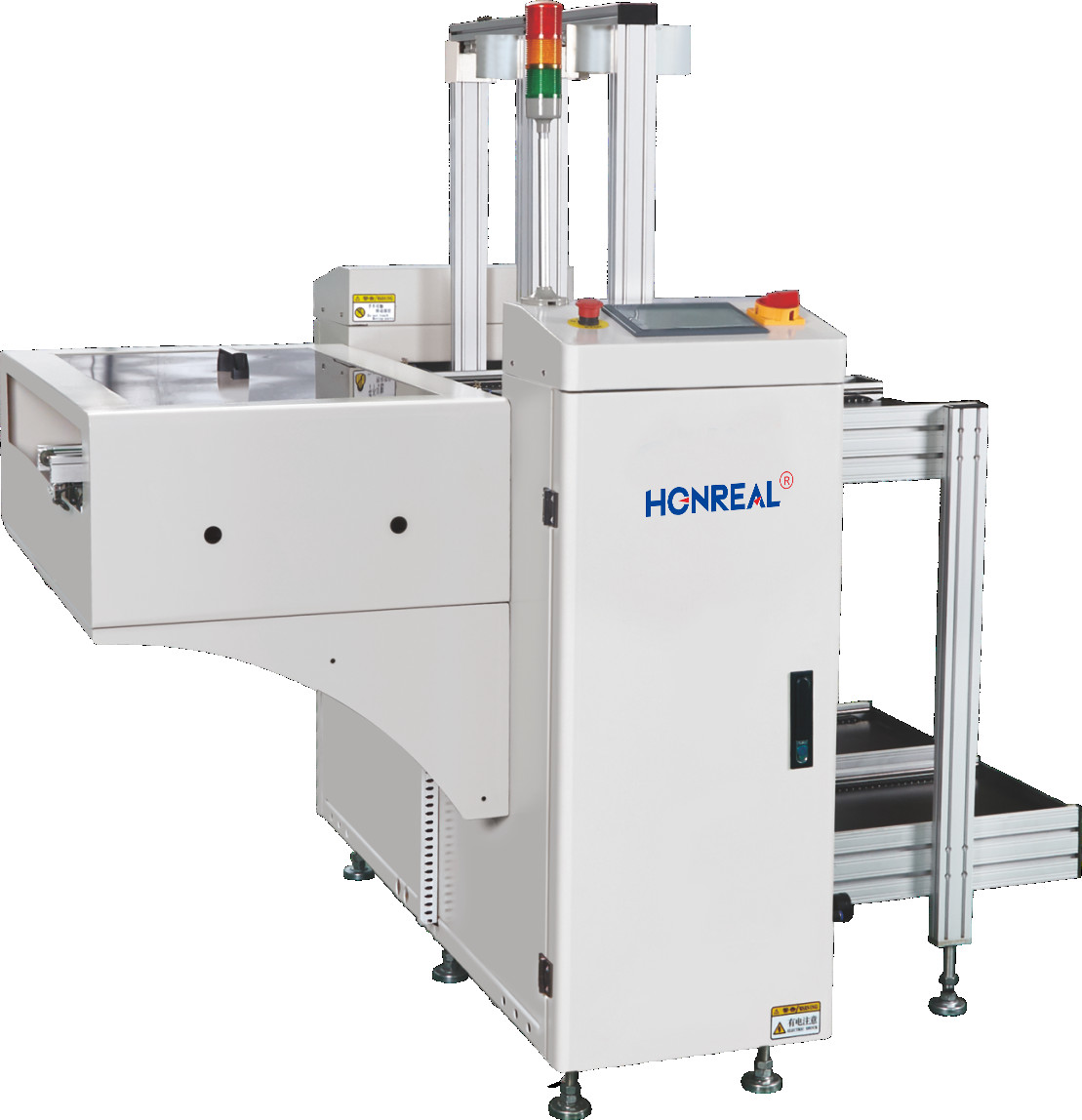

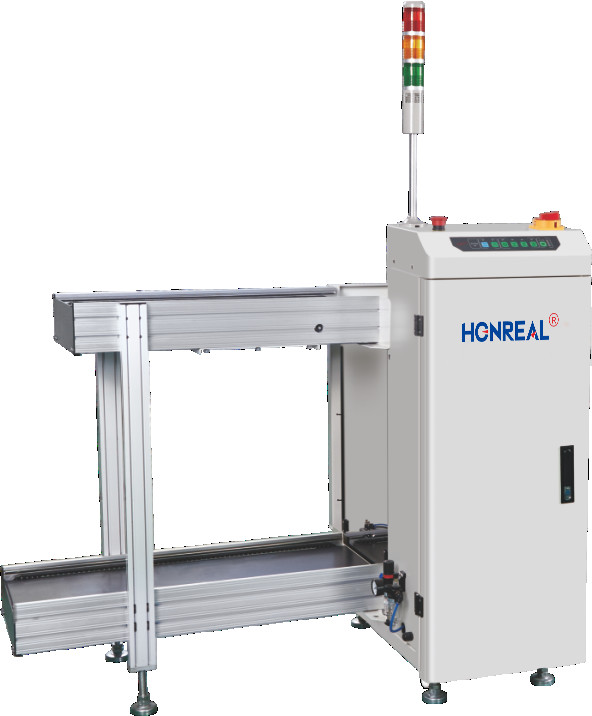

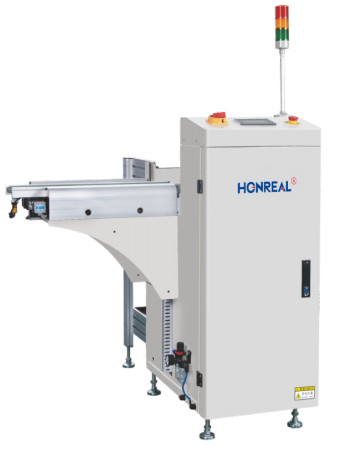

Customized Automatic NG OK Pcb Handling Machine Magazine Dual Track Unloader With SMEMA For SMT Assembly Line
Description
This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow soldering machine.
Features
1.Panasonic PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.With SMEMA signal.
|
Technical parameters
|
|
| Function | This equipment is used behind AOI,by receiving AOI signal,NG and OK PCB automatically stored separately . |
|
PCB thickness
|
Min0.6mm |
|
Magazine number
|
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select
|
1-4(10mm step pitches) |
|
PCB loading time
|
Approx 6 seconds |
|
Magazine change-over time
|
Approx 30 seconds |
|
Transport direction
|
Left to right/right to left(optional) |
|
Transport height
|
900±20mm(or customized) |
|
Air pressure
|
4-6 bar, MAX30L/minute |
|
Power supply
|
100-230V AC(customized) single phase, MAX 300V/A |
|
Specifications
|
||||
|
Model No
|
HR-250NG | HR-330NG | HR-390NG | HR-460NG |
| PCB size (L*W)～(L*W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L*W*H)mm | 1700*1450*1200 | 1950×1610×1200 | 2210×1730×1200 | 2210×1870×1200 |
| Magazine size(L*W*H)mm | 355*320*563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 150kg | 180kg | 210kg | 250kg |
