PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine

1set
MOQ
$3600-5800/SET
Price
PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Loading Time: Approx 6 Seconds
Magazine Change-over Time: Approx 30 Seconds
Transport Height: 900±20mm(or Customized)
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1700×1450×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Weight: 150kg
Highlight:

PLC Automatic PCB Unloader

,

Automatic PCB Unloader Dual Rail

,

AOI Machine smt unloader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250NG
Document: NG unloader.pdf
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description

China SMT Automatic Unloader For Ng & Ok PCB With Dual-Rail For AOI Machine


Description

This equipment is used for the receiving operation of the PCB board of the SMT production line, and it is suitable for receiving the NG board and the OK board after the AOI behind the reflow soldering machine.

Features

1.Panasonic PLC+Touch screen control , easy to operate.

2.Design with firm structure.

3.The upper and lower air clamps ensure the location of the material box accurately.

4.Special gas path design ensures that the PCB panel is not pushed.

5.With SMEMA signal.


Technical parameters
Function This equipment is used behind AOI,by receiving AOI signal,NG and OK PCB automatically stored separately .

PCB thickness


 Min0.6mm

Magazine number


 Transport up:1pcs,transport down:1ps,(or customized)

Step pitches select


 1-4(10mm step pitches)

PCB loading time


 Approx 6 seconds

Magazine change-over time


 Approx 30 seconds

Transport direction


 Left to right/right to left(optional)

Transport height


 900±20mm(or customized)

Air pressure


 4-6 bar, MAX30L/minute

Power supply


 100-230V AC(customized) single phase, MAX 300V/A


Specifications


Model No


 HR-250NG HR-330NG HR-390NG HR-460NG
PCB size (L*W)～(L*W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L*W*H)mm 1700*1450*1200 1950×1610×1200 2210×1730×1200 2210×1870×1200
Magazine size(L*W*H)mm 355*320*563 460×400×563 535×460×570 535×530×570
Weight 150kg 180kg 210kg 250kg

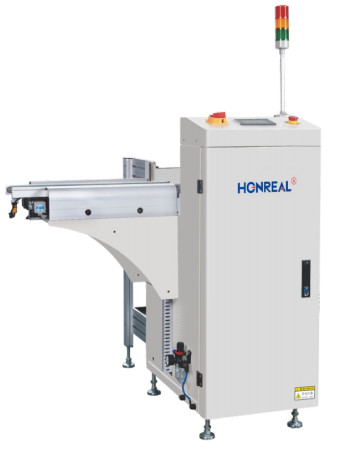

PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine 0

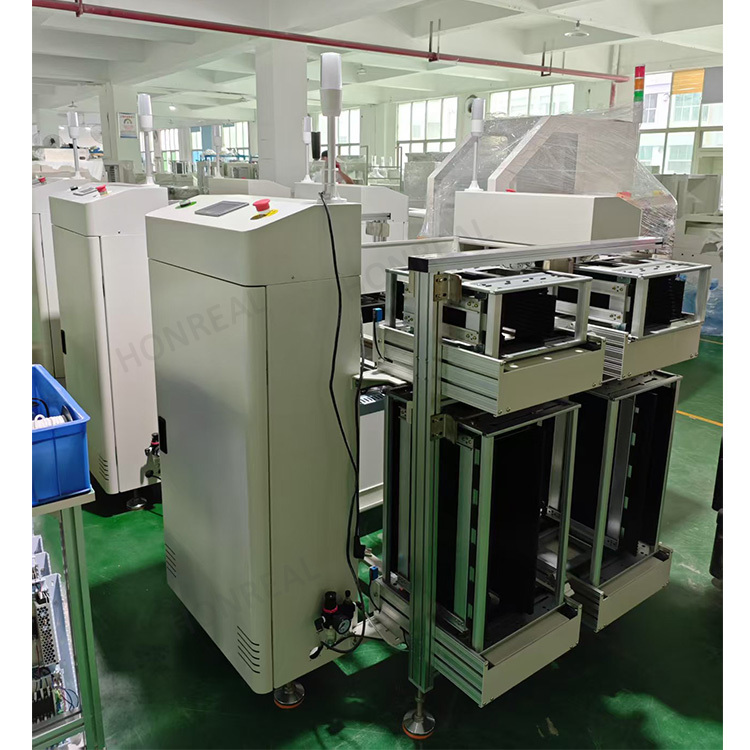

PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine 1

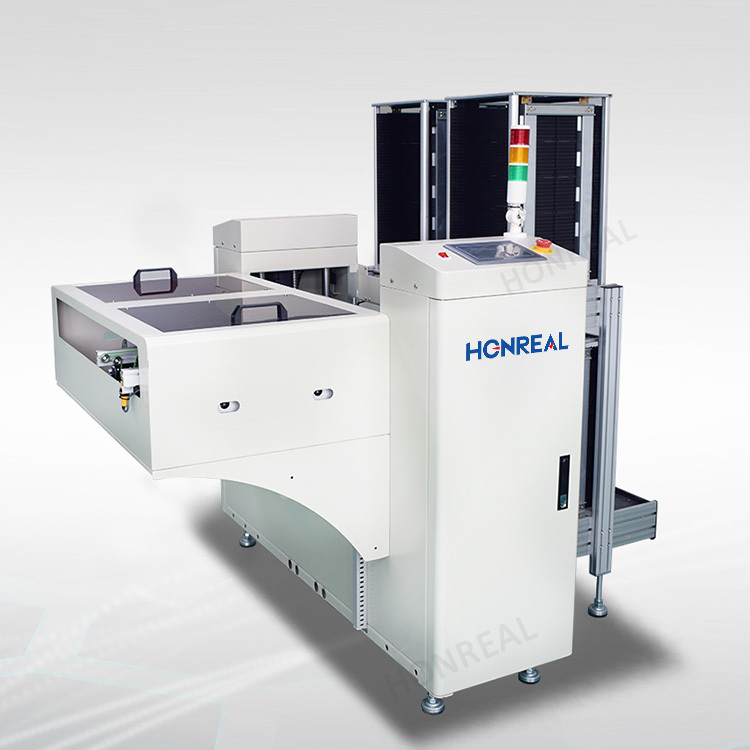

PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine 2

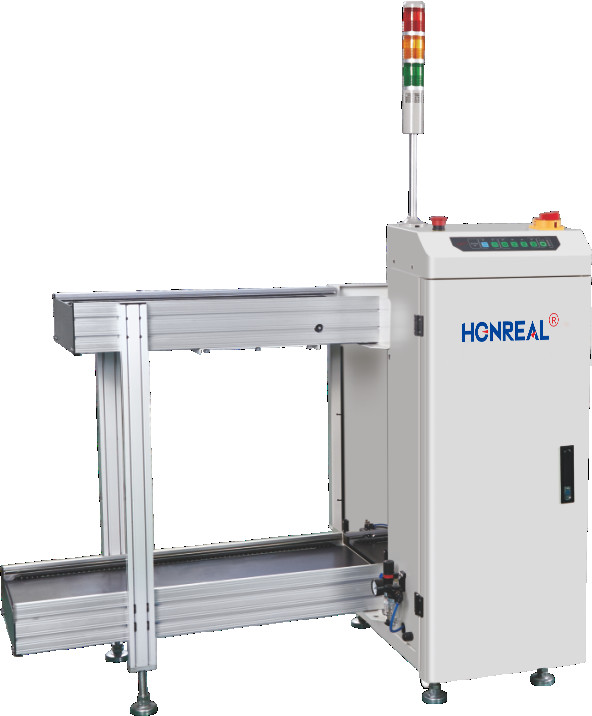

PLC Control SMT Automatic PCB Unloader Dual Rail For AOI Machine 3
