High Capacity PCB Drop Stack Bare Board Smt Unloaders With Ce Certificate For Mobile Phone Factor Production Line
Equipment use
It is used in the end of SMT and AI production lines. It does not need to touch the PCB board by hand to better protect the PCB board. The PCB Unloader automatically collects the PCBs from production line to PCB magazines. It can also set the function of starting push plate layer/layer push plate; this machine has the functions of high lifting precision, automatic counting, fault alarm, alarm information prompting, etc. It is an essential equipment for realizing full line automation.
| Technical parameters | |
| Function | This unit is used in the receiving operation of smooth PCB boards in SMT production line. |
| PCB thickness | Min0.6mm |
| MAX PCB’s capacity | 300pcs(0.6mm thickness PCB) |
| Cycling time | Approx 6 seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 150V/A |
| Specifications | ||
| Model No | HR-350CX | HR-460CX |
| PCB size (L×W)～(L×W)mm | (50x50)～(450x350) | (50x50)～(550x460) |
| Machine size (L×W×H)mm | 600×825×1200 | 700×925×1200 |
| Weight | 110kg | 160kg |

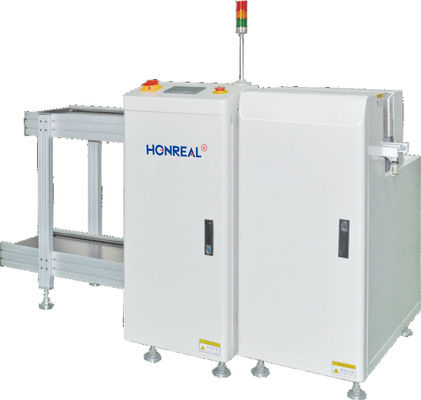

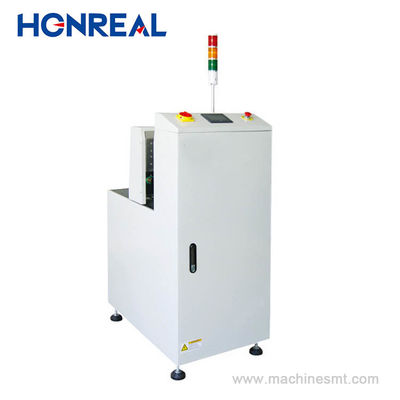

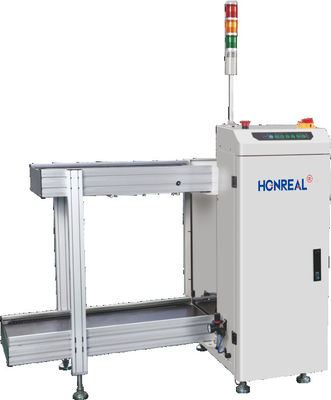

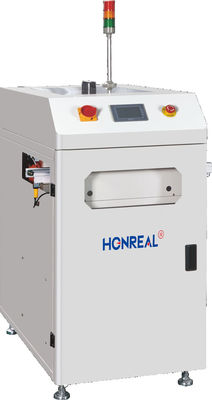

Details
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world's top 500 electronic companies.The registered capital of the company is 5 million.Since the establishment of the company, Honrealhas persisted in the development of technology as the core, quality as its survival, independent research and development, and continuous innovation. After continuous efforts, it has a number of high-tech invention patents.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
CE certification
Packing
