Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control

Products

SMT SPI Machine

Judy@szhonreal.com

+8618018772739

Contact Now

Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Woodencase
Delivery Period:	10-20Workdays
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	100SET/Month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

HONREAL

Certification

Model Number

HR-330K

PCB Size (L×W)～(L×W)mm:

50x50)～(450x330)

PCB Thickness:

Min0.6mm

Transport Direction:

Left To Right/right To Left(optional)

Transport Height:

900±20mm(or Customized)

Power Supply:

100-230V AC(customized) Single Phase, MAX 150V/A

Machine Size (L×W×H)mm:

500x620x1600mm

Highlight:

Mini PCB Loading Machine

PCB Loading Machine Automatic

Touch Screen mini pcb loader

Product Description

SMT Micro PCB Board Loading Machine SMT Mini PCB Loader

Description

This equipment is used for loading pcb .

Features

1.Solid and stable design.

2.Stable and reliable integrated control system.

3.Light touch LED membrane switch or touch screen control panel options available.

4.Uninterrupted loading .

5.Smooth and parallel width adjustment (leadscrew).

6.Pressure regulated on pusher's to prevent board damage .

7.Machine always fault monitoring .

8.SMEMA Compatible.


			Technical parameters

			Function
			This equipment is used for loading pcb .

			Maximum PCB capacity
			50 pcs

			PCB thickness
			Min0.6mm

			Cycle time
			Approx 6seconds

			Transport direction
			Left to right/right to left(optional)

			Transport height
			900±20mm(or customized)

			Power supply
			100-230V AC(customized) single phase, MAX 150V/A

Model No	HR-330K	HR-460K
PCB size(L×W)～(L×W)mm	(50x50)～(450x330)	(50x50)～(530x460)
Machine size (L×W×H)mm	500x620x1600	600x750x1600
Weight	120KG	140KG

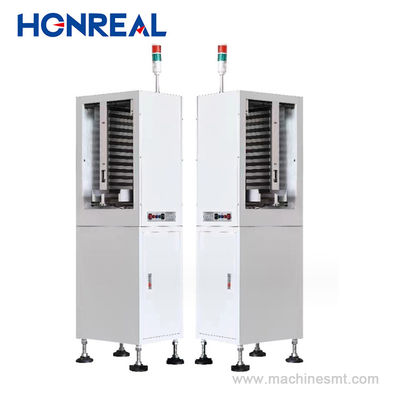

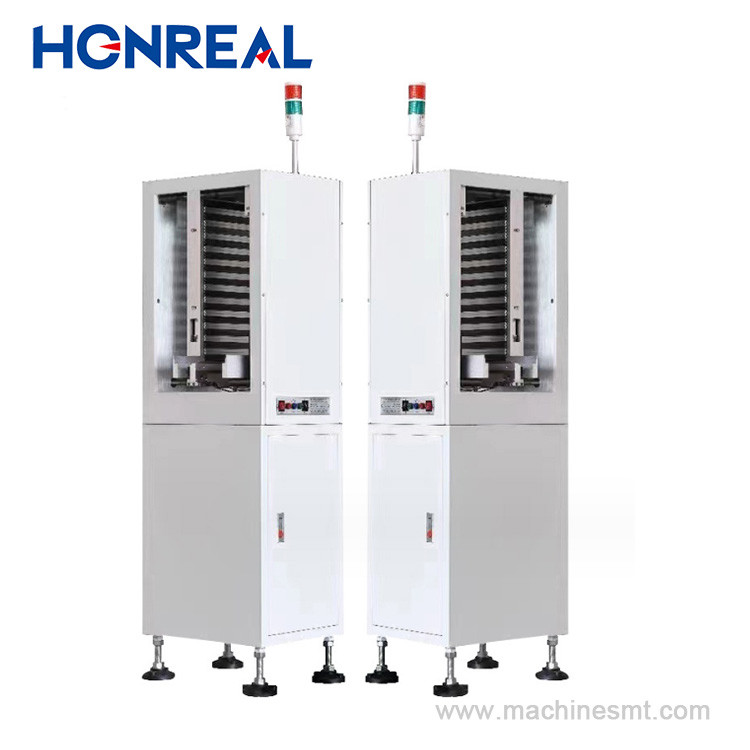

Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control 0

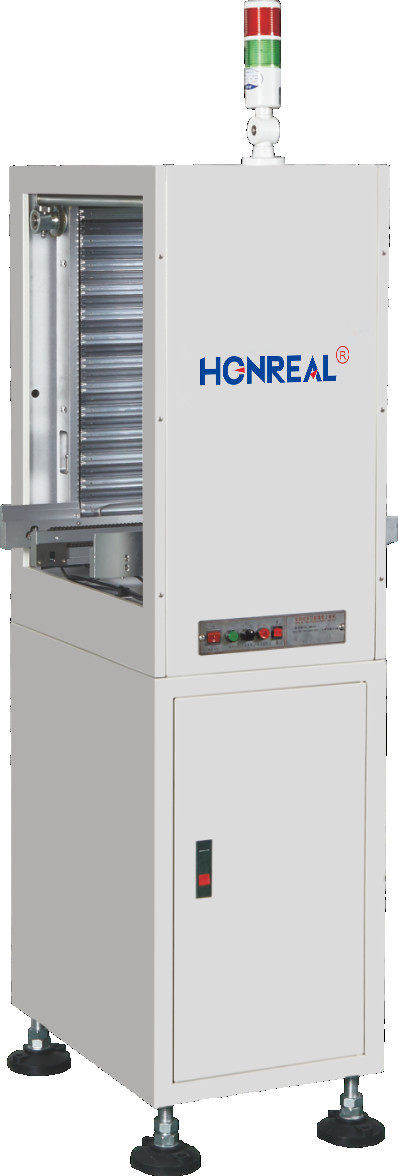

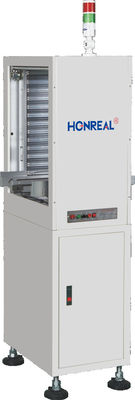

Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control 1

Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control 2

Certification
Automatic Mini PCB Loading Machine PCB micro Loader With Touch Screen Control 3

Packing

Contact Us

Company	Shenzhen Honreal Technology CO.,Ltd.
Address	No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel	+86755 2302 0279
Fax	+86 755 2330 6782
Zip code	518125
Skype/Whatsapp/Wechat	+8613715227009
Email:	Monica@szhonreal.com
