SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place

MOQ: 1set
Price: Negotiable
Standard Packaging: Woodencase
Delivery Period: 15Work Days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100sets/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HONREAL
Certification
CE ISO
Model Number
HR-800
Product Name:
SMT Auto Tape Cutting Machine
Cutting Method:
Circular Knife Moving Cutting
Driving Method:
Motor + Synchronous Belt
Cutting Length:
10-110 Mm
Cutting Width:
>800 Mm
Cutting Speed:
4m/min
Highlight:

Tape Cutting SMT Line Equipment

,

Pick Place SMT Line Equipment

,

SMT Line Equipment automatic

Product Description
SMT Auto Tape Cutting Machine
Scrap Tape Cutting SMT Line Equipment Automatic For Hanwha S1 S2 Pick And Place Machine
Product Specifications
Attribute Value
Product name SMT Auto Tape Cutting Machine
Cutting method Circular knife moving cutting
Driving method Motor + synchronous belt
Cutting Length 10-110 mm
Cutting width >800 mm
Cutting Speed 4m/min
Product Description

The SMT automatic tape cutting machine completely replaces manual operation, efficiently cutting waste tapes and films from SMT machines. The cut materials fall into the built-in vacuum anti-static recovery box for easy centralized processing.

This machine features an upper moving knife and lower positioning system, eliminating jamming issues common with traditional scissor-type cutters. It improves workplace organization, reduces labor costs, and enables intelligent operations.

Key Features
  • Handles various materials from 0.05mm film to 1.5mm bands
  • Compact design (Patent No. ZL201520023125.6) with customizable recovery area
  • Premium imported SKD-11 blades with 1-year guarantee
  • Patented rolling cutter system (Patent No. ZL201530007763.4) with extended blade life
  • Microcomputer intelligent control with adjustable cutting parameters
  • Safety sensors prevent operation when material box is removed
  • Limit switches prevent motor burnout
  • 1-year warranty with permanent after-sales service
HR-800 Specifications
Specification Detail
Model HR-800
Dimension L960×W295×H520mm
Transmission mode Gear assembly
Feeding range L815*W60mm
Net weight 45KG
Power supply AC220V, 50~60HZ
Control program Self-developed board
Cutting range L745*W25mm
Insurance 1A
Material box induction Photoelectric induction

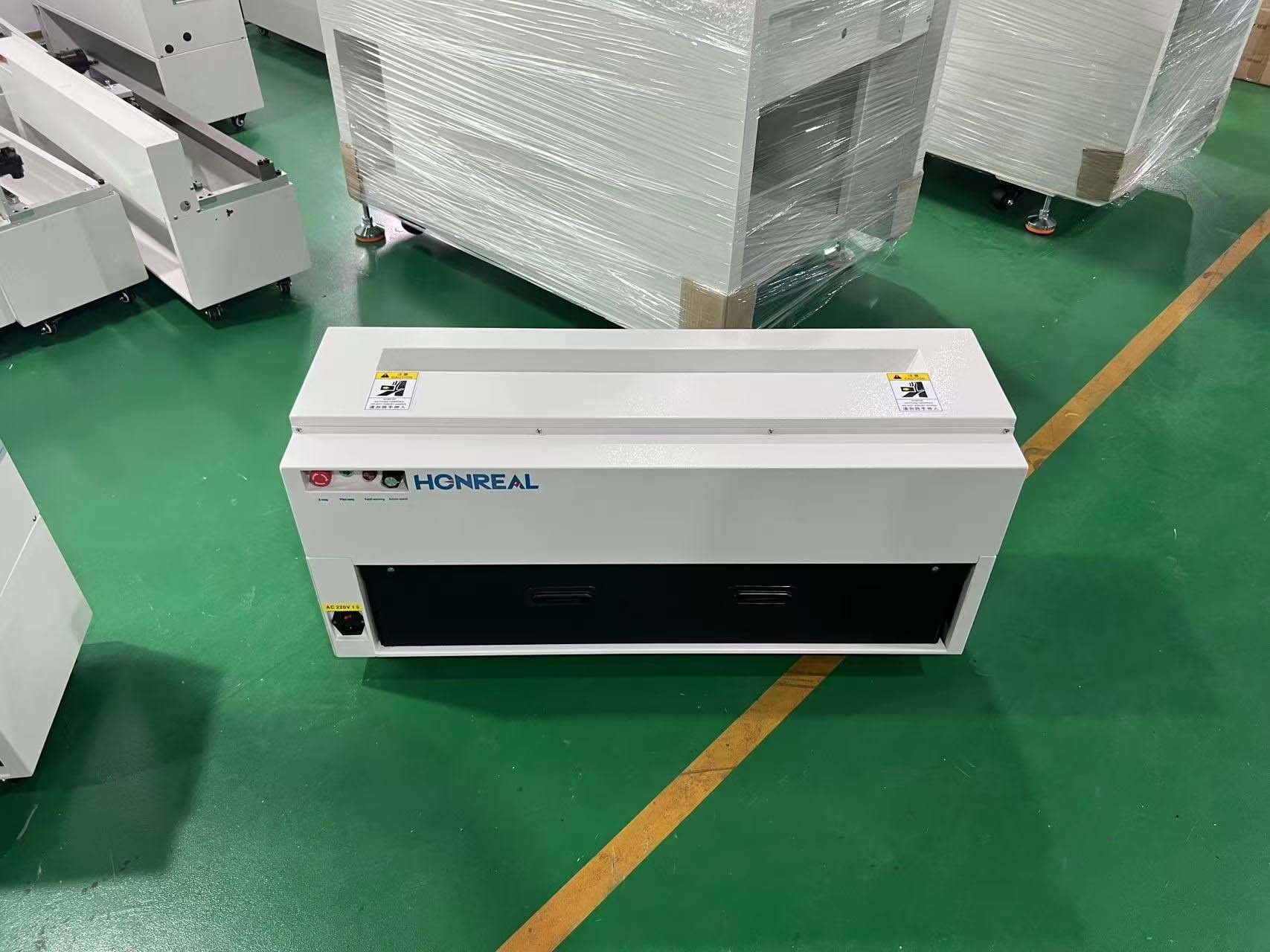

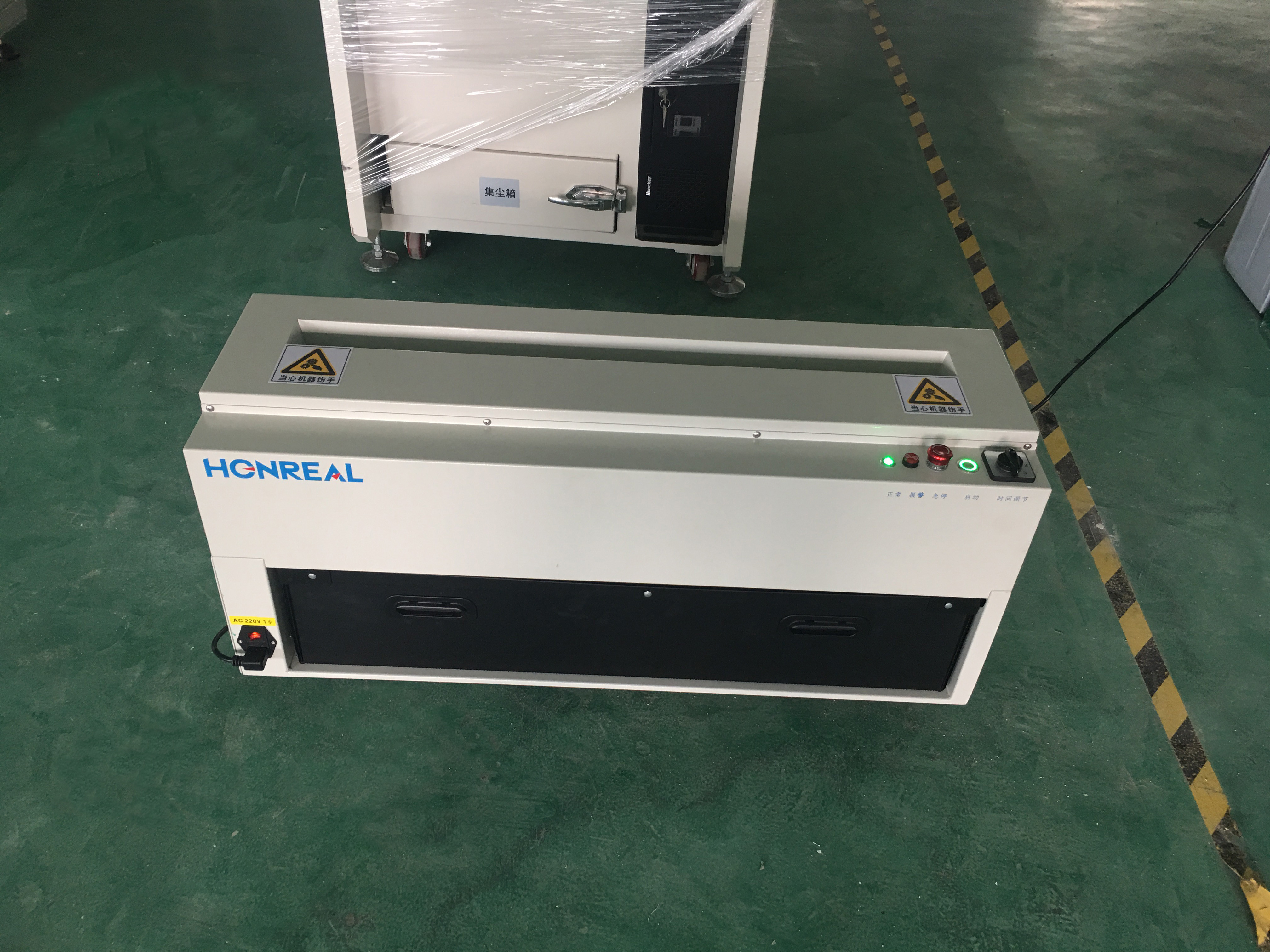

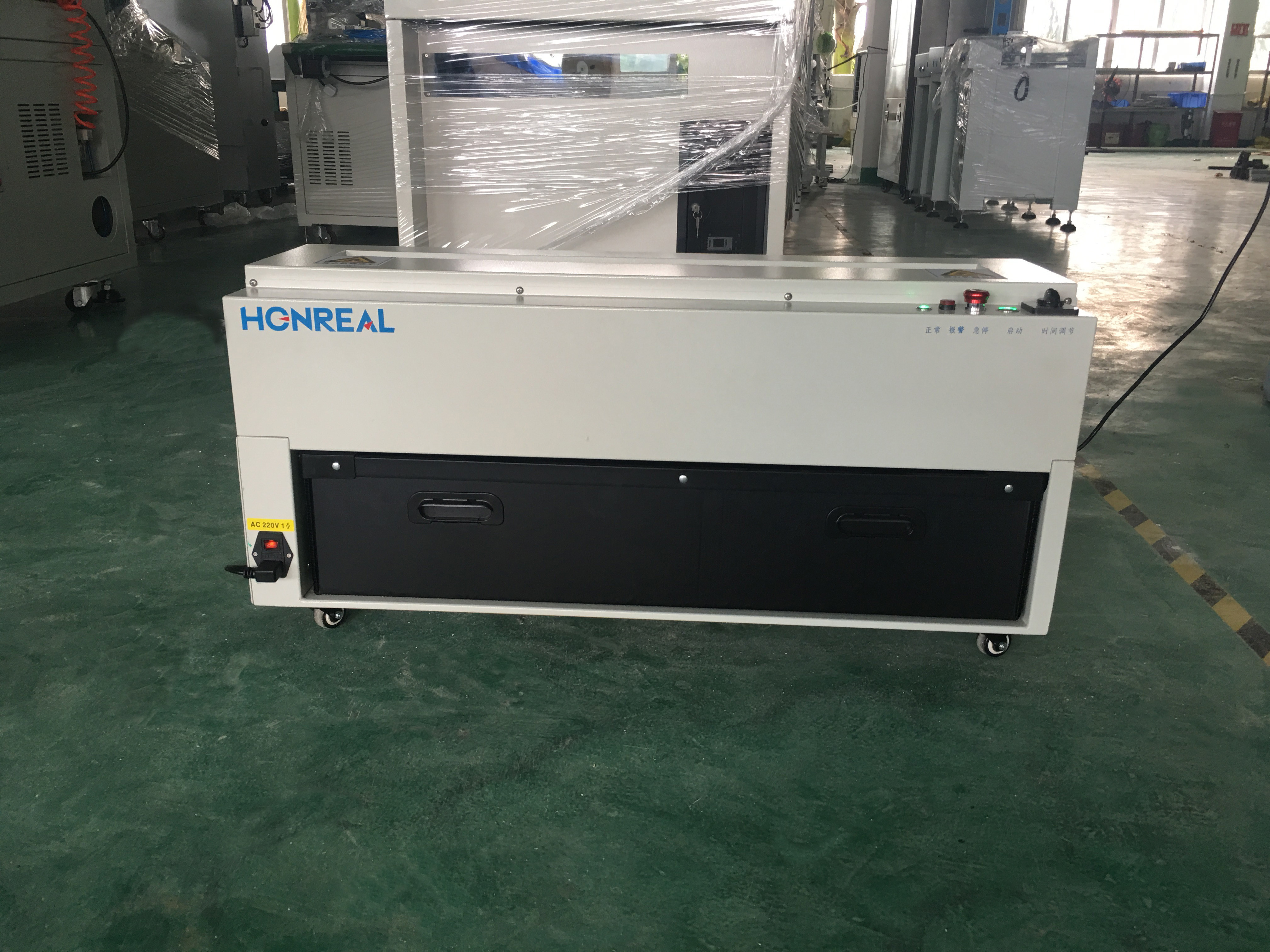

Product Images
SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 0 SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 1 SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 2
About Shenzhen Honreal Technology Co., Ltd

We are a national high-tech enterprise specializing in SMT equipment R&D, production, and sales, serving top global electronics companies. With 5 million registered capital, we combine technical expertise with innovative solutions to meet diverse customer needs.


Company

SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 3

Certifications
SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 4
Frequently Asked Questions
Is this machine easy to operate for first-time users?

Yes, we provide an English manual and guide video. Additional support is available via email, Skype, phone, or online service.

What training is provided?

Your engineers can visit our facility or follow the included training video and user manual.

Can I have my logo on the product?

Yes, we offer free custom logo service - just provide your requirements.

How do I purchase this machine?

Contact us to discuss pricing and terms. We'll send a proforma invoice, process payment, conduct quality checks, and arrange shipping by air or sea.

Packaging & Shipping

SMT Auto Tape Cutting Machine for Hanwha YAMAHA Pick and Place 5
