Aluminum PCB Board V-Cut Separator Separating Machine Pcb V Cut Machine SMD PCB Cutter
Product introduction:

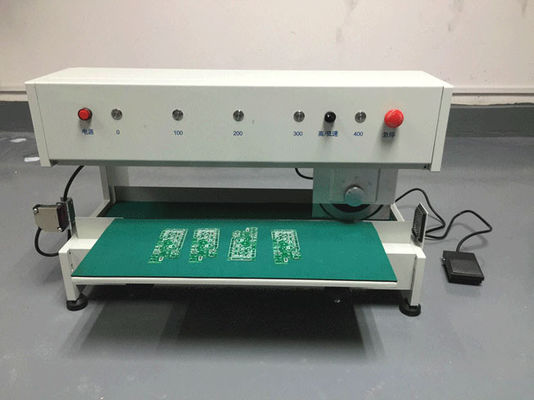

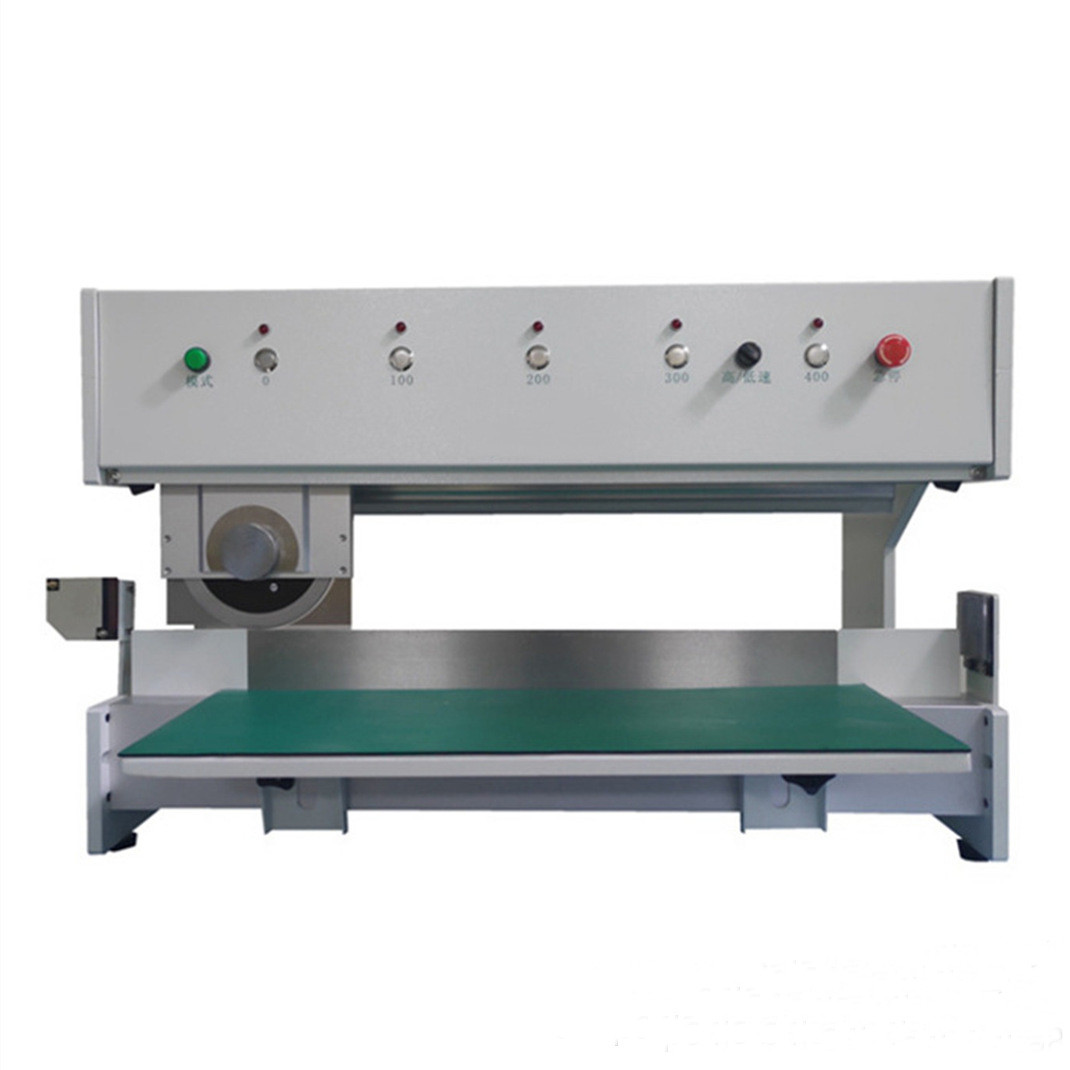

1.The nether linear blade is used to fix the PCB V-cut ,the upper circular blade moves to separ-
ate the PCB. By pressing the foot-pedal to control the action of circular blade.
2.Adopt step motor,can separate all kinds of V-cut PCBs.Max separate length 1200mm (400mm,600mm,900mm,1200mm is optional)
4.The stroke of the upper circular blade can preset .(setting rang :Between any two groups of 0,100 ,200,300,400mm )
5.Blade moving speed can switch between 300mm/s and 500mm/s.
6.The gap between two blades is easy to adjust
7.Operation is very safe, the circular blade is covered by material ,avoid the blade hurting han for free twice.d. Also can install an sensor ,when hand or foreign matter enter into the working area,it will stop immediately.
8.Blade material is SKD-II from Japan,long lifetime.During cutting,it can effectively decrease cutting stress to
avoid welding spot cracking.
9.Available PCB thickness:0.5-3.2mm
10.PCB V-cut thickness: 0.25-2.0mm
| Functional Specifications | |
| Function | HR-3000 |
| Machine size (L×W×H)mm | 880*370*420mm |
| Blade | SKD - II material imported from Japan, |
| Drive system | Taiwan brand stepper motor(or customized) |
| Control system | Independent research and development (or customized) |
| Spindle speed | 200mm/s |
| The tailgate depth adjustable range | 0-150mm |
| The largest PCB cutting width | 150mm |
| The largest PC board cut length | 400mm |
| PCB thickness | 0.5-3.2mm |
| The thickness of the V groove | 0.25-2.0mm |
| circular blade | fine-turning ±0-2mm |
| nether linear blade | adjustment 0-50mm |
| Power supply | AC220V 50-60HZ |
| Weight | 60Kg |
