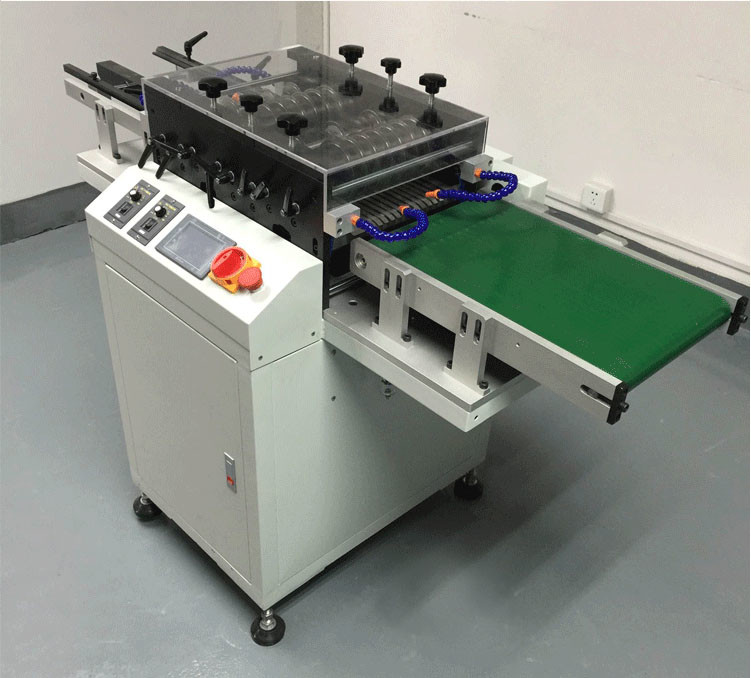

PCB Depaneling Machine Multi Blade LED Pcb Cutting Machine PCB Depanelizer multi blade cutting machine
Features:
1.It can cut many boards with multiple sets of knives work at the same time.
2.The knife flywheel is adjustable as a whole from 0 to 5mm
3.The distance between knives is regulable as well, satisfy to cutting the single PCB width from 15mm-20mm
4.The blade is made of Switzerland imported high speed and high precision steel material, which is durable and have a long service life.
5.It is convenient to adjust the cutting speed through rotary knob
6. No limits of the cutting length.
7.Thickness range of PCB: 0.5-3.2mm
8. With a conveyor belt line, the separated PCB can be send out directly to reduce pick- and-place.
9.The machine adopts multiple blade to separate boards with simple operation and high efficiency.
10. It can connect the production line to separate the PCB, fitted for batch production.
Specification:
|
Max cutting length |
No limit |
|
Min cutting length |
100mm |
|
Max cutting width: |
200mm |
|
Min PCB width |
8mm |
|
PCB thickness: |
0.5-3.2mm |
|
Feeding speed: |
0-500mm/s |
|
Working temperature |
10-35℃ |
|
Blade material(auto-lock function) |
Imported high precision steel |
|
Storge temperature |
-20-50℃ |
|
Dimension: |
1100*500*1050mm |
|
Packaging weight: |
425kgs |
