Professional Fully Automatic Dual Track Magazine Unloader LED Touch Screen Auto PCB Loader And Unloader SMEMA Interface

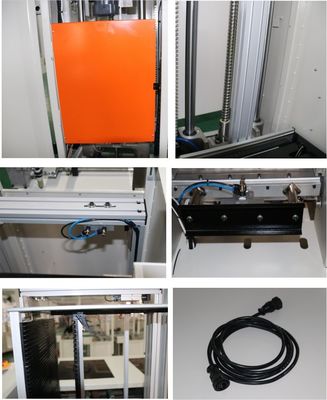

Product introduction:
1.PLC control system,Working is stably and reliably;
2.Easy to operate LED touch screen control interface;
3.The pneumatic clamps of top and bottom three point provided for the magazine alignment;
4.Electric pushing board design can ensure the PCB is unbroken;
5.Machine always fault monitoring;
6.The dual track design is small footprint;
7.Solid and stable design;
8.SMEMA port is compatible
|
Technical parameters |
|
| Function | This unit is used to collect PCBs into two magazines from dual track equipment at the same time. |
|
PCB thickness |
Min0.6mm |
|
Magazine number |
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select |
1-4(10mm step pitches) |
|
PCB loading time |
Approx 6 seconds |
|
Magazine change-over time |
Approx 30 seconds |
|
Transport direction |
Left to right/right to left(optional) |
|
Transport height |
900±20mm(or customized) |
|
Air pressure |
4-6 bar, MAX 30L/minute |
|
Power supply |
100-230V AC(customized) single phase, MAX 300V/A |
| Specifications | ||||
| Model No | HR-250SX | HR-330SX | HR-390SX | HR-460SX |
| PCB size (L×W)～(L×W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L×W×H)mm | 1700×1450×1200 | 1950×1610×1200 | 2210×1730×1200 | 2210×1870×1200 |
| Magazine size (L×W×H)mm | 355×320×563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 150kg | 180kg | 210kg | 250kg |
Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Certification
Packing
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
