Equipment characteristics and functions
1.1 Adopting German precision motors and linear guides, the printing of the scraper holder tends to be more stable;

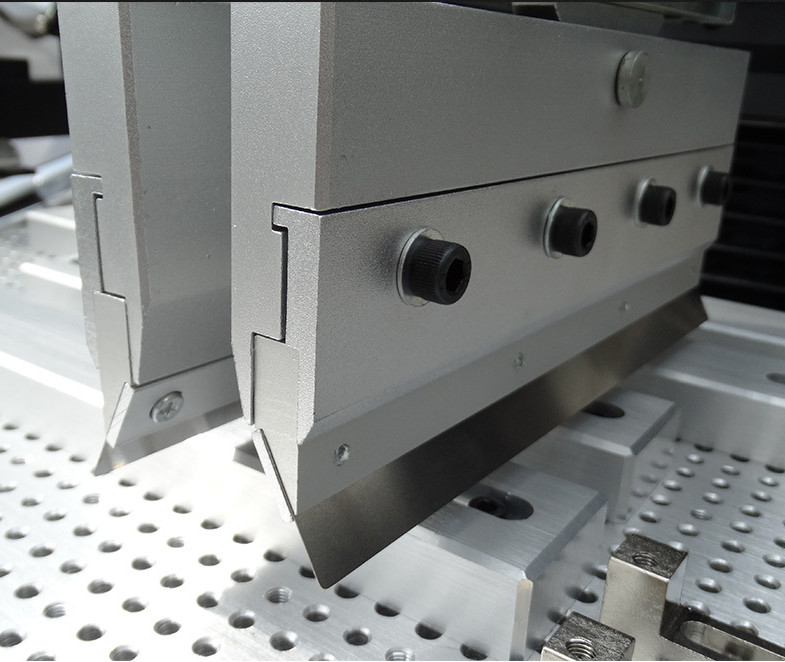

1.2 The printing pressure of the double scraper can be controlled separately by controlling the precision throttle valve behind the small cylinder of the printing head to set the speed of the scraper lifting and lowering to avoid resonance;
1.3 Input total power supply voltage: single-phase 220V 50/60Hz, power consumption 100W, online display of operating status;
1.4 The printing base can be lifted up by 450 and fixed, making it convenient for scraper loading and unloading and steel mesh cleaning;
The 1.5 printing base can be moved forward and fixed, making it easy to match the position of the steel mesh pattern to achieve better printing results;
The 1.6 mesh frame support arm can be adjusted left and right separately, suitable for the printing range of 470-750mm;
The 1.7 modular printing platform is equipped with a fixed slot and positioning PIN, which is fast to replace and easy to locate, suitable for single-sided and double-sided substrate operations;
1.8 The proofreading method adopts a mesh frame support arm movement to coordinate with the X, Y, and Z correction and adjustment of printed materials (platens), making the correction convenient and simple;

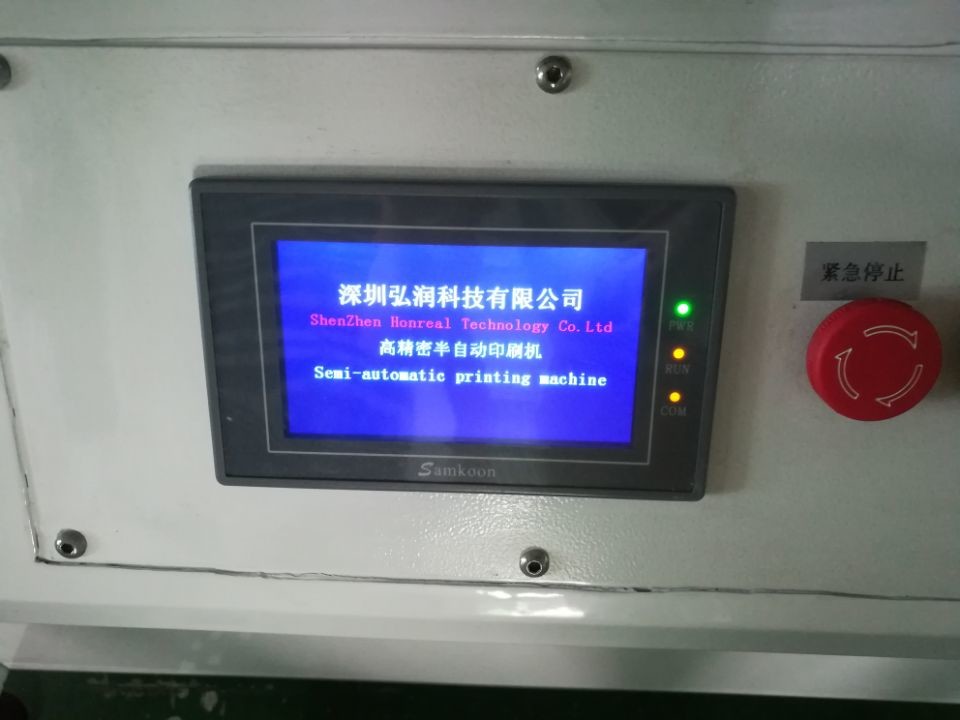

1.9 Adopting Mitsubishi PLC control, human-machine interface touch control, with options for single/multiple printing, as well as manual or automatic methods;
1.10 The scraper seat can be adjusted back and forth, and the printing scraper can be adjusted+150 according to the needs of product printing;
1.11 Adopting a Xingchen cylinder and a magnetic proximity switch, the workbench moves back and forth, and the printing surface can reach an accuracy of+0.001mm in place;
1.12 Use air pressure of 4-6 kg/cm2, printing table area of 300x400mm and 450x450mm (suitable for larger sizes), printing accuracy of+0.05mm, machine repeatability of+0.02mm;
1.13 Equipped with automatic counting function and frequency setting, facilitating production statistics;
| Technical parameters | |
|
Function |

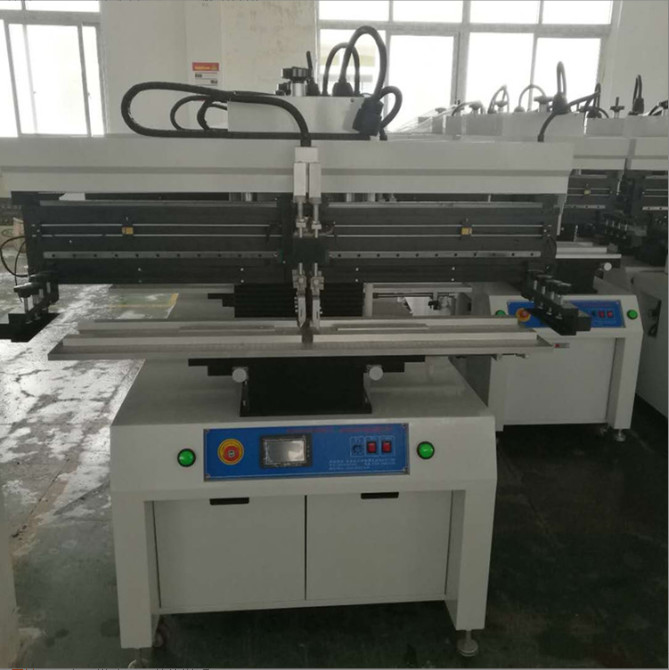

This unit is used to print solder paste onto PCB board |
| Printing table sizes | 300×400mm(or customized) |
| The frame size | 370×470mm,420×520mm,550×650mm |
| PCB size | 50x50~300×400mm |
| PCB thickness | 0.2 - 5.0mm |
| Printing position fixed | PCB Outer Or Pin Positioning |
| Bedplate fine-tuning | Front/Back±10mm R/L±10mm |
| Printing precision | ±0.02mm |
| Repetitive precision | ±0.05mm |
| Minimum spacing | 0.35mm |
| Air pressure | 4-6Kgf/Cm2 |
| Power supply | 220V 50/60Hz 100W |
| Specifications | ||||
|
Model No |
HR-1068 | HR-1068A | HR-1068B | HR-1068C |
| PCB size (L×W)~(L×W)mm | (50x50)~(300x400) | (50x50)~(300x600) | (50x50)~(300x1200) | (50x50)~(300x1500) |
| Steel mesh size (L×W)mm~(L×W)mm | (370x470~(550x650) | (370x470)~(550x850) | (370x470~(550x1450) | (370x470)~(550x1750) |
| Printing table sizes (L×W)mm | 300×400 | 300×650 | 300×1250 | 400×1550 |
| Machine size (L×W×H)mm | 860×760×1700 | 1060×760×1700 | 1660×760×1700 | 1960×760×1700 |
| Weight | 260kg | 300kg | 340kg | 380kg |
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
