Name: Fully Automatic PCB Loader for SMT Line 350x250mm Vacuum Suction
Brand: Shenzhen Honreal Technology Co.,Ltd
SKU: HR-250XS
Price: 4,200.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

PCB Thickness: Min0.6mm

PCB Loading Time: Approx 6 Seconds

Transport Height: 900±20mm(or Customized)

Air Pressure: 4-6 Bar, MAX30L/minute

Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A

PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm

Machine Size (L×W×H)mm: 1900×850×1200mm

Weight: 180kg

Highlight:

Automatic PCB Loading Machine

PCB Loading Machine Vacuum Suction

Smt PCB Loader Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: HONREAL

Certification: CE

Model Number: HR-250XS

Payment & Shipping Terms

Packaging Details: Woodencase

Delivery Time: 10-20Workdays

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100SET/Month

Gallery

Fully Automatic PCB Loader for SMT Line 350x250mm Vacuum Suction

Product Description

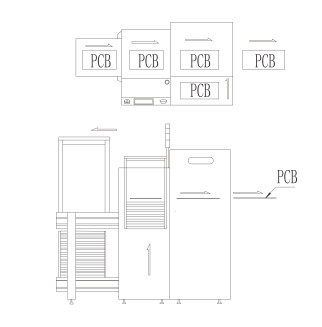

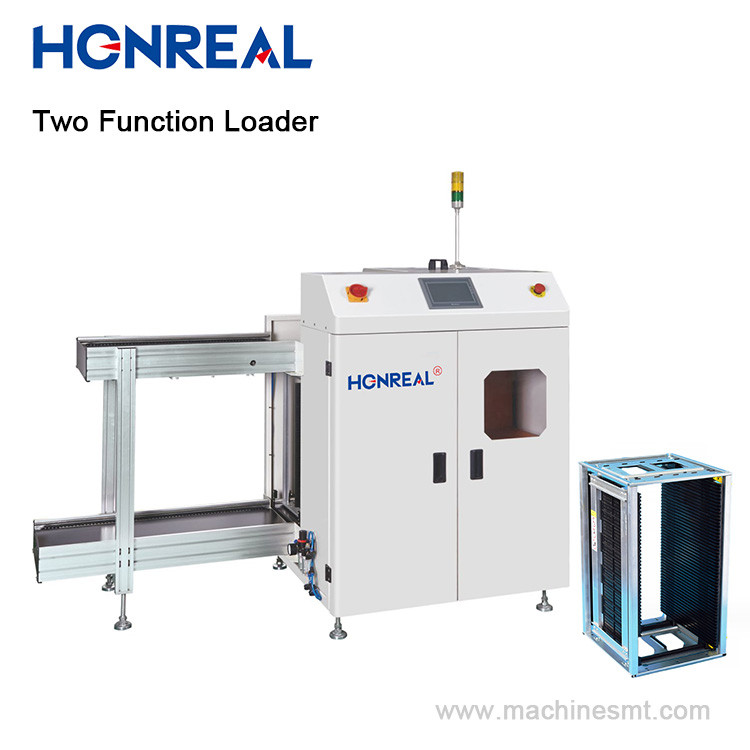

Fully Automatic PCB Loading Machine Vacuum Suction For Smt Line

Product Specifications

Attribute	Value
PCB thickness	Min0.6mm
PCB loading time	Approx 6 seconds
Transport height	900±20mm(or customized)
Air pressure	4-6 bar, MAX30L/minute
Power supply	100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm	(50x50)～(350x250)mm
Machine size (L×W×H)mm	1900×850×1200mm
Weight	180kg

Product Description

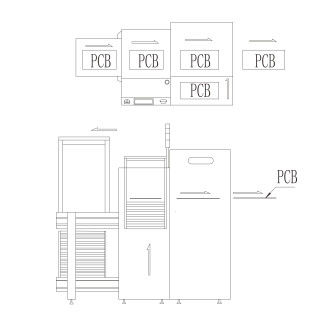

Automatic PCB Magazine Vacuum Suction Loader For Smt Line

This equipment is used for the automatic loading operation of double-sided PCB boards and PCB bare boards on SMT production lines.

Key Features

PLC control system for stable and reliable operation
LED Touch screen control panel for easy operation
Pneumatic clamps with three-point alignment for magazine positioning
Effective thrust design to prevent PCB damage
Continuous fault monitoring system
Adjustable suction cup positions for flexible PCB handling
Solid and stable machine construction
SMEMA port compatibility

Technical Parameters

Function: This equipment serves as a line source with optional suction PCB function for blank PCBs and load PCB function for non-blank PCBs, enhancing production efficiency.

PCB thickness: Min0.6mm

Magazine number: Transport up:1pcs, transport down:1pcs (customizable)

Step pitches select: 1-4 (10mm step pitches)

PCB loading time: Approx 6 seconds

Magazine change-over time: Approx 30 seconds

Transport direction: Left to right/right to left (optional)

Air pressure: 4-6 bar, MAX10L/minute

Power supply: 100-230V AC (customized) single phase, MAX 300V/A

Model Specifications

Model No	HR-250XS	HR-330XS	HR-390XS	HR-460XS
PCB size (L×W)～(L×W)mm	(50x50)～(350x250)	(50x50)～(455x330)	(50x50)～(530x390)	(50x50)～(530x460)
Machine size (L×W×H)mm	1900×850×1200	2250×1050×1200	2600×1250×1200	2600×1480×1200
Magazine size (L×W×H)mm	355×320×563	460×400×563	535×460×570	535×530×570
Weight	180kg	220kg	260kg	285kg
Send height	900±20mm
