Name: Mini SMT PCB Magazine Loader for 50x50 to 350x250mm Boards
Brand: Shenzhen Honreal Technology Co.,Ltd
SKU: HR-250
Price: 4,200.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

PCB Thickness: Min0.6mm

Step Pitches Select: 1-4(10mm Step Pitches)

Transport Height: 900±20mm(or Customized)

Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A

PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)

Machine Size (L×W×H)mm: 1080×770×1200

Magazine Size (L×W×H)mm: 355×320×563

Weight: 110kg

Highlight:

SMT PCB Loader Unloader

Mini PCB Loader Unloader

Magazine mini pcb loader

Basic Infomation

Place of Origin: CHINA

Brand Name: HONREAL

Certification: CE

Model Number: HR-250

Payment & Shipping Terms

Packaging Details: Woodencase

Delivery Time: 10-20Workdays

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100SET/Month

Gallery

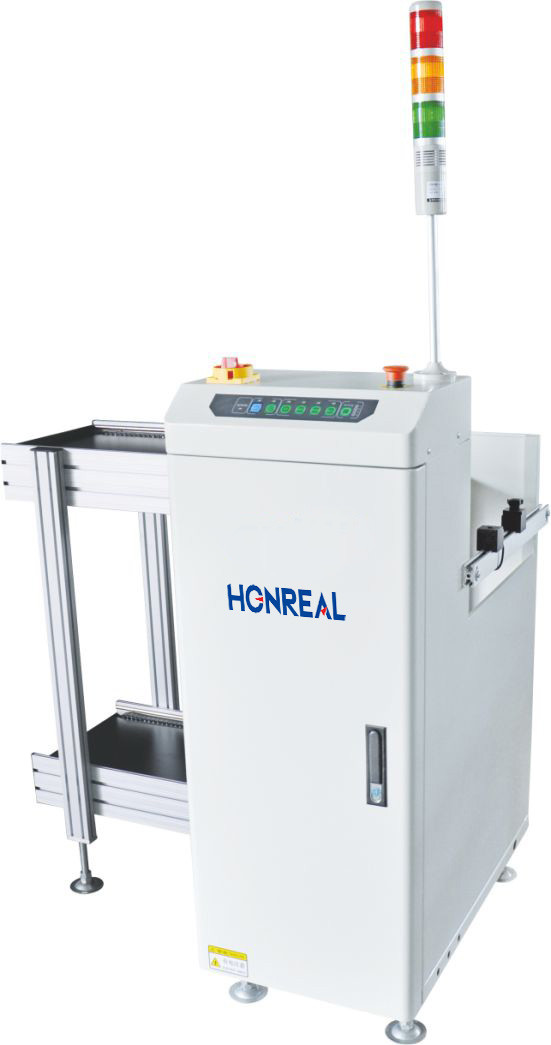

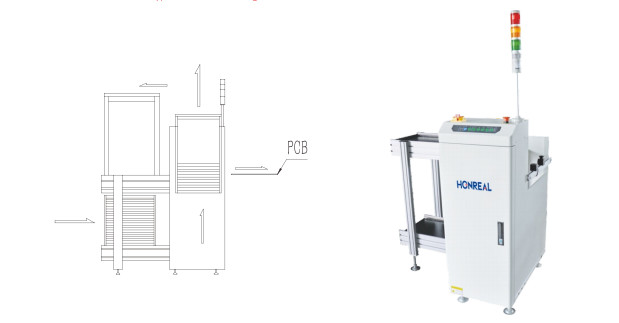

Mini SMT PCB Magazine Loader for 50x50 to 350x250mm Boards

Product Description

Mini Compact SMT Line PCB Magazine Loader

Space-saving solution for efficient PCB board transmission with OEM/ODM services available.

Key Features

Compact design optimized for space efficiency
Stable and reliable PLC control system
User-friendly LED touch screen interface
Pneumatic clamps with three-point alignment system
Effective thrust design to prevent PCB damage
3-magazine loading capacity
Configurable transport direction (left-right or right-left)
Comprehensive fault monitoring system
Robust and stable construction
SMEMA port compatibility

Technical Specifications

Parameter	Value
PCB Thickness	Min 0.6mm
Step Pitches Selection	1-4 (10mm step pitches)
Transport Height	900±20mm (customizable)
Power Supply	100-230V AC (customizable), single phase, MAX 300V/A
PCB Size Range (L×W)	(50x50)mm to (350x250)mm
Machine Dimensions (L×W×H)	1080×770×1200mm
Magazine Dimensions (L×W×H)	355×320×563mm
Weight	110kg

Performance Parameters

Function	Transfers PCBs from magazine to SMT production line
Magazine Capacity	Transport up: 1pc, transport down: 1pc (customizable)
PCB Loading Time	Approximately 6 seconds
Magazine Change-over Time	Approximately 30 seconds
Transport Direction	Configurable (left-right or right-left)
Air Pressure	4-6 bar, MAX 30L/minute

Model Specifications

Model No	HR-250D	HR-330D	HR-390D	HR-460D
PCB Size Range (L×W)	(50x50)～(350x250)mm	(50x50)～(455x330)mm	(50x50)～(530x390)mm	(50x50)～(530x460)mm
Machine Dimensions	1080×770×1200mm	1280×850×1200mm	1450×920×1200mm	1450×990×1200mm
Magazine Dimensions	355×320×563mm	460×400×563mm	535×460×570mm	535×530×570mm
Weight	110kg	130kg	150kg	165kg

Product Images

About Our Company

Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in the research, development, production, and sales of SMT equipment. We serve top-tier electronic companies worldwide with our innovative solutions and technical expertise. With a registered capital of 5 million and a skilled technical team, we are committed to establishing an improved product supply chain and service team to meet diverse customer requirements.

Packaging

Certifications

Frequently Asked Questions

How can you guarantee your product quality?

We conduct rigorous testing on every machine before delivery to ensure excellent performance and reliability.

How is the training provided?

After purchase, your engineers can receive training at our facility or easily learn operation through our training videos and comprehensive user manual included with the machine.

Can I have my logo on the product?

We fully support customized logo services at no additional cost. Simply provide your requirements.

Is it difficult to operate these machines?

Our machines are designed for easy operation. Most clients become proficient within 2 days of training.
