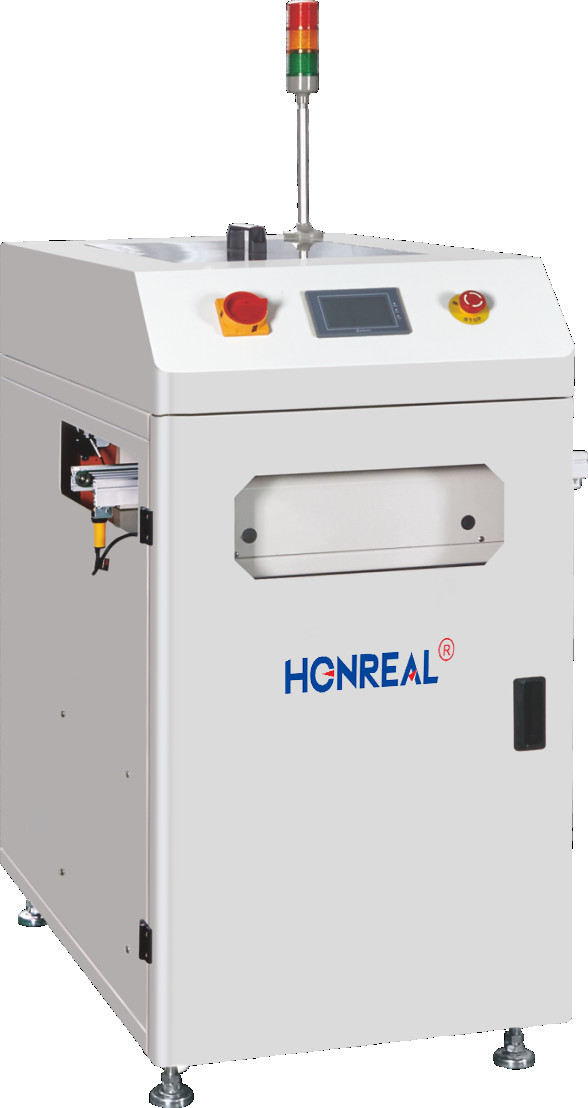

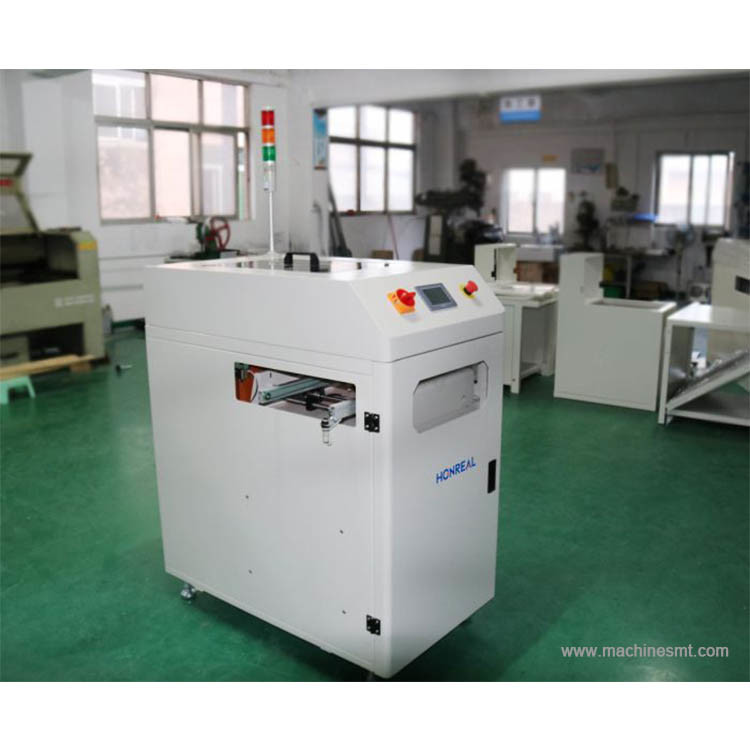

Touch Screen SMT PCB Vacuum Loader for PCBA Assembly Line

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Woodencase
Delivery Period:	10-20Workdays
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	100SET/Month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

HONREAL

Certification

Model Number

HR-350XB

PCB Thickness:

Min0.6mm

Maximum PCB Capacity:

300 Pcs

Transport Direction:

Left To Right/right To Left(optional)

Transport Height:

900±20mm(or Customized)

Air Pressure:

4-6 Bar, MAX30 L/minute

Power Supply:

100-230V AC(customized) Single Phase, MAX 300V/A

PCB Size (L×W)～(L×W)mm:

(50x50)～(450x350)mm

Machine Size (L×W×H)mm:

750×1050×1200mm

Highlight:

Touch Screen PCB Loader And Unloader

PCB Loader And Unloader Vacuum

Bare Boards PCB Handling Equipment

Product Description

Touch Screen SMT PCB Vacuum Loader Suction Loader PCB Handling Equipment

Product Specifications

Attribute	Value
PCB thickness	Min0.6mm
Maximum PCB capacity	300 pcs
Transport direction	Left to right/right to left (optional)
Transport height	900±20mm (or customized)
Air pressure	4-6 bar, MAX30 L/minute
Power supply	100-230V AC (customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm	(50x50)～(450x350)mm
Machine size (L×W×H)mm	750×1050×1200mm

Product Description

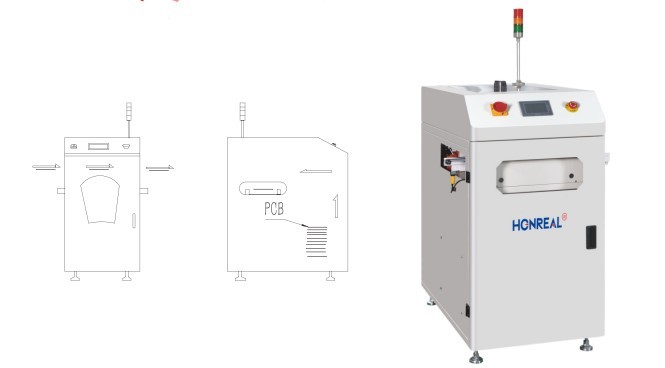

Automatically Loading PCB Handling Equipment Vacuum Bare Boards Loader For PCBA Assembly Line

This equipment is used for PCB bare boards material operation on the production line.

Key Features

Applies to the PLC + touch screen control, easy to operate
Enclosed design ensures highest level of safety
Adjustable position of suction nozzle to ensure proper PCB clamping
Smooth and parallel width adjustment (lead screw)
Smooth and accurate translation (stepping motor)
Minimized transmission gap between conveyors
Equipped with SMEMA signal

Technical Parameters

Function	PCB bare boards material operation on the production line
Maximum PCB capacity	300 pcs Min0.6mm
PCB loading time	Approx 6 seconds
Transport direction	Left to right/right to left (optional)
Transport height	900±20mm (or customized)
Air pressure	4-6 bar, MAX30L/minute
Power supply	100-230V AC (customized) single phase, MAX 300V/A

Model Specifications

Model No	HR-350XB	HR-460XB
PCB size (L×W)～(L×W)mm	(50x50)～(450x350)	(50x50)～(550x460)
Machine size (L×W×H)mm	750×1050×1200	850×1150×1200
Weight	120kg	160kg

About Shenzhen Honreal Technology Co., Ltd

Shenzhen Honreal Technology Co., Ltd is a national high-tech enterprise specializing in SMT equipment research and development, production, and sales. We service the world's top 500 electronic companies with a registered capital of 5 million. Our experienced technical team and excellent innovation capabilities allow us to create better product supply chains and service teams to meet diverse customer needs.

Services and Commitments

Before purchase, we conduct comprehensive analysis of requirements to recommend the most suitable products. During production, we strictly follow contract terms to ensure timely delivery of intact products.

Our Company Promises:

Prompt response to all quality feedback
Installation, commissioning, and training per contract requirements
Long-term technical support and timely supply of consumables/spare parts

Certification

Packing

Touch Screen SMT PCB Vacuum Loader for PCBA Assembly Line 3

Frequently Asked Questions

Q: How can you guarantee your sales' quality?

A: We rigorously test every machine before delivery to ensure excellent performance.

Q: How is the training?

A: Your engineers can visit our company or easily learn operation through training videos and user manuals included with the machine.

Q: Can I have my logo on the product?

A: We support free customized logo service - just provide your requirements.

Q: Is it hard to use these machines?

A: No, most clients learn to operate the machines within 2 days.
