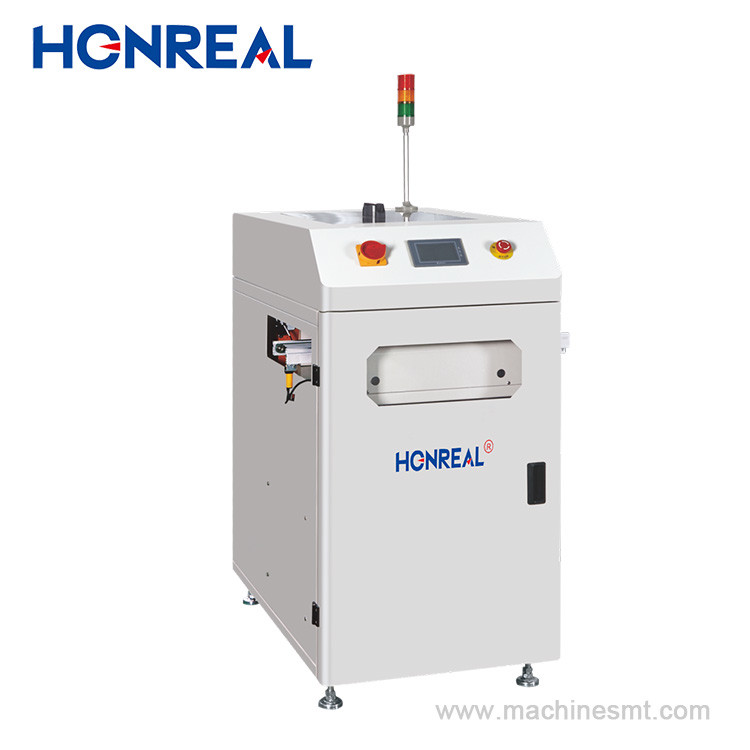

300PCS Automatic PCB Vacuum Loader with SMEMA Signal

MOQ: 1set
Price: Negotiable
Standard Packaging: Woodencase
Delivery Period: 10-20Workdays
Payment Method: L/C,T/T,Western Union
Supply Capacity: 100SET/Month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HONREAL
Certification
CE
Model Number
HR-350XB
PCB Thickness:
Min0.6mm
Maximum PCB Capacity:
300 Pcs
Transport Height:
900±20mm(or Customized)
Air Pressure:
4-6 Bar, MAX30 L/minute
Power Supply:
100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm:
(50x50)～(450x350)mm
Machine Size (L×W×H)mm:
750×1050×1200mm
Weight:
120kg
Highlight:

Vacuum PCB Loader And Unloader

,

PCB Loader And Unloader SMEMA

,

Bare Board automatic pcb unloader

Product Description
300PCS Capacity Automatic Loading Bare Boards PCB Vacuum Loader With SMEMA Signal
Product Specifications
PCB thickness Min 0.6mm
Maximum PCB capacity 300 pcs
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 30 L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
PCB size (L×W) (50x50)～(450x350)mm
Machine size (L×W×H) 750×1050×1200mm
Weight 120kg
Product Description
Automatic Bare Board Vacuum PCB Loader Machine for SMT Assembly Line with SMEMA Signal
This equipment is used for PCB bare boards material operation on the production line.
Key Features
  • PLC + touch screen control for easy operation
  • Enclosed design ensures highest level of safety
  • Adjustable suction nozzle position for secure PCB clamping
  • Smooth and parallel width adjustment (lead screw)
  • Smooth and accurate translation (stepping motor)
  • Minimized transmission gap between conveyors
  • SMEMA signal compatible
Technical Parameters
Function PCB bare boards material operation on production line
Maximum PCB capacity 300 pcs Min 0.6mm
PCB loading time Approx 6 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 30L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
Model Specifications
Model No HR-350XB HR-460XB
PCB size (L×W) (50x50)～(450x350)mm (50x50)～(550x460)mm
Machine size (L×W×H) 750×1050×1200mm 850×1150×1200mm
Weight 120kg 160kg
300PCS Automatic PCB Vacuum Loader with SMEMA Signal 0 300PCS Automatic PCB Vacuum Loader with SMEMA Signal 1
About Shenzhen Honreal Technology Co., Ltd.
We are a prominent national high-tech enterprise specializing in the research, development, production, and sales of SMT equipment. We serve renowned electronic companies among the world's top 500. With a registered capital of 5 million, we have a highly skilled technical team and remarkable aptitude for technical innovation.
Our objective is to establish an improved product supply chain and service team to fulfill diverse customer requirements. We are committed to comprehending customer needs and delivering valuable services that exceed expectations.
300PCS Automatic PCB Vacuum Loader with SMEMA Signal 2 300PCS Automatic PCB Vacuum Loader with SMEMA Signal 3 300PCS Automatic PCB Vacuum Loader with SMEMA Signal 4 300PCS Automatic PCB Vacuum Loader with SMEMA Signal 5
Our Services and Commitments
  • Comprehensive analysis of customer requirements before purchase
  • Recommendation of most suitable products based on actual needs
  • Clear communication about product performance characteristics
  • Strict adherence to contract terms for production and delivery
  • Prompt response to quality feedback
  • Installation, commissioning, and training services
  • Long-term technical support
  • Adequate supply of consumables and spare parts
Contact Information
Company Shenzhen Honreal Technology CO.,Ltd.
Address No15, Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel +86 755 2302 0279
Fax +86 755 2330 6782
Zip code 518125
Skype/Whatsapp/Wechat +8613715227009
Email Monica@szhonreal.com
