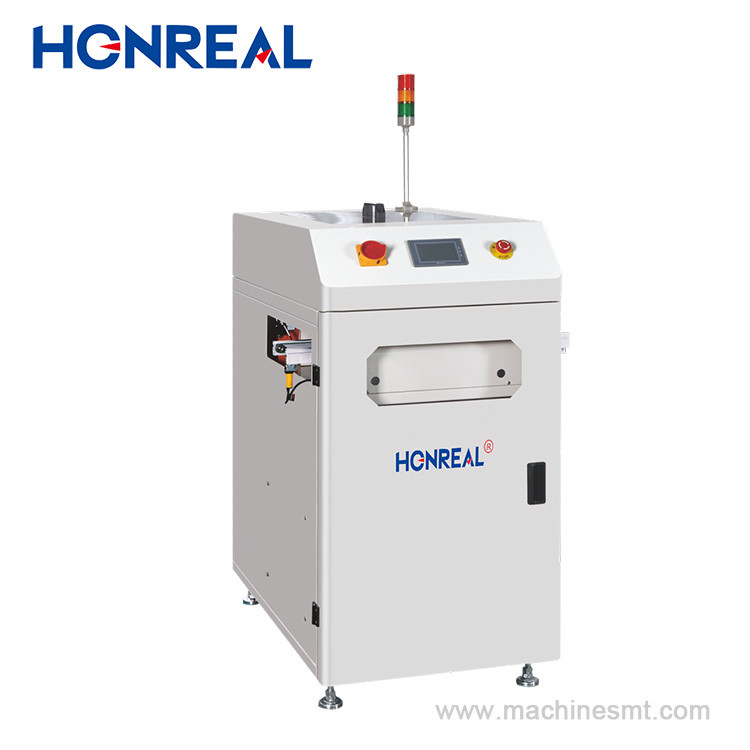

Automatic Bare Board Vacuum PCB Loader Machine For Smt Assembly Line With SMEMA Signal
Description
This equipment is used for PCB bare boards material operation on the production line
Features
1.Applies to the PLC + touch screen control, easy to operate.
2.Enclosed design ensures highest leavel of safety.
3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
4.Smooth and parallel width adjustment (lead screw)
5.Smooth and accurate translation (stepping motor)
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
| Technical parameters | |
| Function |
This unit is used to PCB bare boards material operation on the production line |
|
Maximum PCB capacity |
300 pcs Min0.6mm |
|
PCB loading time |
Approx 6 seconds |
| Transport direction | Left to right/right to left(optional) |
| Transport height | 900±20mm(or customized) |
| Air pressure | 4-6 bar, MAX30L/minute |
| Power supply | 100-230V AC(customized) single phase, MAX 300V/A |
| Specifications | ||
|
Model No
|
HR-350XB | HR-460XB |
| PCB size (L×W)～(L×W)mm | (50x50)～(450x350) | (50x50)～(550x460) |
| Machine size (L×W×H)mm | 750×1050×1200 | 850×1150×1200 |
| Weight | 120kg | 160kg |
Who We Are ?
Shenzhen Honreal Technology Co., Ltd. is recognized as a prominent national high-tech enterprise, specializing in the research, development, production, and sales of SMT equipment. We proudly serve renowned electronic companies listed among the world's top 500. Our company has a registered capital of 5 million, accompanied by a highly skilled technical team and a remarkable aptitude for technical innovation. Our enduring objective is to establish an improved product supply chain and service team, aimed at fulfilling diverse customer requirements. We are committed to comprehending our customers, prioritizing their needs, and delivering valuable services that exceed expectations.
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
