APPLICATION

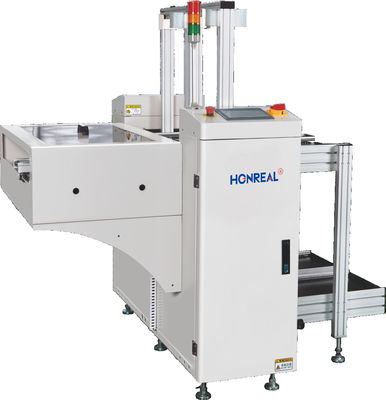

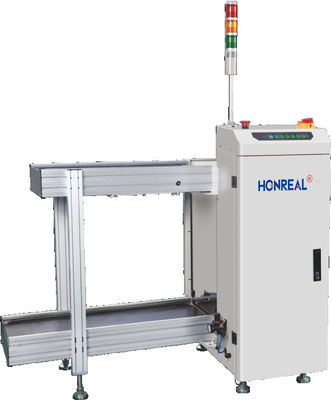

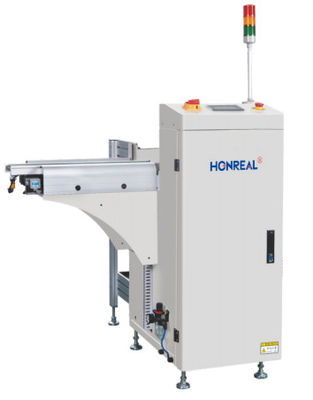

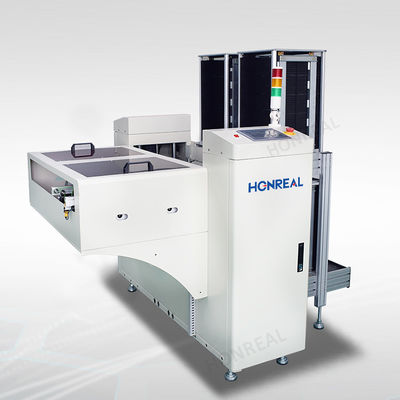

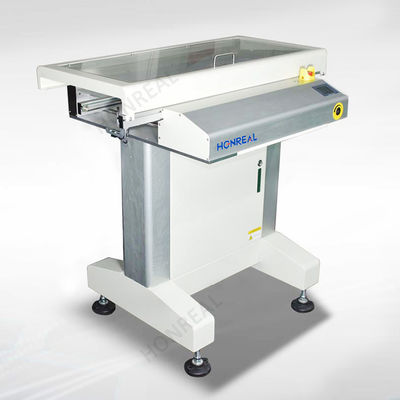

The PCB NG/OK Unloader is used for good/bad PCB separation. The OK and NG PCB
after being tested by test machine can be separated and sent to two different magazines.
Features
|
Technical parameters
|
|
| Function | This equipment is used behind AOI,by receiving AOI signal,NG and OK PCB automatically stored separately . |
|
PCB thickness
|
Min0.6mm |
|
Magazine number
|
Transport up:1pcs,transport down:1ps,(or customized) |
|
Step pitches select
|
1-4(10mm step pitches) |
|
PCB loading time
|
Approx 6 seconds |
|
Magazine change-over time
|
Approx 30 seconds |
|
Transport direction
|
Left to right/right to left(optional) |
|
Transport height
|
900±20mm(or customized) |
|
Air pressure
|
4-6 bar, MAX30L/minute |
|
Power supply
|
100-230V AC(customized) single phase, MAX 300V/A |
|
Specifications
|
||||
|
Model No
|
HR-250NG | HR-330NG | HR-390NG | HR-460NG |
| PCB size (L*W)～(L*W)mm | (50x50)～(350x250) | (50x50)～(455x330) | (50x50)～(530x390) | (50x50)～(530x460) |
| Machine size (L*W*H)mm | 1700*1450*1200 | 1950×1610×1200 | 2210×1730×1200 | 2210×1870×1200 |
| Magazine size(L*W*H)mm | 355*320*563 | 460×400×563 | 535×460×570 | 535×530×570 |
| Weight | 150kg | 180kg | 210kg | 250kg |
