Name: Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment
Brand: Shenzhen Honreal Technology Co.,Ltd
SKU: HR-330T
Price: 4,200.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

PCB Thickness: Min0.6mm

Transport Direction: Left To Right/right To Left(optional)

Power Supply: 100-230V AC(customized) Single Phase, MAX 150V/A

PCB Size (L×W)～(L×W)mm: 50x50)～(450x330)

Machine Size (L×W×H)mm: 500x620x1600mm

Weight: 120KG

Highlight:

PCB Loader And Unloader Mini

Stacked PCB Loader And Unloader

Recirculation SMT Handling Equipment

Basic Infomation

Place of Origin: CHINA

Brand Name: HONREAL

Certification: CE

Model Number: HR-330T

Payment & Shipping Terms

Packaging Details: Woodencase

Delivery Time: 10-20Workdays

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100SET/Month

Gallery

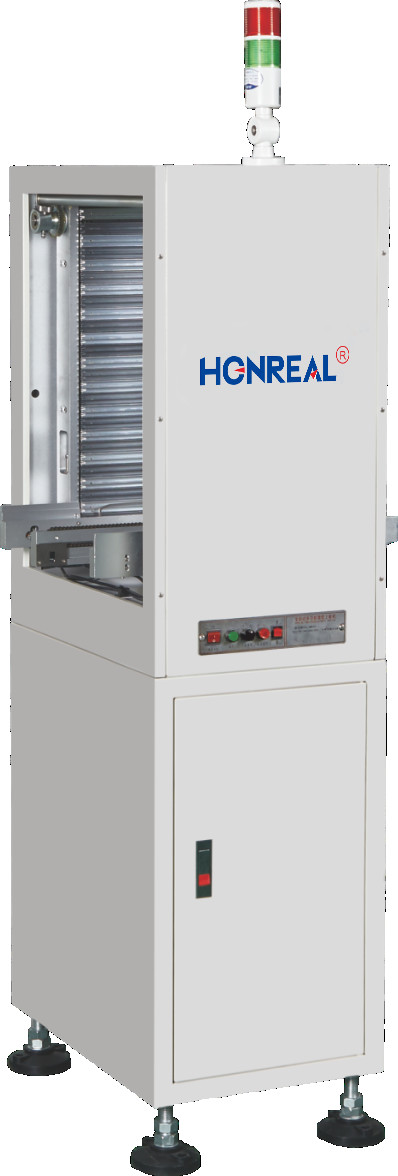

Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment

Product Description

Mini PCB Loader SMT Handling Machine PCB Stacked recirculation loader

Description

This equipment is used for loading pcb .

Features:

1. Touch screen control panel, easy to operate; reliable integrated control system;

2. Small and flexible, covering an area of only 0.25 square meters, durable, suitable

3. With strong practicability, this equipment can be used by semi-automatic and full-automatic printing machines, single and double-sided boards can be placed, and automatic alarm without blocks;

4. Strong reliability, small amount of movement, less abrasion, all metal materials;

5. Improve the efficiency. When the patch machine has a signal and needs to PCB, the board-mounted machine will supply the board on time, and there will be 5 alarm prompts automatically without board and real-time fault monitoring;

6. The panels placed obliquely can be automatically leveled and sent;

7. Balanced and stable width adjustment device;

8. The size can be customized according to the customer's requirements;

8.SMEMA Compatible.


			Technical parameters

			Function
			This equipment is used for loading pcb .

			Maximum PCB capacity
			50 pcs

			PCB thickness
			Min0.6mm

			Cycle time
			Approx 6seconds

			Transport direction
			Left to right/right to left(optional)

			Transport height
			900±20mm(or customized)

			Power supply
			100-230V AC(customized) single phase, MAX 150V/A

Model No	HR-330K	HR-460K
PCB size(L×W)～(L×W)mm	(50x50)～(450x330)	(50x50)～(530x460)
Machine size (L×W×H)mm	500x620x1600	600x750x1600
Weight	120KG	140KG

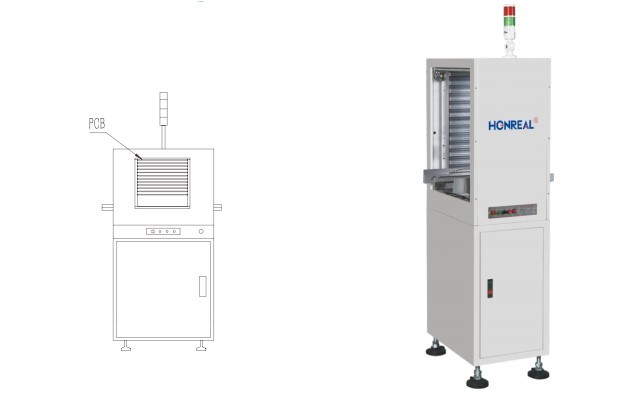

Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment 0

Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment 1

Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.

Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment 2

Services and commitments

Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.

Certification
Mini PCB Loader And Unloader , Stacked Recirculation SMT Handling Equipment 3

Packing

Contact Us

Company	Shenzhen Honreal Technology CO.,Ltd.
Address	No15,Shangnan Hongma Road, Shajing Street, Baoan District, Shenzhen, Guangdong Province, China
Tel	+86755 2302 0279
Fax	+86 755 2330 6782
Zip code	518125
Skype/Whatsapp/Wechat	+8613715227009
Email:	Monica@szhonreal.com
