Automatic Feeder Tape Splicing Machine For 8-24 Mm Width Paper And Embossed Carrier Tapes
  • name
  • name
  • name

Automatic Feeder Tape Splicing Machine For 8-24 Mm Width Paper And Embossed Carrier Tapes

MOQ: 1 set
Price: Negotiable
Standard Packaging: Export wooden box packaging
Delivery Period: 5-7days
Payment Method: T/T，, Western Union, MoneyGram
Supply Capacity: 100 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honeal
Certification
CE
Model Number
BW-HP24
Reel Width:
8-24MM Paper * Plastic
RC Component Size:
01005/0201/0402/0603/0805/1206/1210
Splicing CT:
8-10S（Excludes Manual Time）
Pass Rate:
99%
Weight:
95KG（Batteries Not Included）
Dimensions:
400*470*1450mm
Highlight:

Automatic Feeder Tape Splicing Machine

,

Embossed Carrier Tape Splicing Machine

Product Description

Splicing introduction

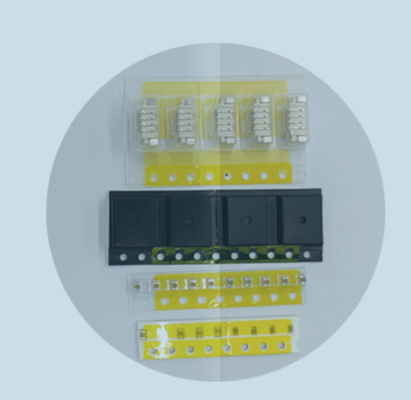

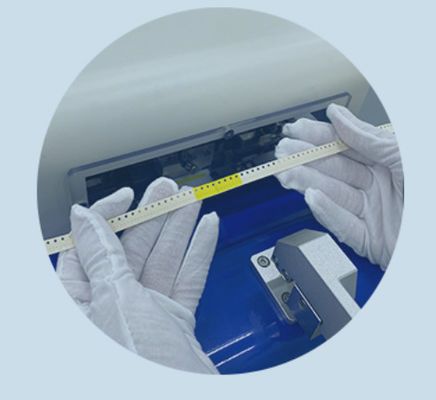

The splicing BW-HP24 is developed for SMT automatic production line, fast line switch without stop, real-time error-proof. It can automatically detect the position of empty pocket on the head and tail of two rolls of the same component, accurately cut and splicing, and pass rate as high as 99%. With standard RC measurement, silkscreen AOI match and empty pocket detection function, reducing manual operation and cost, great improve the SMT production line OEE.





Features:

1.OK for 8-24mm tape width;

2.RC online measuring,

3.Can measure high accuracy and small components





Type BW-HP24
Dimensions 400*470*1450mm
Weight 95KG(Batteries not included)
Work height 900±15mm
Reel Width 8-24MM Paper * plastic
CCD vision Pitch, empty pocket &silkscreen AOI
RC component size 01005/0201/0402/0603/0805/1206/1210
Measurement Frequency 50HZ-200KHZ
LCR measurement accuracy 0.05%
Display resolution R:0.01mohms-99.9999mohms
C:0.00001pF-9.9999F
Splicing CT 8-10S(Excludes manual time)
Pass rate 99%
MES Interface Supported
IPC IPC ,10” Touch panel
OS win10
Battery voltage DC 48V Lithium battery
Rate working Voltage DC 48V,AC 110-220V
Reel cutting method Automatically
Other configuration option

Outside AC dual reel support arms, print





Automatic Feeder Tape Splicing Machine For 8-24 Mm Width Paper And Embossed Carrier Tapes 0
