Splicing introduction

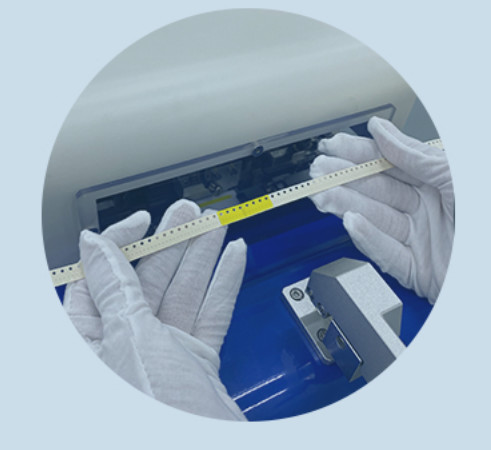

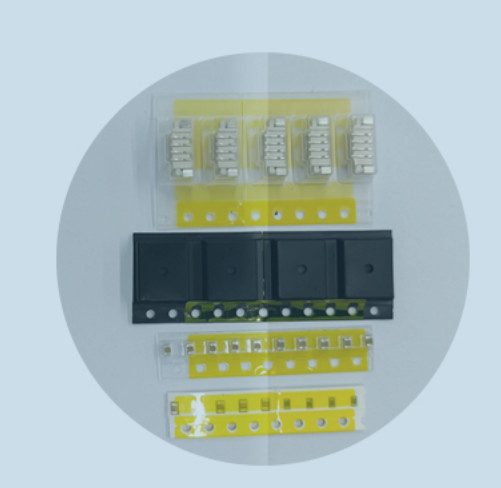

The splicing BW-HP08 is developed for SMT automatic production line, fast line switch without stop, real-time error-proof. It can automatically detect the position of empty pocket on the head and tail of two rolls of the same component, accurately cut and splicing, and pass rate as high as 99%. With standard RC measurement, silkscreen AOI match and empty pocket detection function, reducing manual operation and cost, great improve the SMT production line OEE.
FUNCTlONAL ADVANTAGES
Easy to operation:5 Mins to learn to operate the machine.
lmprove efficiency: The pass rate is 98%+,helps improve efficiency
Traceability:Automatically generat splicing report.
Empty pocket detection:CCD capture size 01005 and above SMD components.
Multiple Error-proof: 1.Automatically compare 1st and 2nd scanned barcodes.
2.Silkscreen&character identificating & comparison.
3.Resistance and capacitance values measurement.
| Type | BW-HP08 |
| Dimensions | 380*470*1450mm |
| Weight | 95KG |
| Work height | 900±15mm |
| Reel Width | 8mm Paper Reel and Plastic Reel |
| CCD vision | Pitch, empty pocket Font&characters printing comparison |
| RC component size | 01005/0201/0402/0603/0805/1206/1210 |
| Measurement Frequency | 50HZ-200KHZ |
| LCR measurement accuracy | 0.05% |
| Display resolution | R:0.01mohms-99.9999mohms |
| C:0.00001pF-9.9999F | |
| Splicing CT | 8-10S(Excludes manual time) |
| Pass rate | 99% |
| MES Interface | Supported |
| IPC | IPC ,10” Touch panel |
| OS | win10 |
| Battery voltage | DC 48V Lithium battery |
| Rate working Voltage | DC 48V,AC 110-220V |
| Reel cutting method | Automatically |
| Other configuration option |
Outside AC dual reel support arms, print
|
