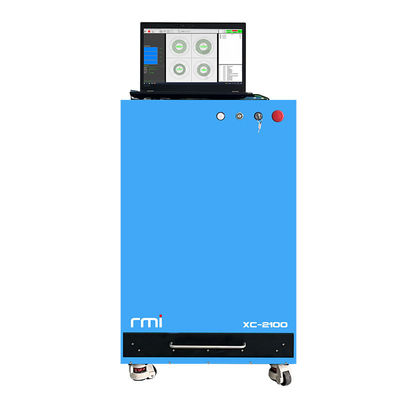

X-Ray component counter uses X-ray imaging technology, applies AI algorithm to detect production materials, obtains image information for fast counting; directly links with factory ERP/MES system, and has a wide range of applications in warehouse management.
Specifications:
|
Model |
XC-2100 |
|
Tube Type |
Closed Tube |
|
Spatial Resolution |
30μm |
|
Tube Voltage |
50kv |
|
Tube Current |
1000μA |
|
Image Capture Method |
Flat panel digital imaging |
|
Imaging Accuracy |
139μm |
|
Image Size |
430*430mm |
|
Resolution |
3072*3072px |
|
Pixel Accuracy |
≤2μm |
|
Imaging Speed |
5 EDS/s |
|
Reading Pixels |
20 million/inch |
|
False Positive Rate (0201) |
≤0.01% |
|
Accuracy |
99.99% (0201) |
|
Power |
AC110-220V, 50-60HZ, 1200W |
|
Dimension (with printer) |
600*650*1000mm |
|
Weight |
50kg |
Features
1.Minimum 01005 recognition correct rate up to 99.99%
2.No fear of shaped materials,bulk materials, multiple trays
3.Read all the tag codes of the pallets and output MES
4.Docking to MES, automatic data update
Advantages
1.Simultaneous counting of different trays,simultaneous imaging,automatic numbering / counting
2.6-10 seconds quick reading
3.Reduce the number of processes, shorten the process route, and improve efficiency
4.Self-contained database, providing query printing.
Functional interpretation
1.Can order multiple reels of reel material, single material function
2.Select single/multiple tray stocking mode according to requirements.
