X-Ray component counter uses X-ray imaging technology, applies AI algorithm to detect production materials, obtains image information for fast counting; directly links with factory ERP/MES system, and has a wide range of applications in warehouse management.
Specifications:
|
Model |
XC-3100 |
|
Tube Type |
Closed Tube |
|
Spatial Resolution |
30μm |
|
Tube Voltage |
50kv |
|
Tube Current |
1000μA |
|
Image Capture Method |
Flat panel digital imaging |
|
Imaging Accuracy |
139μm |
|
Image Size |
430*430mm |
|
Resolution |
3072*3072px |
|
Pixel Accuracy |
≤2μm |
|
Imaging Speed |
5 EDS/s |
|
Reading Pixels |
20 million/inch |
|
False Positive Rate (0201) |
≤0.01% |
|
Accuracy |
99.99% (0201) |
|
Power |
AC110-220V, 50-60HZ, 1200W |
|
Dimension (with printer) |
950*1460*1960mm |
|
Weight |
450kg |
1. Accuracy: 99.99% (0201);
2. Compatible minimum device type:01005 (unit: inch);
3. The highest pointing speed: about 6-10 seconds/4 plate
4. Calculated based on the minimum size of 01005 (unit: inch) 20,000 points;
5. 7" tray four trays at the same time feeding speed: about 8 seconds;
6. Time including loading and unloading: about 11 seconds;
7. Support multiple sizes of material inventory (7"~15");
8. With X-Ray PCB detection function and X-Ray other assembly product detection function;
9. Support automatic data upload to the cloud and synchronization, update the database every month, the longer the time, the more accurate;
10. One-button operation, Intuitive and easy-to-use GUI;
11. Minimize investment cost (super normal introduction cost);
12. High safety, with EU CE Certificate, International Quality Management System ISO, and AERB Certificate for X-ray.
1. Simple: combined with advanced international concepts, easy to understand, easy to learn, easy to maintain;
2. Save time: warehouse management is more efficient, can save 10-20 times the time cost;
3. Hedging: Import hardware configuration, low failure rate in production, more than a decade service life;
4. Safety: Based on the general rules of international design, the highest security level;
5. Stable: mature software, hardware and top production processes ensures stability of each equipment.

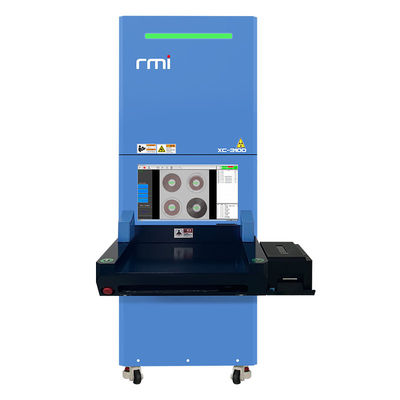

Component Counting System
