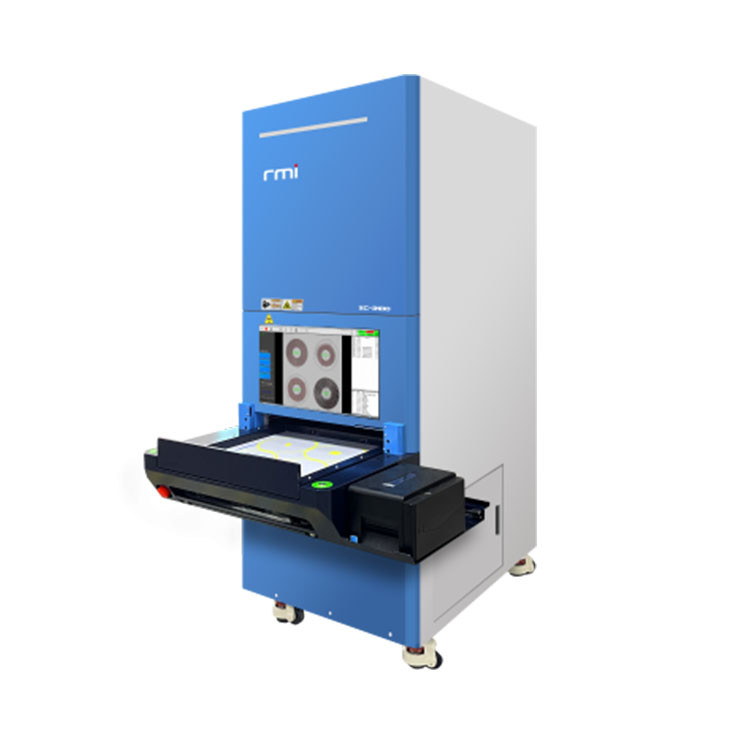

Offline X-RAY Chip Counter High Accuracy X-Ray Reel Components Counting Machine
Specifications:
Model | XC-3100 |
Tube Type | Closed Tube |
Spatial Resolution | 30μm |
Tube Voltage | 50kv |
Tube Current | 1000μA |
Image Capture Method | Flat panel digital imaging |
Imaging Accuracy | 139μm |
Image Size | 430*430mm |
Resolution | 3072*3072px |
Pixel Accuracy | ≤2μm |
Imaging Speed | 5 EDS/s |
Reading Pixels | 20 million/inch |
False Positive Rate (0201) | ≤0.01% |
Accuracy | 99.99% (0201) |
Power | AC110-220V, 50-60HZ, 1200W |
Dimension (with printer) | 950*1460*1960mm |
Weight | 450kg |
1. Accuracy: 99.99% (0201);
2. Compatible minimum device type:01005 (unit: inch);
3. The highest pointing speed: about 6-10 seconds/4 plate
4. Calculated based on the minimum size of 01005 (unit: inch) 20,000 points;
5. 7" tray four trays at the same time feeding speed: about 8 seconds;
6. Time including loading and unloading: about 11 seconds;
7. Support multiple sizes of material inventory (7"~15");
8. With X-Ray PCB detection function and X-Ray other assembly product detection function;
9. Support automatic data upload to the cloud and synchronization, update the database every month, the longer the time, the more accurate;
10. One-button operation, Intuitive and easy-to-use GUI;
11. Minimize investment cost (super normal introduction cost);
12. High safety, with EU CE Certificate, International Quality Management System ISO, and AERB Certificate for X-ray.
Component Counting System
Apply the AI-optimized counting algorithm to realize spot inspection of various materials: standard SMD, dicing tape, JEDEC/Matrix tray, MELF, Aluminum Caps, Soic, To, BGA/CPU, Tantal, filter and other parts. Four material pallets can be counted at the same time, and it only takes 8 seconds to complete, which shortens the counting time of parts pallets, automatically uploads data to the cloud, regularly updates the database, and links with the factory ERP/MES system, greatly saving time and cost. Easy to manage.
