Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB

MOQ: 1
Price: Negotiable
Standard Packaging: Wooden Case
Delivery Period: In stock
Payment Method: T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin
Korea
Brand Name
Samsung
Model Number
Decan S1
Application:
SMT Production Line
PCB Size:
510 X 510mm
Condition:
Original Used
Feeder Capacity:
120ea Fixed Feederbase
Quality:
100% Brand
Package:
Wooden Case
Highlight:

Samsung SMT Pick And Place Machine

,

Decan Series SMT Pick And Place Machine

Product Description
Samsung Decan Series SMT Pick And Place Machine 120ea Fixed Feeder base Decan S1
Product Specifications
Model DECAN S1
Alignment Fly Camera + Fix Camera
The number of spindles 10 spindles x 1 Gantry
Placement Speed 47,000 CPH (Optimum)
Placement Accuracy ±28μm @ Cpk≥ 1.0
Component Range Fly Camera | 03015 ~ □16mm Fix Camera
42mm ~ □55mm (MFOV) L55mm ~ L75mm Connector (MFOV)
Max. Height 10mm (Fly), 15mm (Fix)
PCB Size (mm) Min. | 50(L) x 40(W)
Max. | 510(L) x 510(W) Option~ Max. 1,500(L) x 460(W)
PCB Thickness (mm) 0.38 ~ 4.2
Feeder Capacity (8mm standard) 60ea / 56ea (Fixed feederbase / Docking Cart)
120ea / 112ea (Fixed feederbase / Docking Cart)- Option
Utility Power | 3Phase AC200 / 208 / 220 / 240 / 380 / 415V Max. 3.5kVA
Air Consumption | 5.0~7.0kgf/cm2 50Nℓ/min (Vacuum Pump)
Weight (kg) Approx. 1,600
External Dimension (mm) 1,430(L) x 1,740(D) x 1,485(H)
Key Features
  • Flexible Production: Highest Applicability of Medium Speed Chip Mounters to PCBs. 510 x 510mm (standard) / 1500 x 460mm (optional) - Possible to produce PCBs of up to 1,500mm(L) x 460mm(W) in size
  • High Reliability: Places Microchips Stably. Performs automatic calibration during production to maintain placement accuracy. Maintains pickup and placement quality with the Nozzle Maintenance Unit
  • Productivity: Highest Performance among Chip Mounters of the Same Class. Increases component recognition range using high-pixel camera. Enhances simultaneous pickup rate and odd-shape component placement speed
  • Easy Operation: Increases Operational Convenience. Simplifies teaching for large odd-shape components and reduces teaching time. Features unified lighting level for chip components and maintains pickup coordinates of common feeders

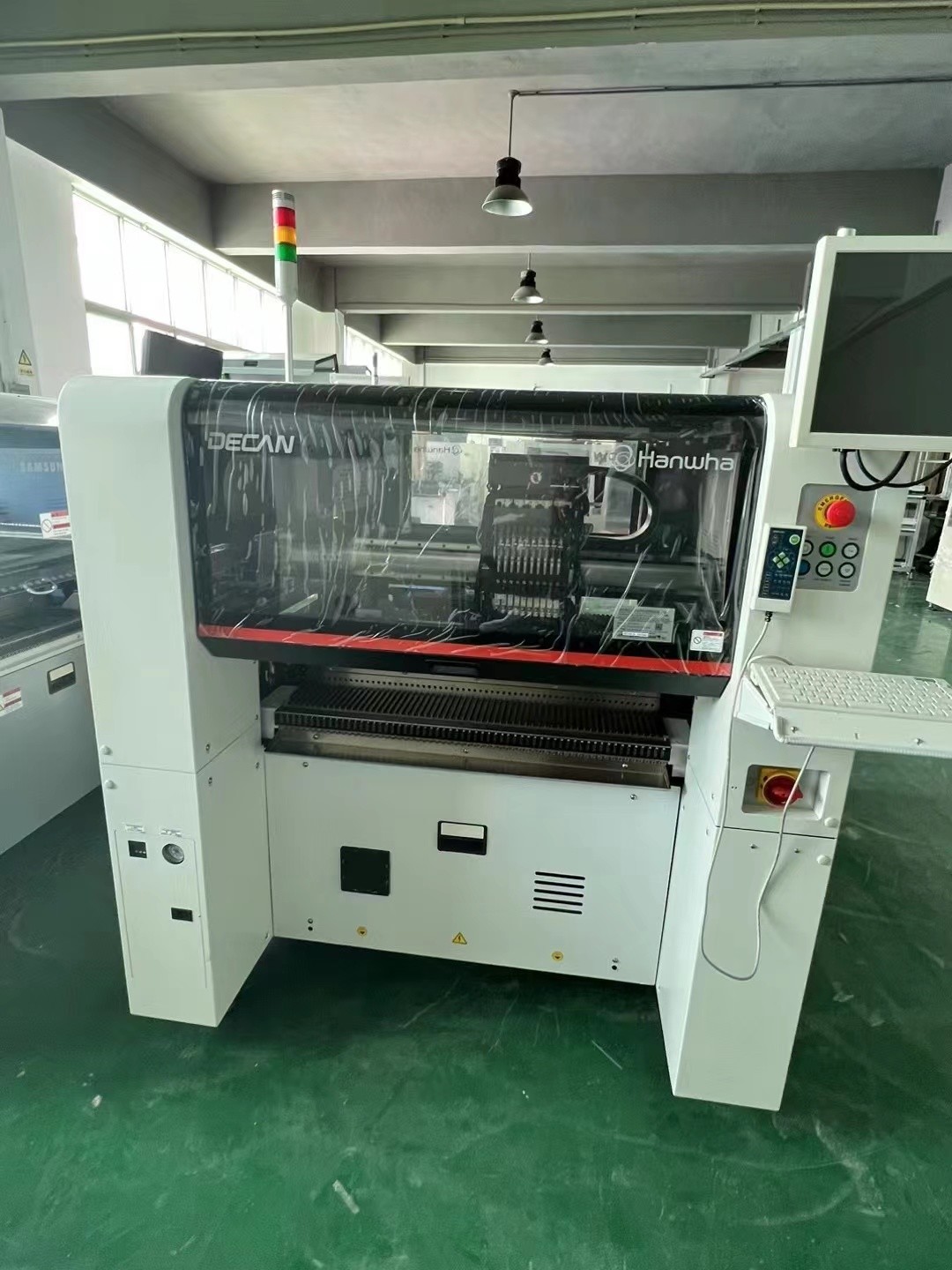

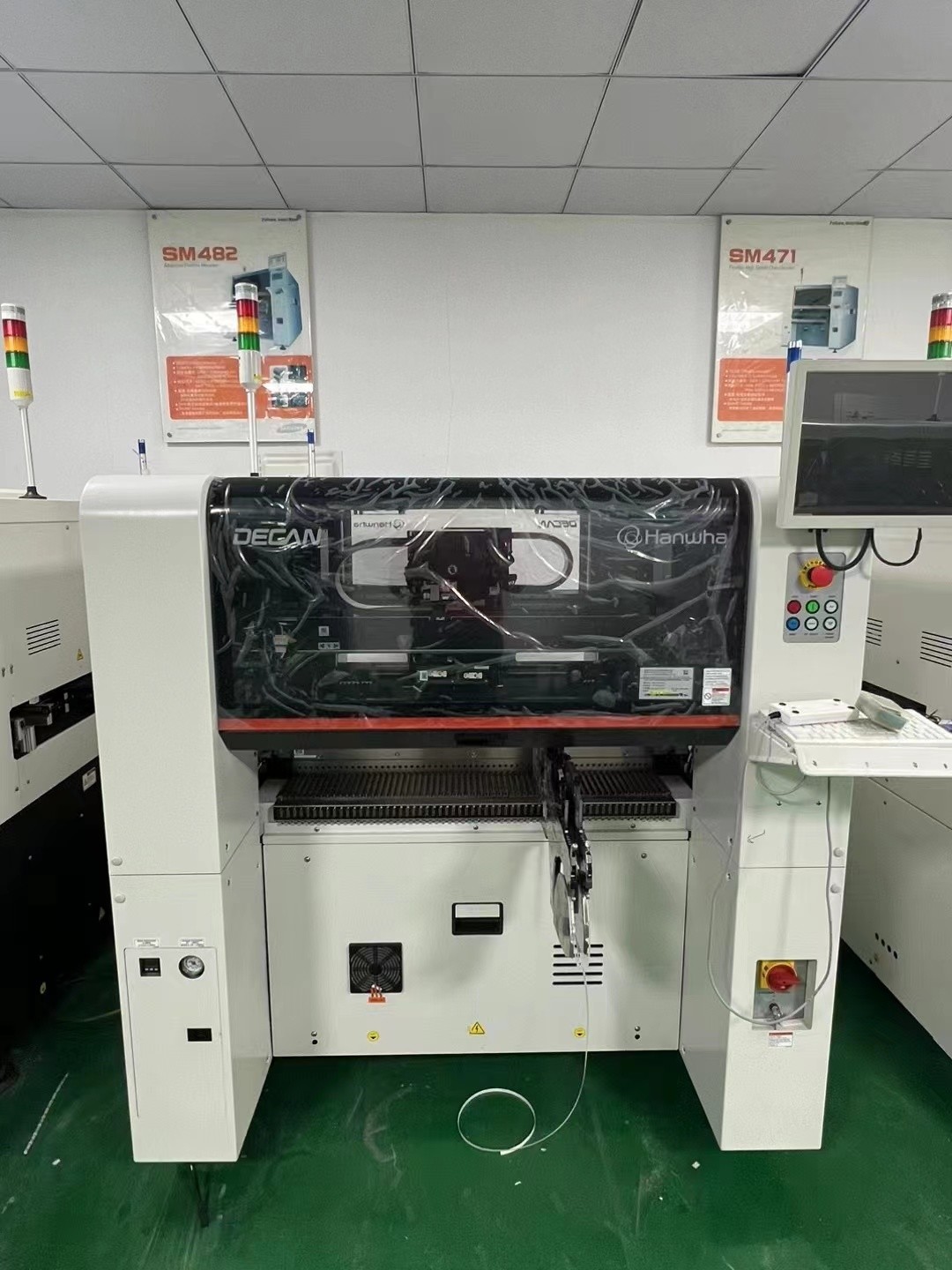

Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB 0 Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB 1
About Shenzhen Honreal Technology Co.,Ltd

We are a national high-tech enterprise specializing in SMT equipment research and development, production, and sales. Serving the world's top 500 electronic companies with a registered capital of 5 million. Our experienced technical team and excellent innovation capabilities create better product supply chains and service teams to meet diverse customer needs. We prioritize understanding customers and delivering valuable services.

Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB 2
Packing
Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB 3 Samsung Decan S1 SMT Pick and Place Machine 120ea Feeder 510x510mm PCB 4
Keywords: Used DECAN S1, 2023 year Decan S1, 2022 year Decan S1, High speed LED placer, High speed chip shooter, 2021 year Decan S1, Flexible pick and place machine, PNP machine, Samsung SMT mounter, Second hand SMD machine, Hanwha pick & place machine, 2020 Decan S1, second-hand 2019 Decan S1, New Decan S1, SMT mounter, LED Chip Mounter, SAMSUNG Pick and Place Machine, LED Production Line, LED Pick and Place Machine.
