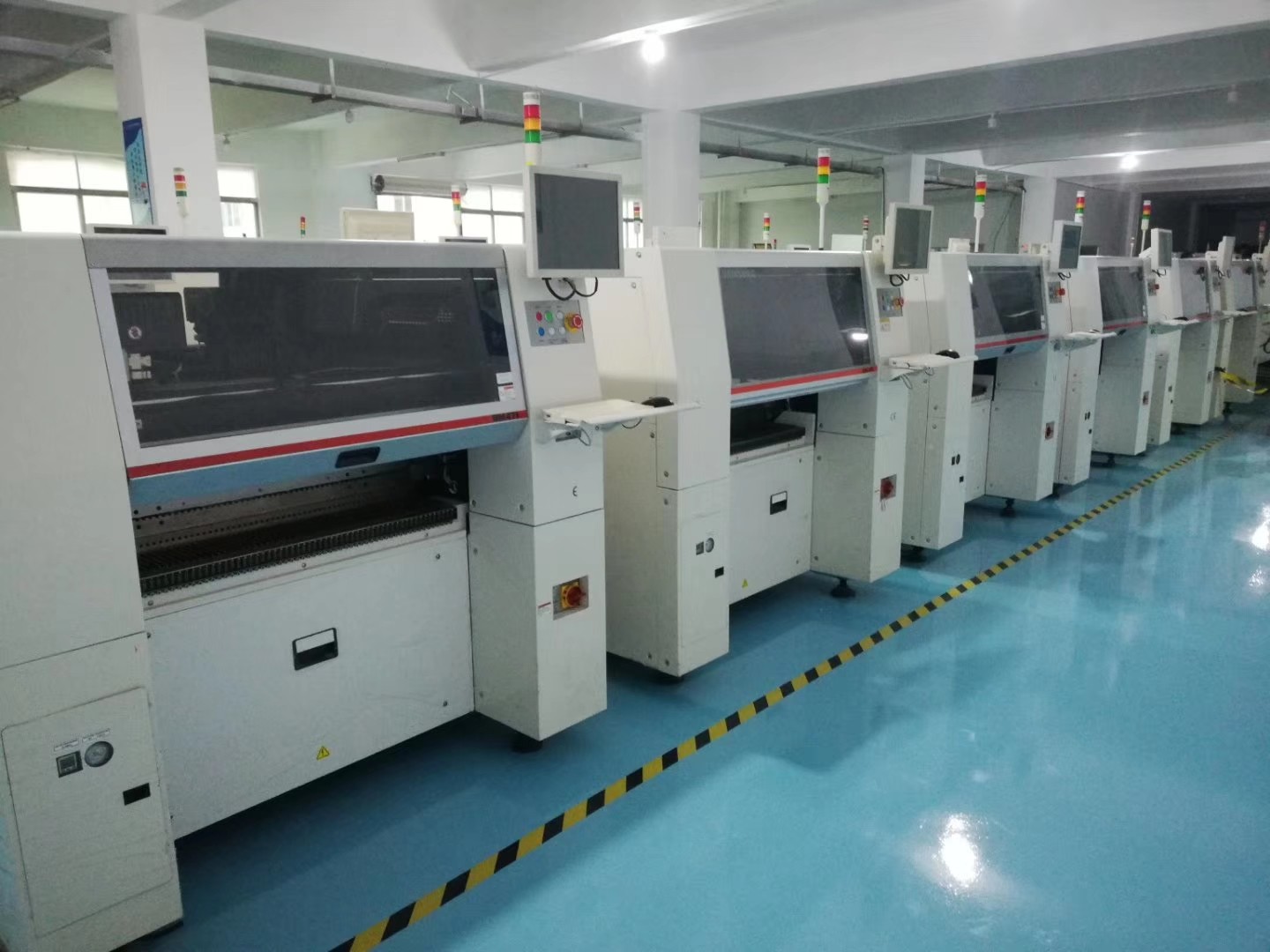

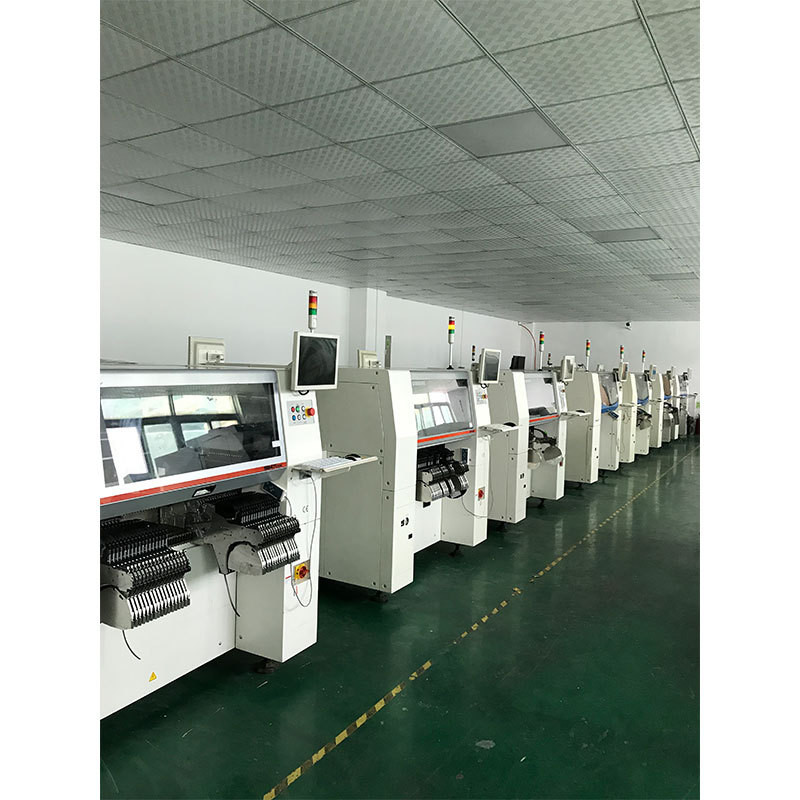

Highly reliable SM471 PLUS is the 8th generation of Full Vision mounter from Hanwha and 6th Generation Dual Gantry System developed.
Cost of ownership is extremely low due to the simple yet reliable Dual Gantry X/Y/Z structure.
Easy to use software allows users to quckly learn the machine and get the most from it. Standard component library has more than 1800 shapes and the polygonic algorithm automatically detects component outlines on difficult components.
| Specifications | SAMSUNG SMT Pick and Place Machine SM471 Plus |
| Alignment | Flying Vision |
| Number of Spindles | 10 Spindles x 2 Gantry |
| Placement Speed | 75,000 CPH(Optimum) |
| Placement Accuracy | ±50μm@μ+3σ (Based on the Standard Chips) |
| Component Range |
Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm) |
| Board Dimension(mm) | 50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option) |
| Feeder Capacity | 120ea / 112ea(Docking Cart) (Based on 8mm) |
| Power | AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA |
| Air Consumption | 0.5 ~ 0.7MPa(5 ~ 7kgf/cm2) |
| Mass | Approx. 1,820kg |
| External Dimension(mm) | 1,650(L) x 1,690(D) x 1,485(H) |
Features:
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Having experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Packing:
