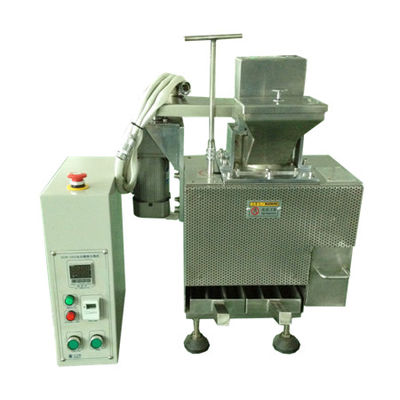

Online Automatic Solder Dross Recovery System For Wave Soldering Production Line
1.Characteristic:
1.Highly effective recycling of the solder waste, up to 90% yield .
2.No need to add any chemicals or reducers to the process uses physical separation to ensure a good quality product.
3.Button controls, digital temperature control sheet, accurate temperature control.
4.All-stainless steel tank, clean convenience.
5.316 grade stainless mixing bowl with an 10kg capacity with heating power for complete mixing.
6.Dross automatic feeding system, automatic feed screw.
7.Electronic liquid level alarm, manually put tin.
8.Automatic separation of tin and tin ash, into the tin and tin-ash collection device.
9.Small size, light weight, move convenience.
10.Independent smoke filtration system (Optional).
2.Technical parameters
| Item | (Parameter) |
| Mixing motor | 1φ 220V 90W |
| Mixing Heating Power | 1.6KW |
| Mixing Capacity of Bottom Tin | 10KG |
| Temperature Scope | 0-350℃ |
| Heating-up time | 50MIN |
| Feeding time | Continuous3-4kg/15min |
|
Dimension Electrical box size |
L500*W250*H650 L140*W330*H390 |
| Totol Power Consumption | 1.8KW |
| Normal running power | 0.4KW |
| Power | 1φ220V 50Hz |
| Net Weight | Appro*45kg |
Components Description:
1. Automatic Feeding System
5kg smashed dross can be feed in one time, under the control time meter, the motor drives screw with positive and reversal moving to feed the dross into the machine.
2.Tin Mixing & Seperation System
Mixing system mixes the dross and force it into melting system, under the mixing pole and seperation blade action, the dust will be separate out. This machine is use high temperature liquid tin to melt the dross, this was is more faster and completed.
3.Exhaust & filtration System (optional)
Using stainless steel mash + actived carbon cotton to filter the exhaust gass from feeding entrance by the force of fan.
4.Mould System
Mould system is uses a manual lever release with atuomatic alarm system, release the tin in to the mould below.
The mould has several slots which will all fill when the correct amount of tin has been release.
5.Insulation system
Bakelite electric box with high temperature insulation to prevent heat damage to electrical appliances. Surface mount heat safety net to avoid burns and so on.
