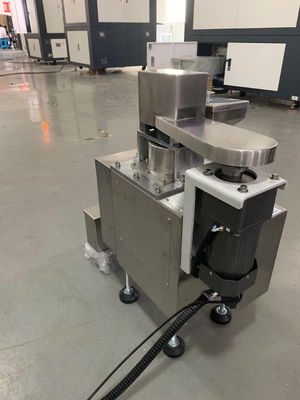

Automatic Solder Dross Separation Machine Wave Solder Dross Recovery Machine Alloy Solder Dross Recycler
1.Characteristic:
1.Highly effective recycling of the solder waste, up to 90% yield .
2.No need to add any chemicals or reducers to the process uses physical separation to ensure a good quality product.
3.Button controls, digital temperature control sheet, accurate temperature control.
4.All-stainless steel tank, clean convenience.
5.316 grade stainless mixing bowl with an 10kg capacity with heating power for complete mixing.
6.Dross automatic feeding system, automatic feed screw.
7.Electronic liquid level alarm, manually put tin.
8.Automatic separation of tin and tin ash, into the tin and tin-ash collection device.
9.Small size, light weight, move convenience.
10.Independent smoke filtration system (Optional).
2.Technical parameters
| Item | (Parameter) |
| Mixing motor | 1φ 220V 90W |
| Mixing Heating Power | 1.6KW |
| Mixing Capacity of Bottom Tin | 10KG |
| Temperature Scope | 0-350℃ |
| Heating-up time | 50MIN |
| Feeding time | Continuous3-4kg/15min |
|
Dimension Electrical box size |
L500*W250*H650 L140*W330*H390 |
| Totol Power Consumption | 1.8KW |
| Normal running power | 0.4KW |
| Power | 1φ220V 50Hz |
| Net Weight | Appro*45kg |
Installation & Adjustment
1.Working Condition
1.1Put the equipment on the flat ground in well ventilated area and dry covered area.
1.2The working temperature should be within 5～45℃
1.3Do not place in the Dust-free workshop, as machine may create airborne dust
1.4Use single-phase power system (it should be well sheltered) with220V/110V and correct current power supply.
2.Installation
2.1Unpacked the machine and adjust the fixing feet to get the machine level.
2.2Connect power.
3.Turn on and set the data
3.1 Adding bottom pure tin: prepare about 10kg liquid pure tin to put into mixing area, and release the pure tin from pure tin storage container completely after it.
3.2 Start operation the machine after this process finished.
