SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity

1set
MOQ
USD 2600-3500 Per Set
Price
SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Magazine Change-over Time: Approx 30 Seconds
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1370×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Weight: 110kg
Highlight:

Safety Cover PCB Loader Unloader

,

SMT Machine PCB Loader Unloader

,

110V PCB Loader Unloader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
SMT Production Factory Machine Safety Cover Anti-static Belt PCB Loader Unloader 230V 50HZ
Product Attributes
Attribute Value
Magazine change-over time Approx 30 seconds
Transport height 900±20mm(or customized)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)～(L×W)mm (50x50)～(350x250)mm
Machine size (L×W×H)mm 1370×750×1200mm
Magazine size (L×W×H)mm 355×320×563mm
Weight 110kg
Product Description

PCB handling equipment automatic PCB loader machine SMT magazine loader with 1-4 Step pitches PCB loader/unloader capability.

Key Features
  • Designed to send PCBs from magazine to SMT production line
  • Stable and reliable PLC control system
  • User-friendly LED touch screen control interface
  • Pneumatic clamps with top and bottom three-point alignment for magazines
  • Effective thrust design prevents PCB breakage
  • 3-magazine loading capability
  • Configurable transport direction (left to right or right to left)
  • Continuous machine fault monitoring
  • Solid and stable construction
  • SMEMA port compatibility
Technical Parameters
Parameter Specification
Function Transfers PCBs from magazine to SMT production line
PCB thickness Min 0.6mm
Magazine number Transport up: 1pcs, transport down: 1pcs (or customized)
Step pitches select 1-4 (10mm step pitches)
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Air pressure 4-6 bar, MAX 10L/minute
Power supply 100-230V AC (customized) single phase, MAX 300V/A
Model Specifications
Model No HR-250 HR-330 HR-390 HR-460
PCB size (L×W)～(L×W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L×W×H)mm 1370×750×1200 1550×830×1200 1750×920×1200 1750×990×1200
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 110kg 135kg 155kg 175kg

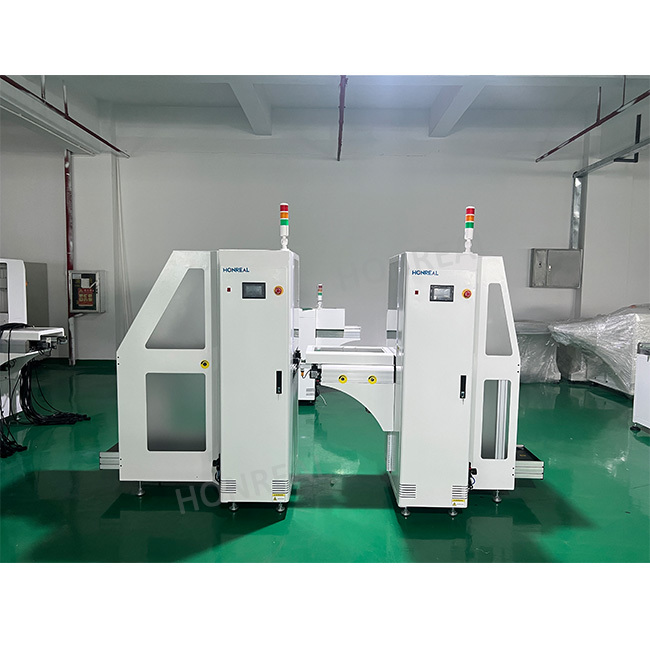

SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 0 SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 1

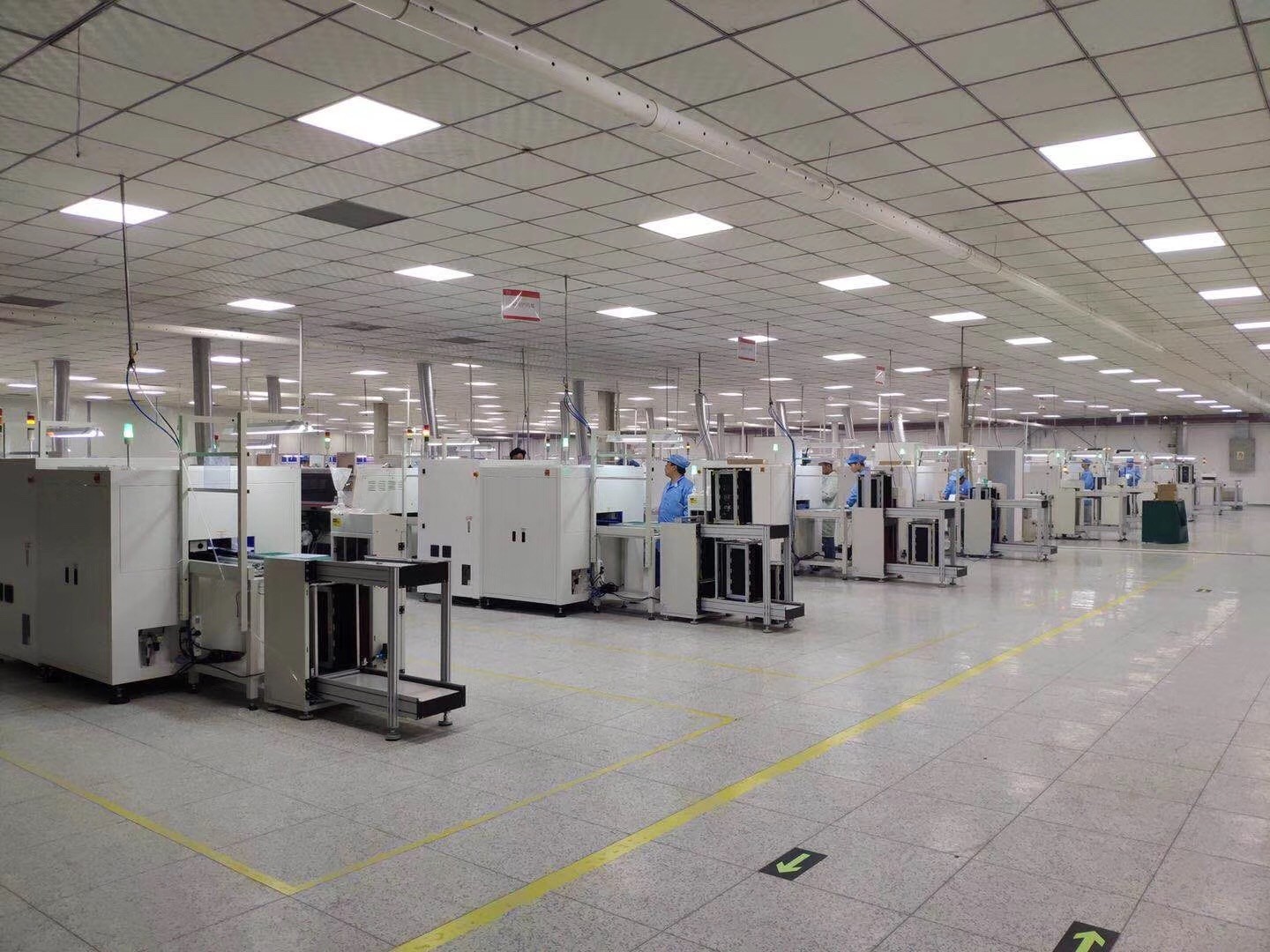

Client Case
SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 2
Equipment Maintenance
  • Check conveyor belt tension and cleanliness
  • Maintain cleanliness of linear bearings and optical axis
  • Clean and lubricate ball screw with lint-free cloth
  • Test all automatic and manual operation functions
  • Verify smooth PCB transmission
  • Check lifting platform stability when powered off
  • Ensure smooth cylinder movement
  • Inspect belt track for wear
  • Verify proper operation of photoelectric and magnetic sensors
SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 3
Certification
SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 4
Packing
SMT PCB Loader Unloader Machine 230V with 3 Magazine Capacity 5
Frequently Asked Questions
Is this machine easy to operate for first-time users?

Yes, we provide an English manual and instructional video. Our support team is available via email, Skype, phone, or online chat for any additional questions.

What training is provided with the machine?

Your engineers can visit our facility for training, or you can use the included training video and user manual that ships with the machine.

Can I have my company logo on the machine?

Yes, we offer free custom logo service. Simply provide your logo specifications when ordering.

How do I purchase this machine?
  1. Contact us online or by email
  2. Finalize pricing, shipping, and payment terms
  3. Review and confirm proforma invoice
  4. Complete payment as specified
  5. We prepare and quality-check your order
  6. Shipment via air or sea freight
