Hanwha Chip Mounter Spare Part Tray Feeder Stf100n for Industrial

Products

SMT SPI Machine

Judy@szhonreal.com

+8618018772739

Contact Now

Hanwha Chip Mounter Spare Part Tray Feeder Stf100n for Industrial

MOQ:	1 PCS
Price:	Negotiable
Standard Packaging:	Carton
Delivery Period:	1-3 work days
Payment Method:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin

Korea

Brand Name

Hanwha

Model Number

Tray Feeder Stf100n

Brand:

Hanwha

Condition:

Original/copy

Quality:

Top Qualiy

Stock:

Large

Highlight:

Hanwha Stf100n Tray Feeder

Stf100n Tray Feeder

Chip Mounter Spare Part Tray Feeder

Product Description

Specification:

Model Name		STF100S	STF100N	STF100D	STF100E
Applicable Chip Mounter		SM421,SM321	SM421,SM321,CP45NEO
Machine Location		Right	Back	Back	Back
Tact Time		3sec
Tape Feeder Slot Occupation		0 Slot	34 Slot
Feeding Accuracy		±0.2mm@3σ
Component Range (Max. Height)		H=9.5mm(H=25.4mm, if pallet are loaded in every other slot)
Pallet Slot Pitch		14mm
Non-Stop Operation		O	O	O	X
Utility		AC100/110/120/200/220/240V(50/60Hz,1Phase)
Dimension (mm)	Air Consumption	None
	Tray	Min. 200(L) x 100(W) Max. 322.6(L) x 136(W)	Min. 200(L) x 100(W) Max. 340(L) x 272(W)
	PCB	Min. 50(L) x 40(W) 50(L) x 30(W)(option) Max. 460(L) x 400(W)	Min. 50(L) x 40(W) 50(L) x 30(W)(option) Max. 460(L) x 400(W)/510(L) x 460(W)/610(L) x 510(W)
	External	938(L)x1552(D)x1344(H)	1307(L)x500(D)x1300(H)	1350(L)x503(D)x1442(H)	1307(L)x500(D)x1293(H)
Weight (kg)		About 250			About 220

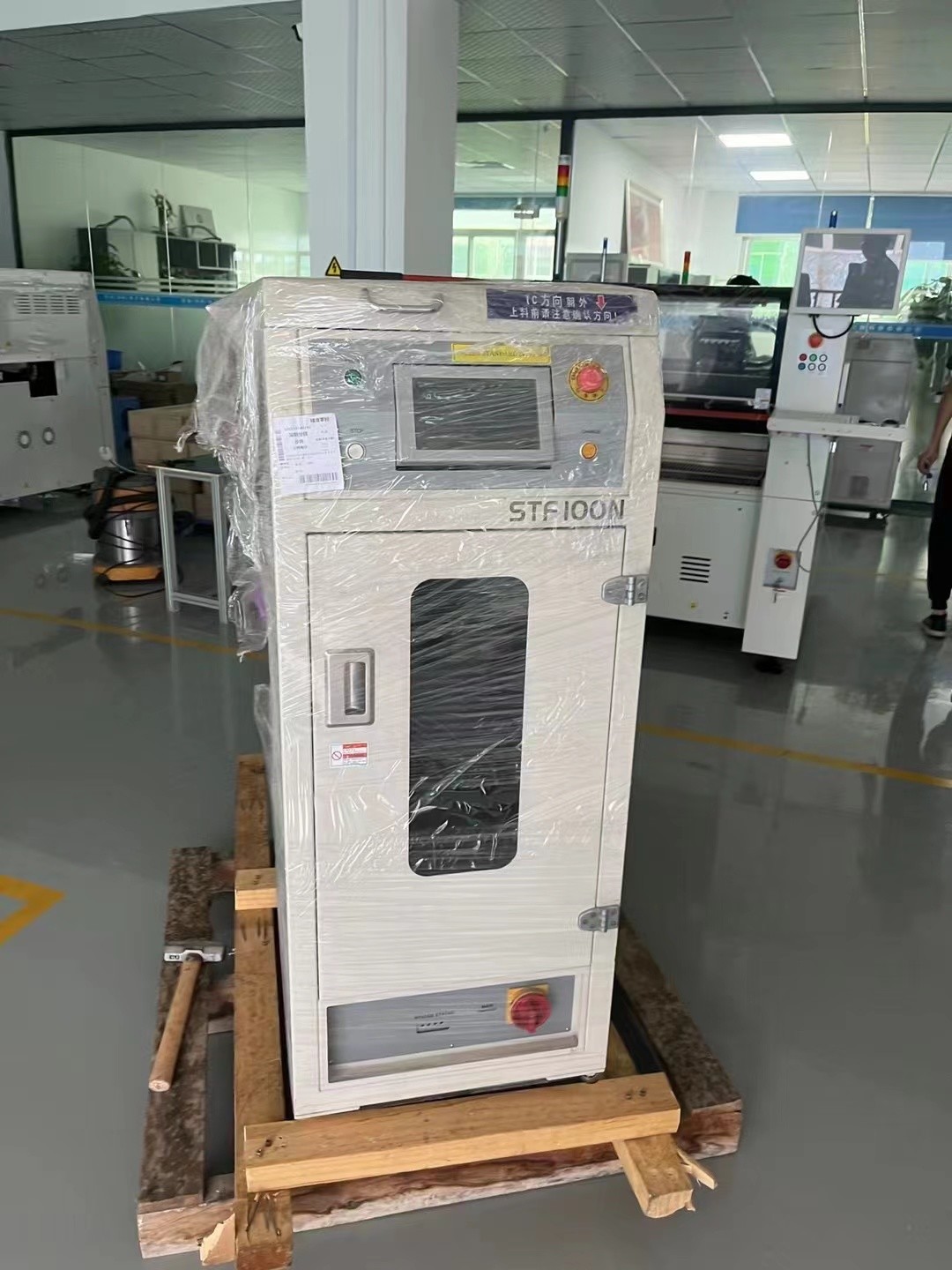

Hanwha Chip Mounter Spare Part Tray Feeder Stf100n for Industrial 0

Who We Are ?

Shenzhen Honreal Technology Co., Ltd. is recognized as a national high-tech enterprise, focusing on the research, development, production, and sales of SMT equipment. It provides services to leading electronic companies worldwide, including those listed in the top 500. The company has a registered capital of 5 million. From its inception, Honreal has remained committed to technological advancement, considering quality as vital for its existence. It emphasizes independent research and development, relentlessly pursuing innovation. As a result of its continuous efforts, the company has garnered several high-tech invention patents.

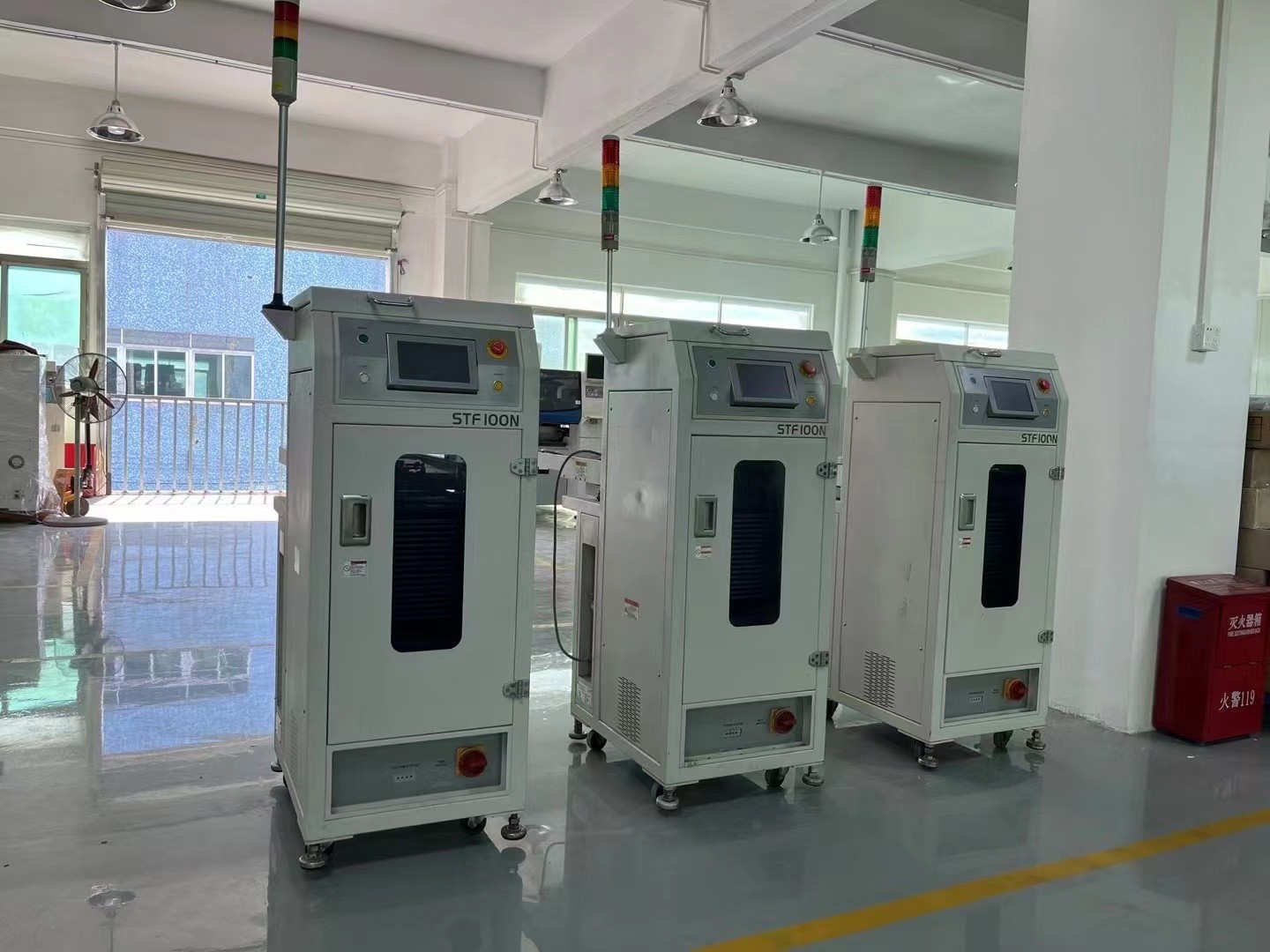

Hanwha Chip Mounter Spare Part Tray Feeder Stf100n for Industrial 3
