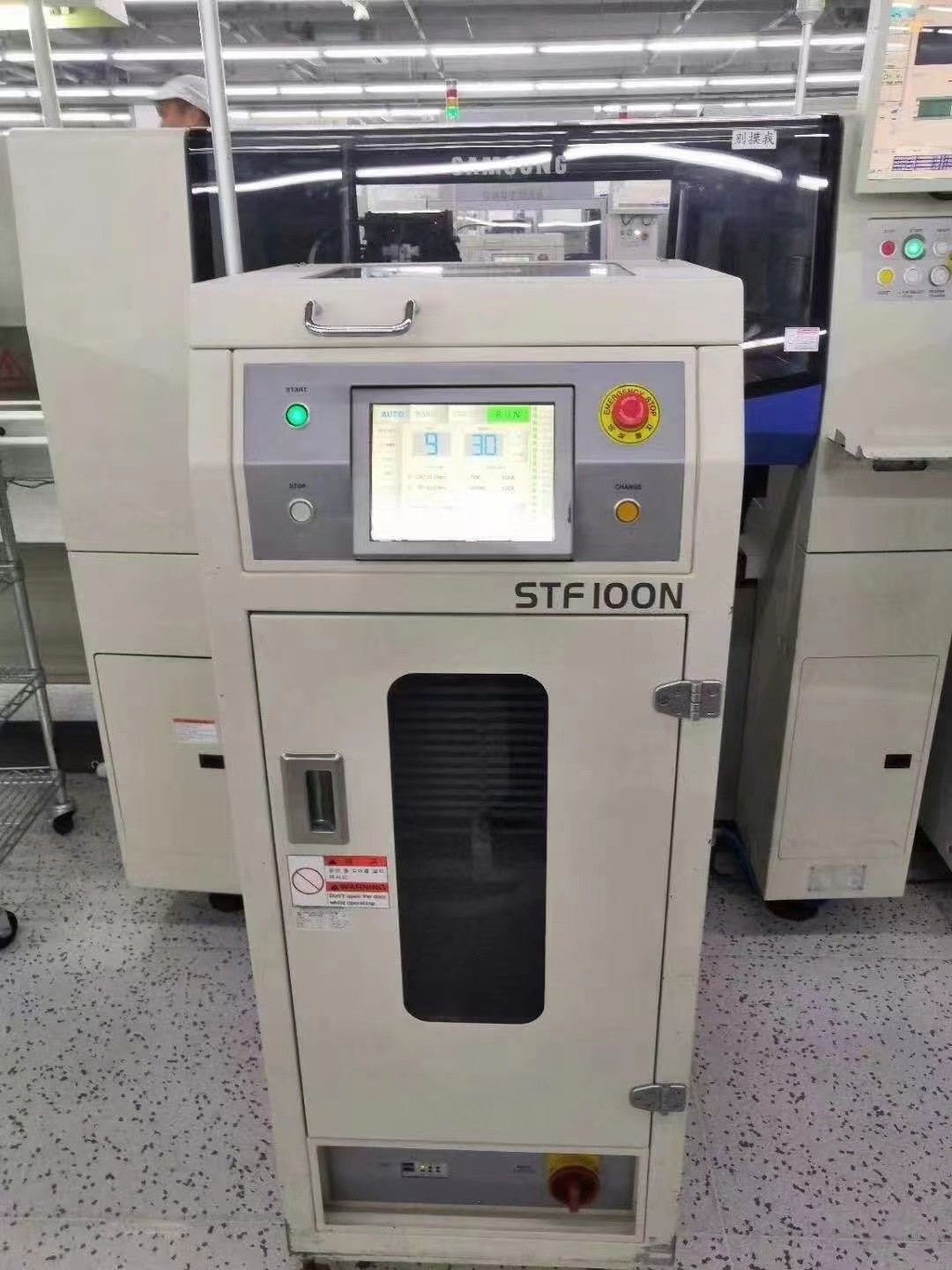

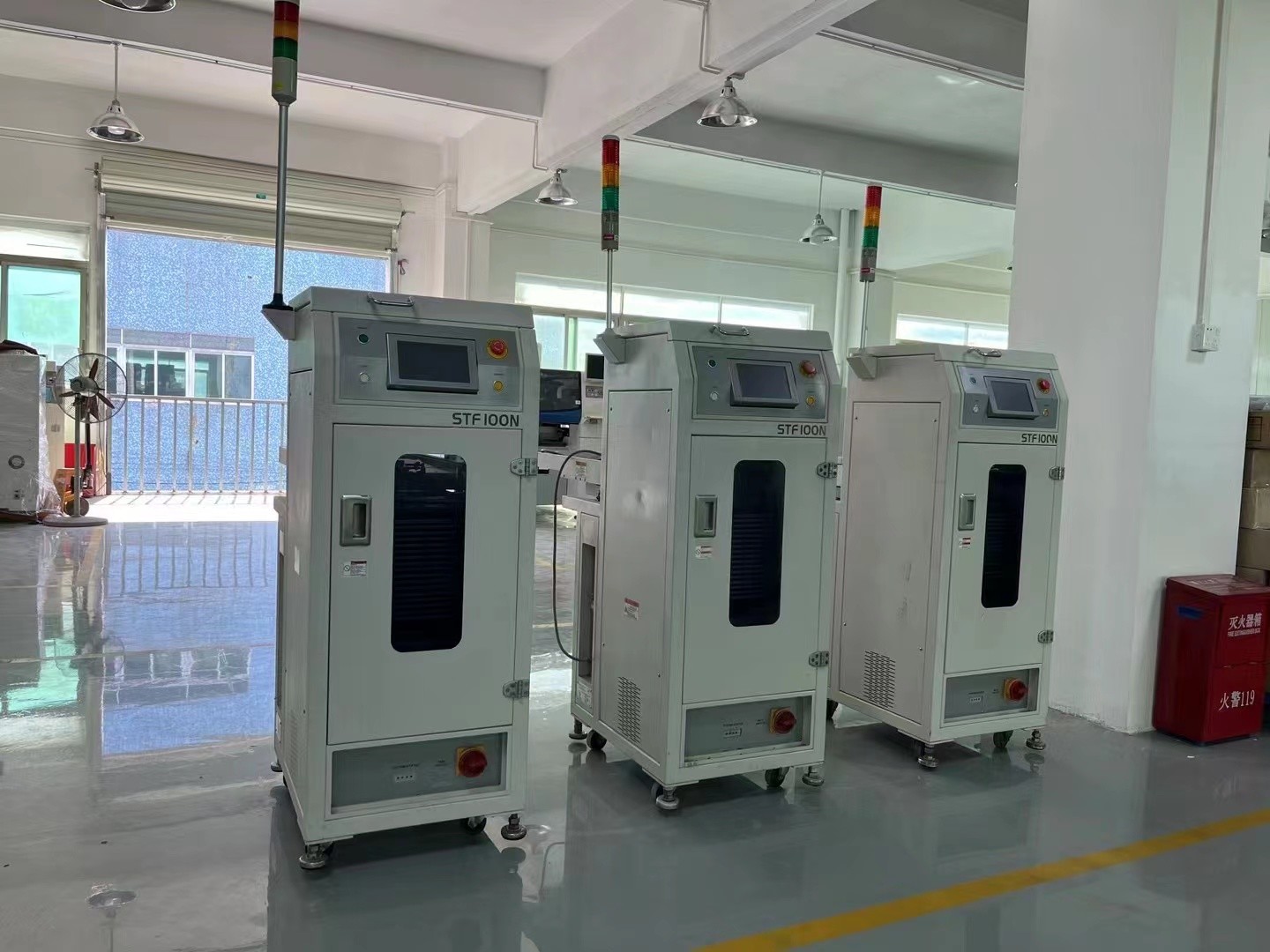

Hanwha Chip mounter Ancillary equipment Tray Feeder STF100D
Model: Hanwha STF-100D
Applicable Chip Mounter:Hanwha Decan S1 / S2 / F2 /SM482 /481/471 PLUS SM485
| Model Name | STF100S | STF100N | STF100D | |
| Applicable Chip Mounter | Hanwha Decan S1 / S2 / F2 /SM482 /481/471 PLUS SM485 | |||
| Machine Location | Right | Back | Back | |
| Tact Time | 3sec | |||
| Tape Feeder Slot Occupation | 0 Slot | 34 Slot | ||
| Feeding Accuracy | ±0.2mm@3σ | |||
| Component Range (Max. Height) | H=9.5mm(H=25.4mm, if pallet are loaded in every other slot) | |||
| Pallet Slot Pitch | 14mm | |||
| Non-Stop Operation | O | O | O | |
| Utility | AC100/110/120/200/220/240V(50/60Hz,1Phase) | |||
| Dimension (mm) | Air Consumption | None | ||
| Tray | Min. 200(L) x 100(W) | Min. 200(L) x 100(W) | ||
| Max. 322.6(L) x 136(W) | Max. 340(L) x 272(W) | |||
| PCB | Min. 50(L) x 40(W) | Min. 50(L) x 40(W) | ||
| 50(L) x 30(W)(option) | 50(L) x 30(W)(option) | |||
| Max. 460(L) x 400(W) | Max. 460(L) x 400(W)/510(L) x 460(W)/610(L) x 510(W) | |||
| External | 938(L)x1552(D)x1344(H) | 1307(L)x500(D)x1300(H) | 1350(L)x503(D)x1442(H) | |
| Weight (kg) | About 250 | |||
