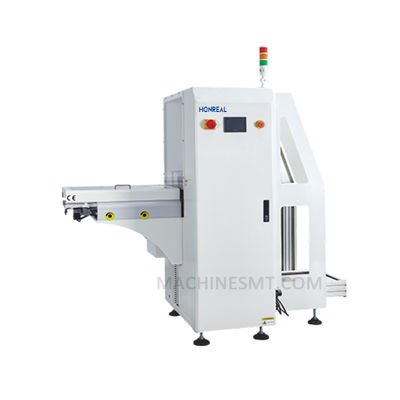

SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine

1set
MOQ
USD3200-5800/SET
Price
SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine
Features Gallery Product Description Request A Quote
Features
Specifications
PCB Thickness: Min0.6mm
Transport Direction: Left To Right/right To Left(optional)
Transport Height: 900±20mm(or Customized)
Air Pressure: 4-6 Bar, MAX 10L/minute
Power Supply: 100-230V AC(customized) Single Phase, MAX 300V/A
PCB Size (L×W)～(L×W)mm: (50x50)～(350x250)mm
Machine Size (L×W×H)mm: 1700×750×1200mm
Magazine Size (L×W×H)mm: 355×320×563mm
Highlight:

SMT PCB Magazine Loader Unloader

,

Electrical Electronic PCB Magazine Loader Unloader

,

Compact Design PCB Magazine Loader Unloader
Basic Infomation
Place of Origin: CHINA
Brand Name: HONREAL
Certification: CE
Model Number: HR-250X
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 10-20Workdays
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100SET/Month
Product Description
Compact Design SMT PCB Magazine Loader Unloader for Electrical Electronic Product Line
Product Description

Stable PCB Magazine Unloader Multi PCB Unloader SMT Loader Unloader With Dust Cover

Key Features
  • Outer structure: sheet metal and aluminum profile frame with optional color surface spray treatment
  • Microcomputer PLC control system for stable and reliable operation
  • Touch screen display with automatic fault diagnosis and user-friendly interface
  • Multiple sound and light alarm functions integrated in touch screen
  • Adjustable rack lifting step based on PCB thickness
  • Automatic counting function for production statistics
  • User-friendly design prevents PCB board damage and improves output capacity
  • Motor-driven PCB board transfer to material frame
  • Stepper motor push plate with adjustable intensity and speed settings
  • Push plate device features two-end limit protection for PCB boards
Technical Specifications
Model No HR-EU250X HR-EU330X HR-EU390X HR-EU460X
PCB size (L×W)～(L×W)mm (50x50)～(350x250) (50x50)～(455x330) (50x50)～(530x390) (50x50)～(530x460)
Machine size (L×W×H)mm 1700×750×1650 1950×830×1650 2210×920×1650 2210×990×1650
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 150kg 180kg 200kg 230kg
SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 0 SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 1 SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 2 SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 3
About Shenzhen Honreal Technology Co., Ltd

We are a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. Serving world-class electronic companies, we combine technical expertise with innovative solutions to meet diverse customer needs.

Our Facilities
SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 4
Certifications
SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 5
Packaging
SMT PCB Magazine Loader Unloader for 50x50 to 350x250mm Boards Automated PCB loading Machine 6
