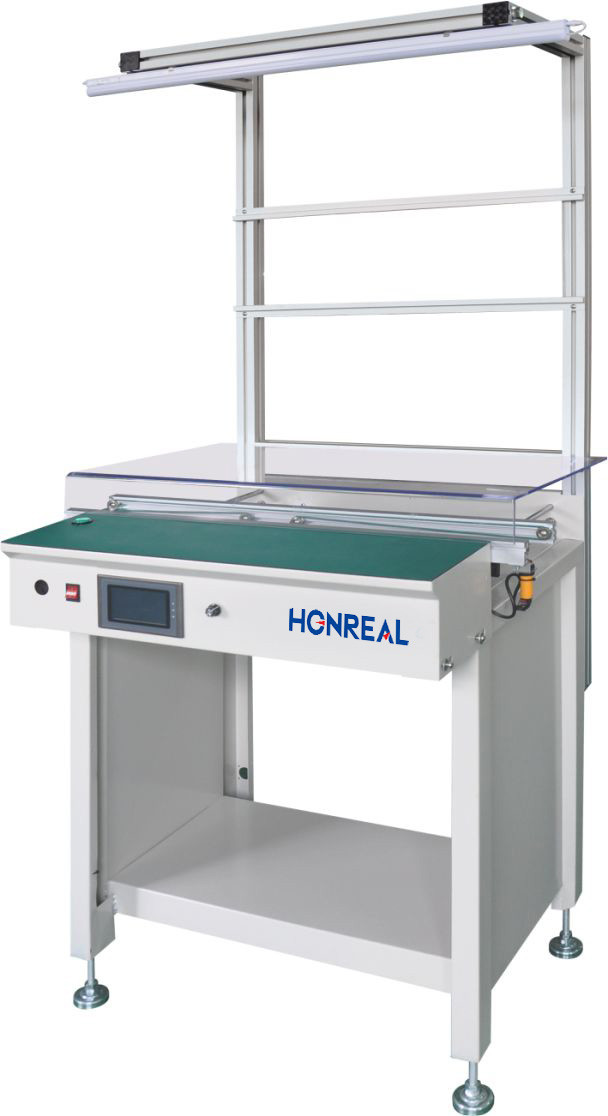

Customizable PCB Handling Conveyors for SMT Assembly Line

1
MOQ
Negotiable
Price
Customizable PCB Handling Conveyors for SMT Assembly Line
Features Gallery Product Description Request A Quote
Features
Specifications
Application: PCB Assembly
Product Name: PCB Handling Conveyors
Length: Customizable
Width: Customizable
Warranty: 1 Year
Power Supply: 100-230V AC(customized) Single Phase, MAX 100V/A
Highlight:

Electronic Assembly PCB Handling Conveyors

,

0.5m PCB Handling Conveyors

,

SMT Inspection Conveyor 1.0m
Basic Infomation
Place of Origin: China
Brand Name: Honreal
Model Number: HR-1200
Payment & Shipping Terms
Packaging Details: Export wooden box packaging
Delivery Time: 5-7days
Payment Terms: T/T，,Western Union,MoneyGram
Product Description

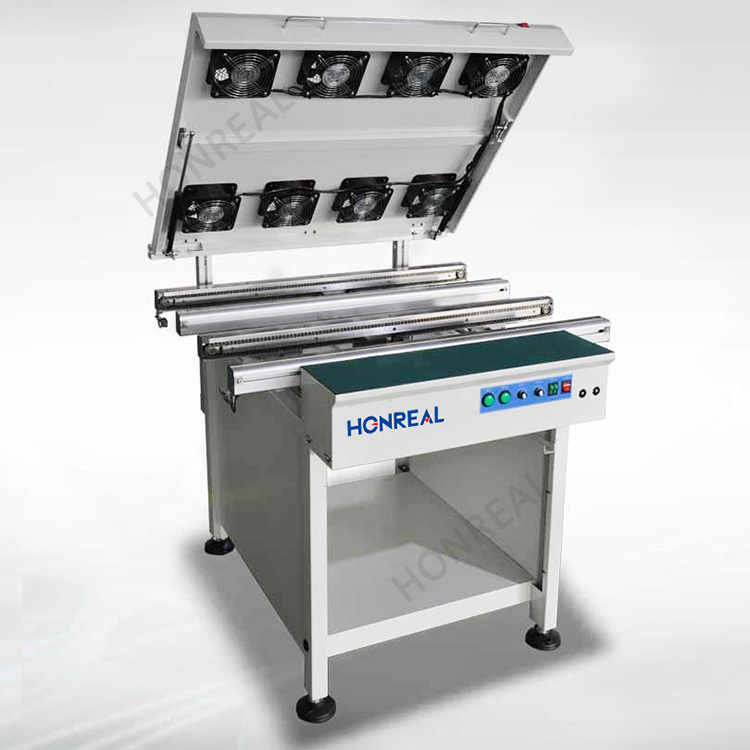

Electronic Assembly Line Connect SMT Handling Conveyors PCB Cooling Conveyor 0.5m 1.0m
Product Attributes
Attribute Value
Application PCB Assembly
Product Name PCB Handling Conveyors
Length Customizable
Width Customizable
Warranty 1 Year
Power supply 100-230V AC(customized) single phase, MAX 100V/A
Product Description
PCB Handling Equipment SMT Inspection Conveyors 0.5m 1.0m Conveyor Electronic Assembly Conveyor

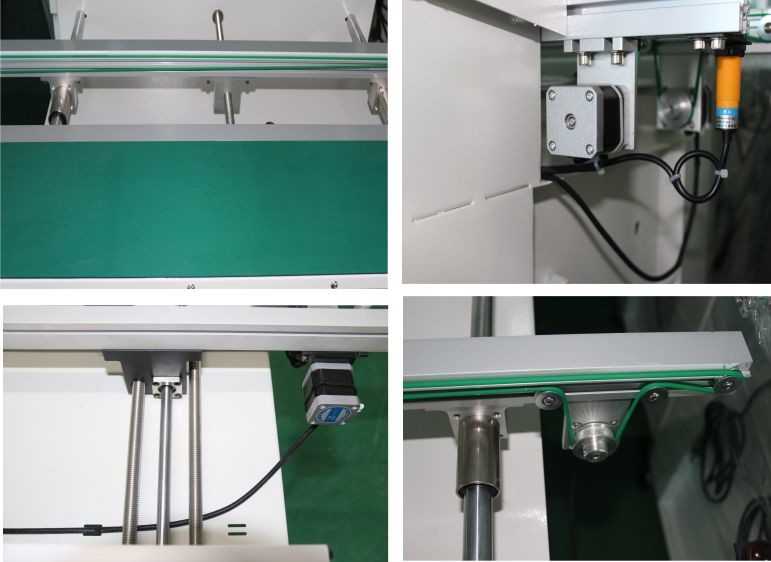

Product Features
  • Steel frame with static painted surface
  • Balance weight design improves stability
  • Optional pass/inspection working mode
  • Smooth and parallel width adjustment (leadscrew)
  • Customizable stopping PCB number based on customer requirements
  • Variable speed control
  • SMEMA port compatible
Technical Parameters
Feature Specification
Function Used for the connection between the line
PCB thickness Min 0.6mm
Transport direction Left to right/right to left (optional)
Transport height 900±20mm (or customized)
Power supply 100-230V AC (customized) single phase, MAX 100V/A
Specifications
Model No HR-1200 HR-1200D
PCB size(L×W)～(L×W)mm (50x50)～(450x350) (50x50)～(550x460)
Machine size (L×W×H)mm 1000×700×910 1000×800×910
Weight 50kg 70kg
