Electronic Assembly PCB Handling Conveyors , SMT Inspection Conveyor 0.5m 1.0m

1
MOQ
Negotiable
Price
Electronic Assembly PCB Handling Conveyors , SMT Inspection Conveyor 0.5m 1.0m
Features Gallery Product Description Request A Quote
Features
Specifications
Application: PCB Assembly
Product Name: PCB Handling Conveyors
Length: Customizable
Width: Customizable
Warranty: 1 Year
Power Supply: 100-230V AC(customized) Single Phase, MAX 100V/A
Highlight:

Electronic Assembly PCB Handling Conveyors

,

0.5m PCB Handling Conveyors

,

SMT Inspection Conveyor 1.0m
Basic Infomation
Place of Origin: China
Brand Name: Honreal
Model Number: HR-1200
Payment & Shipping Terms
Packaging Details: Export wooden box packaging
Delivery Time: 5-7days
Payment Terms: T/T，, Western Union, MoneyGram
Product Description

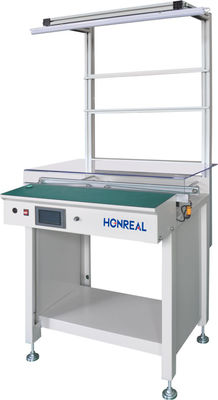

PCB Handling Equipment SMT Inspection Conveyors 0.5m 1.0m Conveyor Electronic Assembly Conveyor

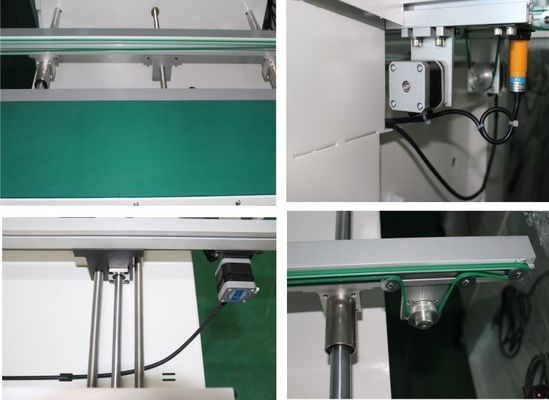

Product introduction:
Steel frame, static painted surface;
Balance weight design improve the stability;
Optional pass/inspection working mode;
Smooth and parallel width adjustment(leadscrew);
According the customer’s damand to customize the stoping PCB number;
Variable speed control;
SMEMA port is compatible;


Technical parameters
Function This equipment is used for the connection between the line
PCB thickness Min0.6mm
Transport direction Left to right/right to left(optional)
Transport height 900±20mm(or customized)
Power supply 100-230V AC(customized) single phase, MAX 100V/A



Specifications
Model No HR-1200 HR-1200D
PCB size(L×W)～(L×W)mm (50x50)～(450x350) (50x50)～(550x460)
Machine size (L×W×H)mm 1000×700×910 1000×800×910
Weight 50kg 70kg
