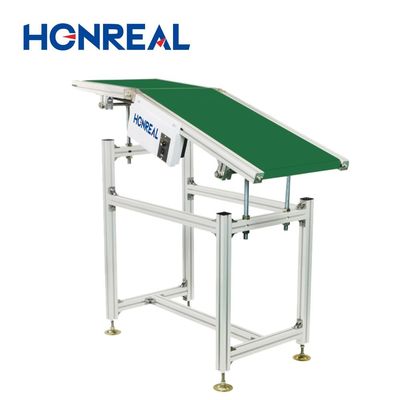

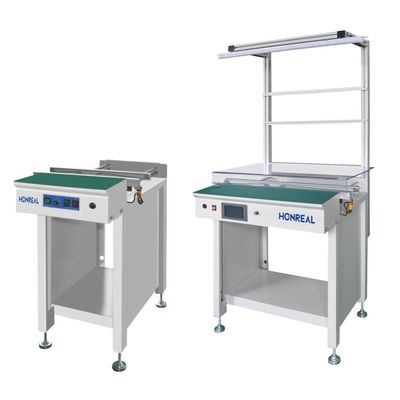

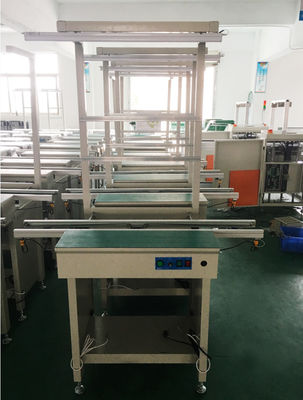

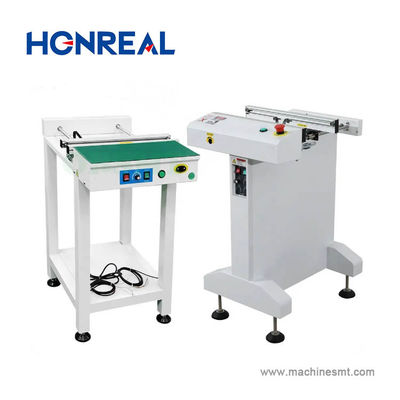

Electronic assembly conveyor PCB Handing conveyor smt transportation conveyor 0.5/1.0/1.5/2.0m
Product introduction:
1.Steel frame, static painted surface;
2.Bottom weighted design improves running stability.
3.Reject,inspection,pass,three mode optional;
4.Smooth and parallel width adjustment(leadscrew);
5.According the customer’s damand to customize the stopping PCB number;
7.Variable speed control;
8.SMEMA port is compatible;
Application:
Used for smt equipment linking, visual inspection, manual assembly, and PCB buffering functions.
|
Technical parameters |
|
|
Function |
This equipment is used for the connection between the line |
|
PCB thickness |
Min0.6mm |
|
Transport direction |
Left to right/right to left(optional) |
|
Transport height |
900±20mm(or customized) |
|
Power supply |
100-230V AC(customized) single phase, MAX 100V/A |
|
Specifications |
||
|
Model No |
HR-1200 |
HR-1200D |
|
PCB size(L×W)～(L×W)mm |
(50x50)～(350x250) |
(50x50)～(500x350) |
|
Machine size (L×W×H)mm |
1000×900×910 |
1000×1100×910 |
|
Weight |
70kg |
85kg |
Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
FAQ:
Q: How do you guarantee the quality of your sales?
A: We ensure the quality of our products through rigorous testing before delivery. Every set of machines undergoes thorough testing to ensure excellent performance and reliability.
Q: How is the training process?
A: After purchasing our machines, your engineers can visit our company for training. Alternatively, we provide comprehensive training materials, including training videos and user manuals, which make it easy to learn and operate the machines. The user manual will be provided along with the machine.
Q: Can I have my logo on the product?
A: Yes, we offer customized logo services free of charge. Please let us know your requirements, and we will ensure your logo is incorporated onto the product.
Q: Are the machines difficult to use?
A: No, the machines are designed to be user-friendly. Previous clients have found that it takes a maximum of two days to learn how to operate the machines effectively.
