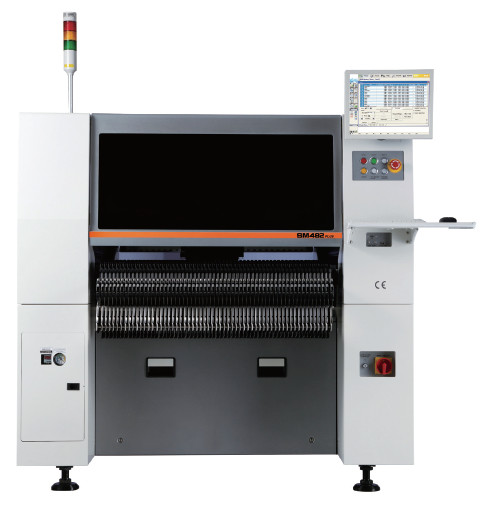

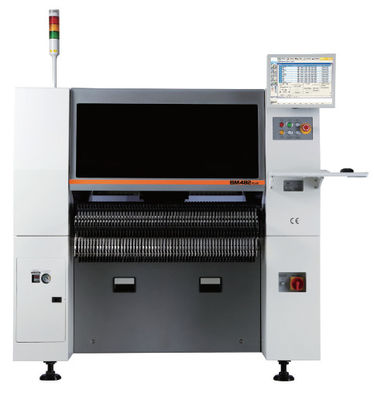

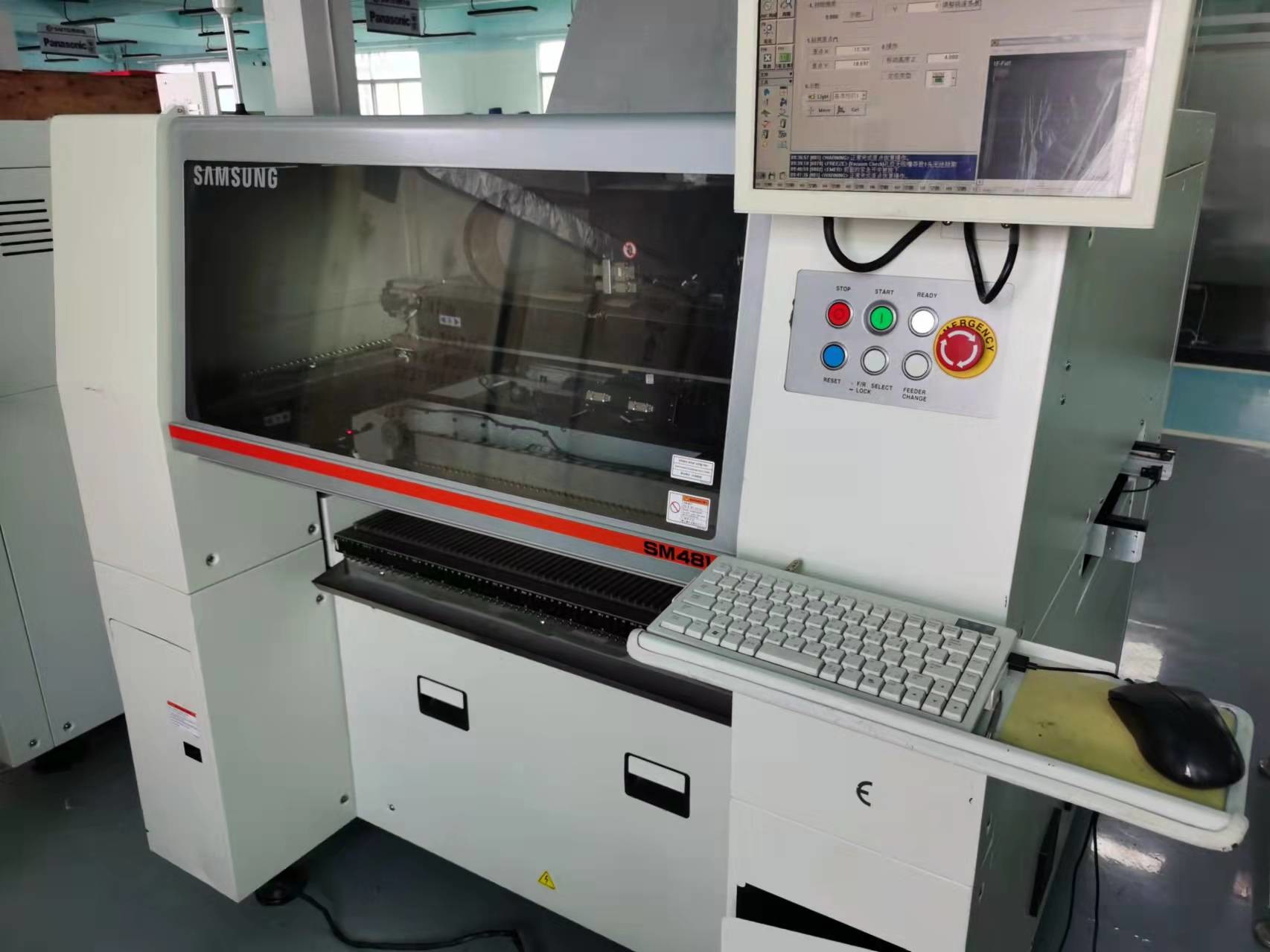

Second Hand PCB SMT Hanwha Samsung Pick And Place Machine High Speed Automatic
Description:
Samsung Sm321; SM421, SM471, SM481,SM482,SM481Plus,SM482Plus
in very good work condition
Located in Shenzhen, China
SM481 Specification
■ 38,000 CPH(Optimum)
■ 1 Gantry x 10 Spindles/Head
■ Applicable part: 0402 ~ □42mm(H 15mm)
■ Applicable PCB: 460(L) x 400(W)(Standard)
Max. 740(L) x 460(W)(Option)
■ High speed, high precision and electrically driven feeder
– Automatic pick-up position alignment function
– Compatible with SM pneumatic feeders
■ New vacuum system and optimized pickup/placement motion SMART Feeder
– World’s first Auto Splicing and Auto Loading
ADVANCED HIGH SPEED FLEXIBLE MOUNTER
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 38,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and □42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
Shenzhen Honreal Technology Co.,Ltd is a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Having experienced technical team and excellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Packing:
