1.5m Semi Automatic SMT Stencil Printer Solder Paste For Industrial

1set
MOQ
Negotiable
Price
1.5m Semi Automatic SMT Stencil Printer Solder Paste For Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Printing Table Sizes: 400x1550 Mm
Steel Mesh Size: (370x470)~(550x1750)
Printing Position Fixed: PCB Outer Or Pin Positioning
Bedplate Fine-tuning: Front/Back±10mm R/L±10mm
Printing Precision: ±0.02mm
Machine Size: 1960×760×1700mm
High Light:

SMT Stencil Printer Solder Paste

,

Semi Automatic SMT Stencil Printer

,

1.5m solder paste stencil printer

Basic Infomation
Place of Origin: China
Brand Name: HONREAL
Certification: CE ISO
Model Number: HR-1068C
Payment & Shipping Terms
Packaging Details: Woodencase
Delivery Time: 5-15Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Product Description

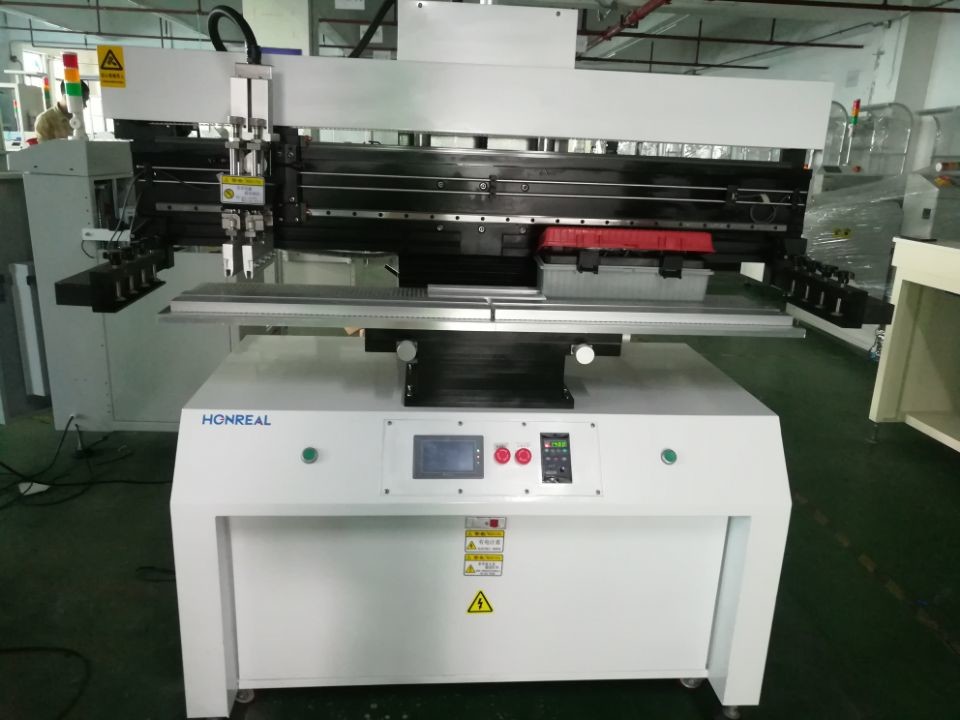

1.5m Semi Automatic Solder Paste Screen Printer SMT Stencil Machine

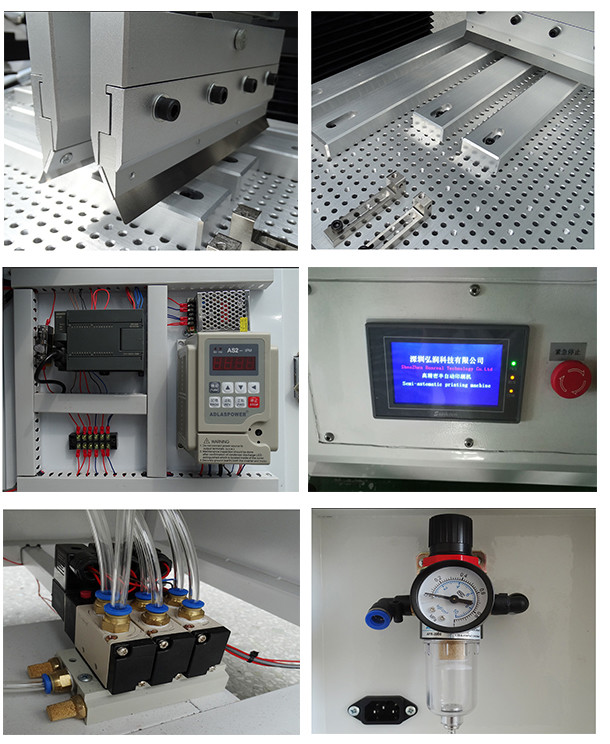

Product introduction:


1.This machine uses high-quality speed control motor and linear guide rail and other precision accessories assembled, so that the scraper head printing smoother.

2. Double-scrapers printing pressure can be adjusted by the up/down cylinder throttle valve, the lifting speed can adjust effectively avoid resonance
3. The printing head can be turned up 450 and fixed lock, convenient scraper loading and unloading and steel mesh cleaning, easy to operate.
4. The printing head can be fixed after many directions, fixed convenient steel mesh in place, effectively ensuring the printing effect.
5. The altitude of double-scraper of the printing head can be adjusted by adjusting the nut freely, so that the force between the scraper and the steel mesh can be controlled.
6. The level of spacing between the printing table plate and the steel mesh, the adjustment of the scale of the precision spinner, and the scale number display.
7. The robot arm moving range can be freely adjusted by the proximity switch, suitable for the requirements of different specifications of steel mesh.
8. The printing table plate has high density snail bee hole with the use of thimble and positioning needle, free positioning, simple operation, quick replacement, and suitable for single-sided substrate and double-sided substrate production work.
9. Electrical components using a microcomputer PLC combined with touch screen control, free choice of single or multiple printing and manual, semi-automatic and other modes.



Technical parameters

Function


This unit is used to print solder paste onto PCB board
Printing table sizes 300×400mm(or customized)
The frame size 370×470mm,420×520mm,550×650mm
PCB size 50x50~300×400mm
PCB thickness 0.2 - 5.0mm
Printing position fixed PCB Outer Or Pin Positioning
Bedplate fine-tuning Front/Back±10mm R/L±10mm
Printing precision ±0.02mm
Repetitive precision ±0.05mm
Minimum spacing 0.35mm
Air pressure 4-6Kgf/Cm2
Power supply 220V 50/60Hz 100W



Specifications

Model No


HR-1068 HR-1068A HR-1068B HR-1068C
PCB size (L×W)~(L×W)mm (50x50)~(300x400) (50x50)~(300x600) (50x50)~(300x1200) (50x50)~(300x1500)
Steel mesh size (L×W)mm~(L×W)mm (370x470~(550x650) (370x470)~(550x850) (370x470~(550x1450) (370x470)~(550x1750)
Printing table sizes (L×W)mm 300×400 300×650 300×1250 400×1550
Machine size (L×W×H)mm 860×760×1700 1060×760×1700 1660×760×1700 1960×760×1700
Weight 260kg 300kg 340kg 380kg

 1.5m Semi Automatic SMT Stencil Printer Solder Paste For Industrial 0
 1.5m Semi Automatic SMT Stencil Printer Solder Paste For Industrial 1

1.5m Semi Automatic SMT Stencil Printer Solder Paste For Industrial 2

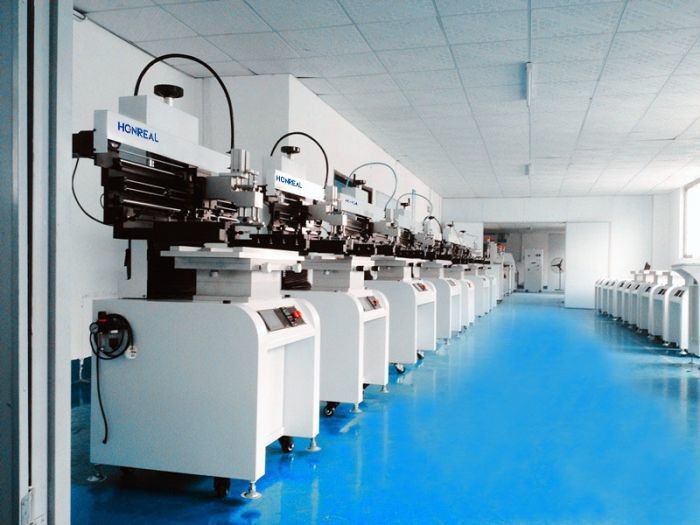

Who We Are ?
