Small Mini Wave Soldering Machine Smt Equipment Dip Soldering Machine

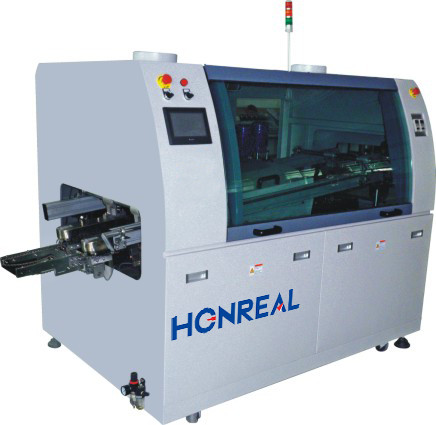

HR-200 Wave Soldering Machine
STD: Front Panel On/Off Controlled ; OPT:Touch Screen Controlled
¤ Suitable For Low Component Density Products/Low Process Criteria/Lead Contented Products
¤ SMC Pneumatic Cylinder Driven Fluxer Spray Head Transverse
¤ 1 Infrared Preheater
¤ Modulized Preheater Structure, Convenient For Maintenance
¤ Mitsubishi PLC+PID Closed Loop Controlled
¤ SUS 316L Solder Pot
¤ Manual Solder Pot Up/Down & Roll In/Out
¤ Varies Type Solder Fingers Available
¤ Inclination Of 4-7° Adjustable
¤ Auto Finger Cleaner
¤ Crossflow Natural Air Cooling
¤ STD: Front Panel On/Off Controlled ; OPT: Touch Screen Controlled
|
Model |
HR-200 Panel Control |
HR-200 Touch Screen |
|
Machine dimension |
L2550×w1350×H1550mm |
L2550×W1350×H1550mm |
|
Weight |
600kg |
|
|
Color |
Computer grey |
|
|
General |
|
|
|
Main control |
Panel button control |
Touch panel control |
|
Preheaters |
1 |
|
|
Cooling zone |
1 |
|
|
Cooling down slope gradient |
Natural Air Cooled :3-4° C/sec |
|
|
Exhaust requirement |
≥3m'/sec×2 |
|
|
Compressed air requirement |
>4kg/cm2 |
|
|
Power requirement |
3 Phase 5 Cables 38oVac 50/60 Hz |
|
|
Startup consumption |
≤17kw |
|
|
Steady consumption |
≤6kw |
|
|
Ramp up time |
Pre-Heat : Approx 15min Solder Pot:Approx 70min |
|
|
Temperature setpoint |
Pre-Heat: Room Temp-200° C Solder Pot : Room Temp-300° C |
|
|
Temperature control |
PID Closed Loop Controlled |
|
|
Temperature accuracy |
±1℃ |
|
|
Temperature across deviation |
±2℃ |
|
|
Hot air flow |
Approx 50CFM |
|
|
Process Width |
50-250mm |
|
|
Process Height |
750mm±30mm |
|
|
Conveyor speed |
0-1800mm/min |
|
|
Product clearance |
Reference To Finger Grooves; TopsSide ≥100mm;Underneath≥15mm |
|
|
Fluxer |
|
|
|
Spray head transverse |
SMG Pneumatic cy linder driving |
|
|
Molecular size |
20-40 microns |
|
|
Flux nozzle diameter |
1.3mm |
|
|
Flux capacity |
20 liters |
|
|
Solder pot |
|
|
|
Pot capacity |
250kg |
|
|
Pot material |
Stainless steel 316L |
|
|
Wave displacement |
Between Chip & Lambda 36mm |
|
|
Dross amount |
0.19-0.21kg/hr |
|
Deatails:
Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting differentcustomer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.
Our Services
Services and commitments
Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.
In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation, commissioning and training of technical personnel for the buyer sold the equipment.
We provide long-term technical support, Our company has adequate supply of consumable buyer if requested to order spare parts, our company can provide timely.
Certification
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company or it is so easy to operate
the machine according the training video and user manual,the user manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
