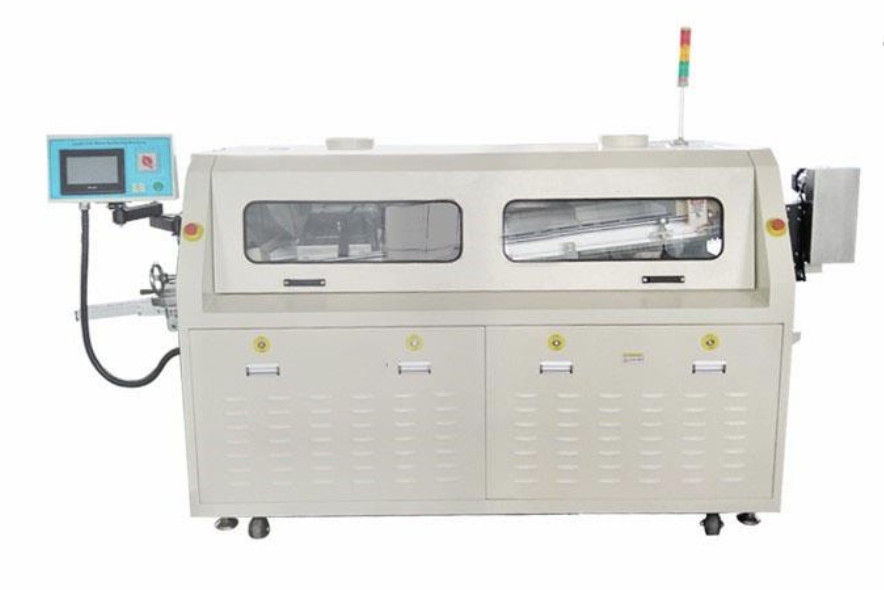

PCB wave soldering machine HR-300E:
1. PLC and touchscreen controlling system which can save more than 50 sets parameters.
User-frienly interface is easy to be operated,temperature can be set/saved/modified in touchscreen.
2.The high quality sprayer provides perfect atomization performance of the flux.It is driven by stepper
motor and rail / slider, moving speed set on touchscreen, stepper driver and PLC control system make a
smooth and low noisy movement.
3. Forced air convection preheat zone creates enough uniform heat for the PCB.Specially designed
preheating system makes maintenance easier,motor and blower can be dismantled easily from
bottom,heater can be move out from rear side like drawer.
4. Adopt cast iron heater for the solder pot, its mounted outside of the solder pot. This new assembling
way prolongs the lifetime of the solder pot.
5. Dual wave solder pot. Both wave heights are controlled invidually by transducer. Changing the wave
height via adjusting the frequency of wave motor´s power supply in touchscreen.
6. Solder pot is made of Ti material, 100% capable for the lead-free solder.
7. Customer can set on and off time of machine with weekly timer.
8. Light&Sound alarm for overheating and emergency stop.
9. Ti finger conveyor system, be able to form an in-line through-hole soldering line.
10.Customer can choose "L" finger for pallet, or dual hook finger for pcb.
11. N2 optional for the solder pot
| HR-300E - Specifications | |
| Model | HR-300E |
|
PCB width |
50-400MM |
| Solder pot capacity | 250kg |
| Running power/general power | 9-10KW/18KW |
| Dimension | 2900(L)*1150(W)*1350(H) |
| Net weight | 800KG |
| Controlling system | Touchscreen + PLC |
| Conveyor motor | 3Ph 220V ,90W |
| Conveyor speed | 200MM-1800MM/Min |
| Flux capacity | 6.5 liter |
| Alcohol capacity | 4.5 liter |
| PCB Conveyor direction | Left to right |
| Spray method | stepper motor drive,linear rail and slider moving sprayer |
| Sprayer | Japan ST-6 |
| Preheating zone | 1 individual bottom preheating zone |
| Preheating power | 7.5kw/zone |
| Solder pot material | Fully Ti |
| Solder pot heater | Cast iron |
| Heater power | 1.2KW*7PCS |
| Wave number | dual waves |
| Wave type | Turbulence first wave and Lambda 2nd wave |
| Melting time | 60 minutes |
| Solder pot lift up&down | Manual |
| Solder pot in&out | Motorized |
| Finger cleaning pump | 1PH 220V 10W |
| Finger type | Dual hook |
| Finger material | Ti |
| Solder angle | 5-7° |
| Air supply | 3-5BAR |
| Power supply | 3PH 380V 50HZ |

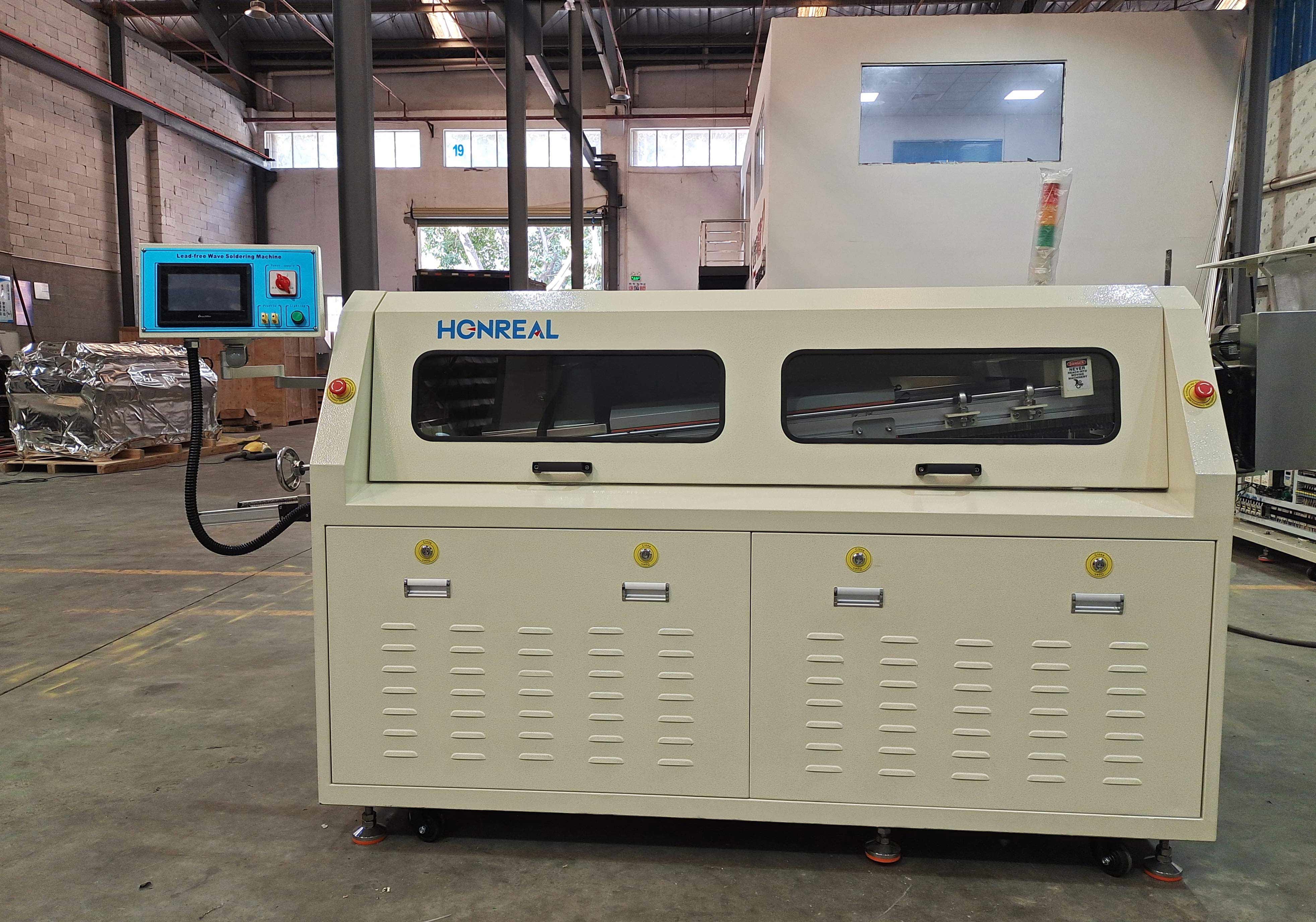

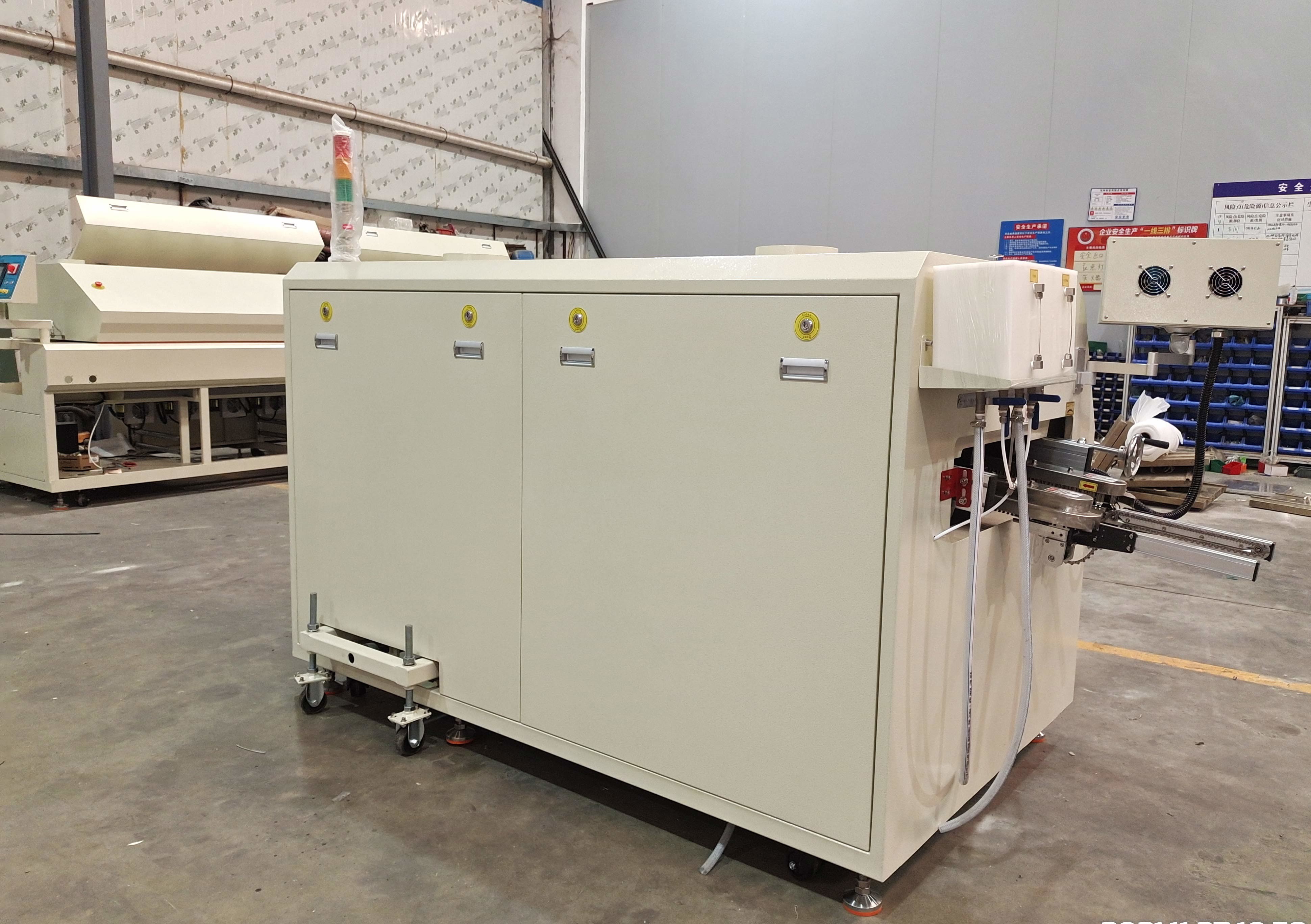

Photo Show:
Work environment and conditions:
1. The equipment shall be placed in ventilated and dry workshop of flat floor;
2. The temperature of work environment shall be within 5～45℃;
3. Stable power supply (well grounded by ground lead) with rated current shall be equipped, and its voltage is recorded in the nameplate;
Before powering on, check that:
1. Supplied power is rated power of the machine or not.
2. The machine is well grounded or not;
3. All electric components are fixed or not, the contact is great or not, and then connect each power cable of controller system.
